Round Thumb Nuts - Knurl
5000 Series

Go To Hex Thumb Nuts
Back To Thumb Nuts Page

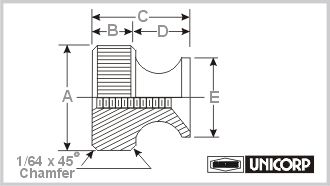

*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number 		A
Ref.		 B
+ .015  - .015		 C
Ref.		 D
+ .010  - .010		 E
+ .031  - .031		 Thread
THN5001 0.250 0.125 0.250 0.125 0.187 2- 56
THN5002 0.313 0.125 0.250 0.125 0.250 4- 40
THN5003 0.375 0.125 0.281 0.156 0.343 6- 32
THN5004 0.437 0.125 0.281 0.156 0.375 8- 32
THN5005 0.500 0.156 0.343 0.187 0.406 10- 24
THN5006 0.500 0.156 0.343 0.187 0.406 10- 32
THN5007 0.562 0.156 0.375 0.218 0.468 1/4- 20
THN5008 0.625 0.187 0.406 0.218 0.531 5/16- 18
THN5009 0.750 0.218 0.468 0.250 0.625 3/8- 16
