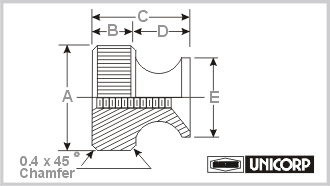

Metric Round Thumb Nuts - Knurl M5000 Series  Go To Metric Hex Thumb Nuts Back To Metric Thumb Nuts Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||||
 |
|||||||||
|
CHOOSE and write down your PART NUMBER then Go to  Skip Step 1 |
|||||||||
|
Part Number |
A Ref. |
B + 0.5 - 0.5 |
C Ref. |
D + 0.5 - 0.5 |
E + 0.5 - 0.5 |
Thread | |||
| MTHN5001 | 6 | 3 | 6 | 3 | 5 | M2.5 x 0.45 | |||
| MTHN5002 | 8 | 3 | 6 | 3 | 6 | M3 x 0.5 | |||
| MTHN5003 | 10 | 3 | 7 | 4 | 9 | M3.5 x 0.6 | |||
| MTHN5004 | 10 | 3 | 7 | 4 | 9 | M4 x 0.7 | |||
| MTHN5005 | 13 | 4 | 9 | 5 | 11 | M5 x 0.8 | |||
| MTHN5006 | 13 | 4 | 9 | 5 | 12 | M6 x 1 | |||
| MTHN5007 | 19 | 6 | 12 | 6 | 16 | M8 x 1.25 | |||
 |
 |
||||||||
|
