.145 Metric Insulating Washers (Shoulder)

Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
.145 Inside Diameter - For Size M3.5 Fasteners
*Chart 1

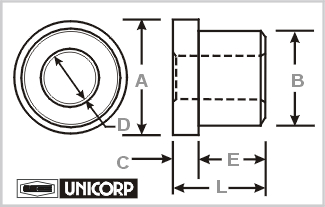

 Use Chart Below For Dimension E Only (Length of Shoulder) - See Drawing Above
For
Dimension E
Only		 A
1mm
.039		 B
2mm
.078		 C
3mm
.118		 D
4mm
.157		 E
5mm
.196		 F
6mm
.236		 G
7mm
.275		 H
8mm
.315		 J
9mm
.354		 K
10mm
.393		 M
11mm
.433		 R
12mm
.472		 S
13mm
.511

Chart 2
Use Chart Below For All The Other Shoulder Washer Dimensions - (For Dimension E - Use Chart 1)
Part
Number		 A B C D *E Length
of Shoulder		 L Part
Number		 A B C D *E Length
of Shoulder		 L
MWS1150 7 4.7 0.8 3.7 Use
Chart 1		 L=C+E MWS1168 10 4.7 0.8 3.7 Use
Chart 1		 L=C+E
MWS1151 7 4.7 1.2 3.7 MWS1169 10 4.7 1.2 3.7
MWS1152 7 4.7 1.6 3.7 MWS1170 10 4.7 1.6 3.7
MWS1153 7 5.5 0.8 3.7 Use
Chart 1		 L=C+E MWS1171 10 5.5 0.8 3.7 Use
Chart 1		 L=C+E
MWS1154 7 5.5 1.2 3.7 MWS1172 10 5.5 1.2 3.7
MWS1155 7 5.5 1.6 3.7 MWS1173 10 5.5 1.6 3.7
MWS1156 8 4.7 0.8 3.7 Use
Chart 1		 L=C+E MWS1174 10 6.2 0.8 3.7 Use
Chart 1		 L=C+E
MWS1157 8 4.7 1.2 3.7 MWS1175 10 6.2 1.2 3.7
MWS1158 8 4.7 1.6 3.7 MWS1176 10 6.2 1.6 3.7
MWS1159 8 5.5 0.8 3.7 Use
Chart 1		 L=C+E MWS1177 10 7.1 0.8 3.7 Use
Chart 1		 L=C+E
MWS1160 8 5.5 1.2 3.7 MWS1178 10 7.1 1.2 3.7
MWS1161 8 5.5 1.6 3.7 MWS1179 10 7.1 1.6 3.7
MWS1162 8 6.2 0.8 3.7 Use
Chart 1		 L=C+E MWS1180 10 7.9 0.8 3.7 Use
Chart 1		 L=C+E
MWS1163 8 6.2 1.2 3.7 MWS1181 10 7.9 1.2 3.7
MWS1164 8 6.2 1.6 3.7 MWS1182 10 7.9 1.6 3.7
MWS1165 8 7.1 0.8 3.7 Use
Chart 1		 L=C+E
MWS1166 8 7.1 1.2 3.7
MWS1167 8 7.1 1.6 3.7

Tolerances
A Major Diameters ± 0.15
B Shank Diameters +0.00 / - 0.15
C Thickness of Head ± 0.15
D Inside Diameters + 0.17 / - 0.00
E Length of Shoulder ± 0.15
L Overall Length +0.26 / - 0.15
