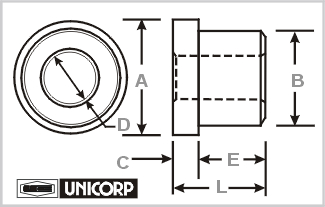

.330 Metric Insulating Washers (Shoulder) ![]() Back To Insulating Washers Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||||||||
![]() |
|||||||||||||
CHOOSE and write down your PART NUMBER then Go to ![]() |
|||||||||||||
.330 Inside Diameter - For Size M8 Fasteners | |||||||||||||
*Chart 1 Use Chart Below For Dimension E Only (Length of Shoulder) - See Drawing Above |
|||||||||||||
For Dimension E Only |
A 1mm .039 |
B 2mm .078 |
C 3mm .118 |
D 4mm .157 |
E 5mm .196 |
F 6mm .236 |
G 7mm .275 |
H 8mm .315 |
J 9mm .354 |
K 10mm .393 |
M 11mm .433 |
R 12mm .472 |
S 13mm .511 |
Chart 2 Use Chart Below For All The Other Shoulder Washer Dimensions - (For Dimension E - Use Chart 1) |
|||||||||||||
Part Number |
A | B | C | D |
*E Length of Shoulder |
L |
Part Number |
A | B | C | D |
*E Length of Shoulder |
L |
MWS1401 | 13 | 11 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1428 | 16 | 14 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1402 | 13 | 11 | 1.2 | 8.4 | MWS1429 | 16 | 14 | 1.2 | 8.4 | ||||
MWS1403 | 13 | 11 | 1.6 | 8.4 | MWS1430 | 16 | 14 | 1.6 | 8.4 | ||||
MWS1404 | 14 | 11 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1431 | 19 | 10 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1405 | 14 | 11 | 1.2 | 8.4 | MWS1432 | 19 | 10 | 1.2 | 8.4 | ||||
MWS1406 | 14 | 11 | 1.6 | 8.4 | MWS1433 | 19 | 10 | 1.6 | 8.4 | ||||
MWS1407 | 14 | 12 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1434 | 19 | 11 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1408 | 14 | 12 | 1.2 | 8.4 | MWS1435 | 19 | 11 | 1.2 | 8.4 | ||||
MWS1409 | 14 | 12 | 1.6 | 8.4 | MWS1436 | 19 | 11 | 1.6 | 8.4 | ||||
MWS1410 | 15 | 11 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1437 | 19 | 12 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1411 | 15 | 11 | 1.2 | 8.4 | MWS1438 | 19 | 12 | 1.2 | 8.4 | ||||
MWS1412 | 15 | 11 | 1.6 | 8.4 | MWS1439 | 19 | 12 | 1.6 | 8.4 | ||||
MWS1413 | 15 | 12 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1440 | 19 | 13 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1414 | 15 | 12 | 1.2 | 8.4 | MWS1441 | 19 | 13 | 1.2 | 8.4 | ||||
MWS1415 | 15 | 12 | 1.6 | 8.4 | MWS1442 | 19 | 13 | 1.6 | 8.4 | ||||
MWS1416 | 15 | 13 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1443 | 19 | 14 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1417 | 15 | 13 | 1.2 | 8.4 | MWS1444 | 19 | 14 | 1.2 | 8.4 | ||||
MWS1418 | 15 | 13 | 1.6 | 8.4 | MWS1445 | 19 | 14 | 1.6 | 8.4 | ||||
MWS1419 | 16 | 11 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1446 | 19 | 15 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1420 | 16 | 11 | 1.2 | 8.4 | MWS1447 | 19 | 15 | 1.2 | 8.4 | ||||
MWS1421 | 16 | 11 | 1.6 | 8.4 | MWS1448 | 19 | 15 | 1.6 | 8.4 | ||||
MWS1422 | 16 | 12 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1449 | 19 | 16 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1423 | 16 | 12 | 1.2 | 8.4 | MWS1450 | 19 | 16 | 1.2 | 8.4 | ||||
MWS1424 | 16 | 12 | 1.6 | 8.4 | MWS1451 | 19 | 16 | 1.6 | 8.4 | ||||
MWS1425 | 16 | 13 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E | MWS1452 | 19 | 17 | 0.8 | 8.4 |
Use Chart 1 |
L=C+E |
MWS1426 | 16 | 13 | 1.2 | 8.4 | MWS1453 | 19 | 17 | 1.2 | 8.4 | ||||
MWS1427 | 16 | 13 | 1.6 | 8.4 | MWS1454 | 19 | 17 | 1.6 | 8.4 | ||||
Tolerances | |||||||||||||
A | Major Diameters | ± 0.15 | |||||||||||
B | Shank Diameters | + 0.00 / - 0.15 | |||||||||||
C | Thickness of Head | ± 0.15 | |||||||||||
D | Inside Diameters | + 0.17 / - 0.00 | |||||||||||
E | Length of Shoulder | ± 0.15 | |||||||||||
L | Overall Length | + 0.26 / - 0.15 | |||||||||||
![]() |
![]() |
||||||||||||
