.074 Metric Insulating Washers (Shoulder)

Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
.074 Inside Diameter - For Size M1.6 Fasteners
*Chart 1

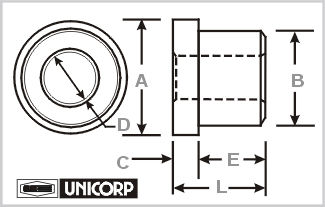

 Use Chart Below For Dimension E Only (Length of Shoulder) - See Drawing Above
For
Dimension E
Only		 A
1mm
.039		 B
2mm
.078		 C
3mm
.118		 D
4mm
.157		 E
5mm
.196		 F
6mm
.236		 G
7mm
.275		 H
8mm
.315		 J
9mm
.354		 K
10mm
.393		 M
11mm
.433		 R
12mm
.472		 S
13mm
.511

Chart 2
Use Chart Below For All The Other Shoulder Washer Dimensions - (For Dimension E - Use Chart 1)
Part
Number		 A B C D *E Length
of Shoulder		 L Part
Number		 A B C D *E Length
of Shoulder		 L
MWS1001 4 3.1 0.4 1.9 Use
Chart 1		 L=C+E MWS1003 4 3.3 0.4 1.9 Use
Chart 1		 L=C+E
MWS1002 4 3.1 0.8 1.9 Use
Chart 1		 L=C+E MWS1004 4 3.3 0.8 1.9 Use
Chart 1		 L=C+E

Tolerances
A Major Diameters ± 0.15
B Shank Diameters + 0.00 / - 0.15
C Thickness of Head ± 0.15
D Inside Diameters + 0.17 / -0.00
E Length of Shoulder ± 0.15
L Overall Length + 0.26 / -0.15
