.252 Metric Insulating Washers (Flat) ![]() Back To Insulating Washers Page *Slightly Chamfered to Permit Smooth Entry / Fit. |
|||||||||||
![]() |
|||||||||||
CHOOSE and write down your PART NUMBER then Go to ![]() |
|||||||||||
.252 Inside Diameter - For Size M6 Fasteners | |||||||||||
Part Number |

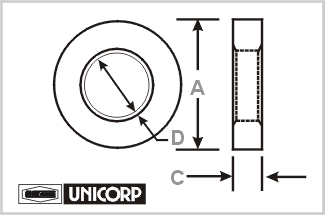

A | C | D |
Part Number |
A | C | D |
Part Number |
A | C | D |
MWF3351 | 10 | 0.4 | 6.4 | MWF3366 | 13 | 0.4 | 6.4 | MWF3381 | 16 | 0.4 | 6.4 |
MWF3352 | 10 | 0.8 | 6.4 | MWF3367 | 13 | 0.8 | 6.4 | MWF3382 | 16 | 0.8 | 6.4 |
MWF3353 | 10 | 1.2 | 6.4 | MWF3368 | 13 | 1.2 | 6.4 | MWF3383 | 16 | 1.2 | 6.4 |
MWF3354 | 10 | 1.6 | 6.4 | MWF3369 | 13 | 1.6 | 6.4 | MWF3384 | 16 | 1.6 | 6.4 |
MWF3355 | 10 | 2.4 | 6.4 | MWF3370 | 13 | 2.4 | 6.4 | MWF3385 | 16 | 2.4 | 6.4 |
MWF3356 | 11 | 0.4 | 6.4 | MWF3371 | 14 | 0.4 | 6.4 | MWF3386 | 18 | 0.4 | 6.4 |
MWF3357 | 11 | 0.8 | 6.4 | MWF3372 | 14 | 0.8 | 6.4 | MWF3387 | 18 | 0.8 | 6.4 |
MWF3358 | 11 | 1.2 | 6.4 | MWF3373 | 14 | 1.2 | 6.4 | MWF3388 | 18 | 1.2 | 6.4 |
MWF3359 | 11 | 1.6 | 6.4 | MWF3374 | 14 | 1.6 | 6.4 | MWF3389 | 18 | 1.6 | 6.4 |
MWF3360 | 11 | 2.4 | 6.4 | MWF3375 | 14 | 2.4 | 6.4 | MWF3390 | 18 | 2.4 | 6.4 |
MWF3361 | 12 | 0.4 | 6.4 | MWF3376 | 15 | 0.4 | 6.4 | MWF3391 | 19 | 0.4 | 6.4 |
MWF3362 | 12 | 0.8 | 6.4 | MWF3377 | 15 | 0.8 | 6.4 | MWF3392 | 19 | 0.8 | 6.4 |
MWF3363 | 12 | 1.2 | 6.4 | MWF3378 | 15 | 1.2 | 6.4 | MWF3393 | 19 | 1.2 | 6.4 |
MWF3364 | 12 | 1.6 | 6.4 | MWF3379 | 15 | 1.6 | 6.4 | MWF3394 | 19 | 1.6 | 6.4 |
MWF3365 | 12 | 2.4 | 6.4 | MWF3380 | 15 | 2.4 | 6.4 | MWF3395 | 19 | 2.4 | 6.4 |
Tolerances | |||||||||||
A | Major Diameter | + 0.26 / - 0.15 | |||||||||
C | Thickness |
.4 through 1.6 ± .16 1.7 through 2.4 ± .23 |
|||||||||
D | Inside Diameter | + .26 / - .00 | |||||||||
![]() |
![]() |
||||||||||
