Metric 8mm Male-Male Standoffs

Back To Male-Male Standoffs Page

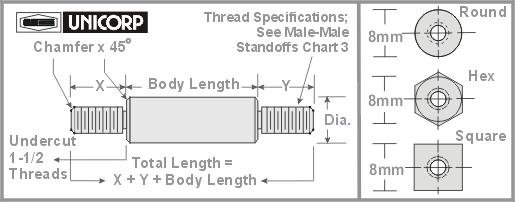

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1601 3 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1651 31 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1602 3.5 8 MMX1652 32 8
MMX1603 4 8 MMX1653 33 8
MMX1604 4.5 8 MMX1654 34 8
MMX1605 5 8 MMX1655 35 8
MMX1606 5.5 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1656 36 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1607 6 8 MMX1657 37 8
MMX1608 6.5 8 MMX1658 38 8
MMX1609 7 8 MMX1659 39 8
MMX1610 7.5 8 MMX1660 40 8
MMX1611 8 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1661 41 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1612 8.5 8 MMX1662 42 8
MMX1613 9 8 MMX1663 43 8
MMX1614 9.5 8 MMX1664 44 8
MMX1615 10 8 MMX1665 45 8
MMX1616 10.5 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1666 46 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1617 11 8 MMX1667 47 8
MMX1618 11.5 8 MMX1668 48 8
MMX1619 12 8 MMX1669 49 8
MMX1620 12.5 8 MMX1670 50 8
MMX1621 13 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1671 51 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1622 13.5 8 MMX1672 52 8
MMX1623 14 8 MMX1673 53 8
MMX1624 14.5 8 MMX1674 54 8
MMX1625 15 8 MMX1675 55 8
MMX1626 15.5 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1676 56 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1627 16 8 MMX1677 57 8
MMX1628 16.5 8 MMX1678 58 8
MMX1629 17 8 MMX1679 59 8
MMX1630 17.5 8 MMX1680 60 8
MMX1631 18 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1681 62 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1632 18.5 8 MMX1682 64 8
MMX1633 19 8 MMX1683 66 8
MMX1634 19.5 8 MMX1684 68 8
MMX1635 20 8 MMX1685 70 8
MMX1636 20.5 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1686 72 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1637 21 8 MMX1687 74 8
MMX1638 21.5 8 MMX1688 75 8
MMX1639 22 8 MMX1689 77 8
MMX1640 22.5 8 MMX1690 80 8
MMX1641 23 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1691 82 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1642 23.5 8 MMX1692 85 8
MMX1643 24 8 MMX1693 87 8
MMX1644 24.5 8 MMX1694 90 8
MMX1645 25 8 MMX1695 92 8
MMX1646 26 8 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1696 95 8 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1647 27 8 MMX1697 97 8
MMX1648 28 8 MMX1698 100 8
MMX1649 29 8
MMX1650 30 8


Thread Size

Thread Code &  Thread Length Thread Chart for Metric Male-Male Standoffs Part Number
 * Mix and Match Different Threads and Lengths For Each Part.
M3 x 0.5  M3 - 1 5
M3 x 0.5  M3 - 2 6
M3.5 x 0.6  M3.5 -1 6
M3.5 x 0.6  M3.5 - 2 6.5
M4 x 0.7  M4 - 1 8.5
M4 x 0.7  M4 - 2 9
M4 x 0.7  M4 - 3 9.5
M5 x 0.8  M5 - 1 9
M5 x 0.8  M5 - 2 9.5
M5 x 0.8  M5 - 3 10
M6 x 1  M6 - 1 11
M6 x 1  M6 - 2 12

Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm  ±  .15mm
Over 100mm to 150mm  ±  .20mm
Over 150mm  ±  .25mm
Thread Length Tolerance is  ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ± .25
Thread Length Tolerance is ± .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
