Metric 4.5mm Male-Male Standoffs

Back To Male-Male Standoffs Page

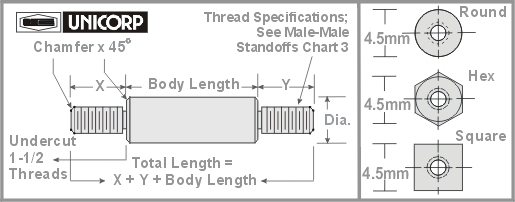

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1301 3 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1334 19.5 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1302 3.5 4.5 MMX1335 20 4.5
MMX1303 4 4.5 MMX1336 20.5 4.5
MMX1304 4.5 4.5 MMX1337 21 4.5
MMX1305 5 4.5 MMX1338 21.5 4.5
MMX1306 5.5 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1339 22 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1307 6 4.5 MMX1340 22.5 4.5
MMX1308 6.5 4.5 MMX1341 23 4.5
MMX1309 7 4.5 MMX1342 23.5 4.5
MMX1310 7.5 4.5 MMX1343 24 4.5
MMX1311 8 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1344 24.5 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1312 8.5 4.5 MMX1345 25 4.5
MMX1313 9 4.5 MMX1346 25.5 4.5
MMX1314 9.5 4.5 MMX1347 26 4.5
MMX1315 10 4.5 MMX1348 26.5 4.5
MMX1316 10.5 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1349 27 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1317 11 4.5 MMX1350 27.5 4.5
MMX1318 11.5 4.5 MMX1351 28 4.5
MMX1319 12 4.5 MMX1352 28.5 4.5
MMX1320 12.5 4.5 MMX1353 29 4.5
MMX1321 13 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1354 29.5 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1322 13.5 4.5 MMX1355 30 4.5
MMX1323 14 4.5 MMX1356 30.5 4.5
MMX1324 14.5 4.5 MMX1357 31 4.5
MMX1325 15 4.5 MMX1358 31.5 4.5
MMX1326 15.5 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1359 32 4.5 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1327 16 4.5 MMX1360 32.5 4.5
MMX1328 16.5 4.5 MMX1361 33 4.5
MMX1329 17 4.5 MMX1362 33.5 4.5
MMX1330 17.5 4.5 MMX1363 34 4.5
MMX1331 18 4.5 MMX1364 34.5 4.5
MMX1332 18.5 4.5 MMX1365 35 4.5
MMX1333 19 4.5


Thread Size

 Thread Code &  Thread Length Thread Chart for Metric Male-Male
Standoffs Part Number

*Mix and Match Different Threads
and Lengths For Each Part.
M2.5 x 0.45  M2.5 - 1 3
M2.5 x 0.45  M2.5 - 2 4
M3 x 0.5  M3 - 1 5
M3 x 0.5  M3 - 2 6
M3.5 x 0.6  M3.5 - 1 6
M3.5 x 0.6  M3.5 - 2 6.5
Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm  ±  .15mm
Over 100mm to 150mm  ±  .20mm
Over 150mm  ±  .25mm
Thread Length Tolerance is  ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .25
Thread Length Tolerance is  ± .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
