Metric 10mm Male-Male Standoffs

Back To Male-Male Standoffs Page

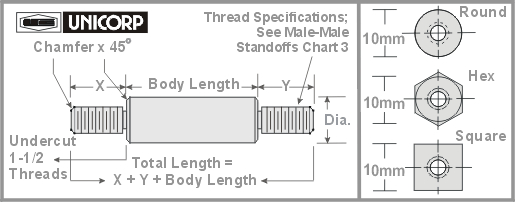

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1701 3 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1751 31 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1702 3.5 10 MMX1752 32 10
MMX1703 4 10 MMX1753 33 10
MMX1704 4.5 10 MMX1754 34 10
MMX1705 5 10 MMX1755 35 10
MMX1706 5.5 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1756 36 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1707 6 10 MMX1757 37 10
MMX1708 6.5 10 MMX1758 38 10
MMX1709 7 10 MMX1759 39 10
MMX1710 7.5 10 MMX1760 40 10
MMX1711 8 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1761 41 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1712 8.5 10 MMX1762 42 10
MMX1713 9 10 MMX1763 43 10
MMX1714 9.5 10 MMX1764 44 10
MMX1715 10 10 MMX1765 45 10
MMX1716 10.5 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1766 46 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1717 11 10 MMX1767 47 10
MMX1718 11.5 10 MMX1768 48 10
MMX1719 12 10 MMX1769 49 10
MMX1720 12.5 10 MMX1770 50 10
MMX1721 13 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1771 51 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1722 13.5 10 MMX1772 52 10
MMX1723 14 10 MMX1773 53 10
MMX1724 14.5 10 MMX1774 54 10
MMX1725 15 10 MMX1775 55 10
MMX1726 15.5 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1776 56 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1727 16 10 MMX1777 57 10
MMX1728 16.5 10 MMX1778 58 10
MMX1729 17 10 MMX1779 59 10
MMX1730 17.5 10 MMX1780 60 10
MMX1731 18 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1781 62 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1732 18.5 10 MMX1782 64 10
MMX1733 19 10 MMX1783 66 10
MMX1734 19.5 10 MMX1784 68 10
MMX1735 20 10 MMX1785 70 10
MMX1736 20.5 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1786 72 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1737 21 10 MMX1787 74 10
MMX1738 21.5 10 MMX1788 75 10
MMX1739 22 10 MMX1789 77 10
MMX1740 22.5 10 MMX1790 80 10
MMX1741 23 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1791 82 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1742 23.5 10 MMX1792 85 10
MMX1743 24 10 MMX1793 87 10
MMX1744 24.5 10 MMX1794 90 10
MMX1745 25 10 MMX1795 92 10
MMX1746 26 10 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1796 95 10 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1747 27 10 MMX1797 97 10
MMX1748 28 10 MMX1798 100 10
MMX1749 29 10
MMX1750 30 10

Thread Size

 Thread Code  &  Thread Length Thread Chart for Metric Male-Male
Standoffs Part Number

* Mix and Match Different Threads and
Lengths For Each Part.
M4 x 0.7 M4 - 1 8.5
M4 x 0.7 M4 - 2 9
M4 x 0.7 M4 - 3 9.5
M5 x 0.8 M5 - 1 9
M5 x 0.8 M5 - 2 9.5
M5 x 0.8 M5 - 3 10
M6 x 1 M6 - 1 11
M6 x 1 M6 - 2 12
M8 x 1.25 M8 - 1 12
M8 x 1.25 M8 - 2 13
Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm ±  .15mm
Over 100mm to 150mm ±  .20mm
Over 150mm ±  .25mm
Thread Length Tolerance is ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ± .25
Thread Length Tolerance is  ±  .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
