Hex Jack Screws
 Male-Female Standoffs
Jack Screw Part Numbers : JAX101 thru JAX110






  JACK SCREWS


   Build Your Part #

    Part Numbers

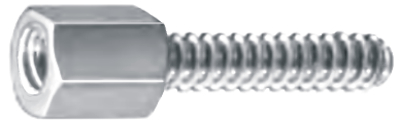

   Material & Shape     3/16" Hex Jack Screws JAX101- JAX110
   Plating & Finishes
   Thread Specs
   All Technical Charts   DIAMETER:  3/16"
   Worksheet Helper   SHAPE:  Hex
   ND Thread Lock Info   MATERIAL:  Brass, Aluminum, Stainless Steel, Carbon Steel
   ND Thread Codes   BODY LENGTH:  3/16" (.187)
   Conversion Chart   EXTERNAL THREAD LENGTH:  Ranging from .187 through .750
   Metric Jack Screws Thread Locking Products available.
   Male/ Female Standoffs   FINISH:  Available in 26 finishes- See Chart
    THREAD:  4-40 Internal Thread- Class UNC 2B /  4-40 External Thread- Class UNC 2A. Thread Locking Products available.
    TOLERANCE:  Body Length:  ± .005 /  External Thread Length ±  .015
Diameter: Standard commercial bar stock tolerances.
All Jackscrews are shipped unassembled with 2- #4 flat washers,
1- #4 lock washer and 1- 4-40 nut.
    UNICORP PRODUCTS USED IN:  • Security  • Camera Systems •  Medical •  Telecommunication •  Computer •  PCB mounting •  PC/104 Modules •  Circuit Board Assembly •  Industrial Equipment •  Robotic •  Electronic •  Military •  Government •  Aerospace •  Airline •  Marine •  Entertainment •  Exhibits •  Signs •  Food Supply •  Vending Machine •  Instrumentation •  Commercial •  Fabrication •  Construction •  Wire and Cable & Many Other Industries.



    Modified Parts or Engineering Assistance:
       We offer your firm engineering and design services for customized or modified parts, at no additional charge.  Please contact our Engineering Department. Contact Us
      Jack Screws in (3/16")(4.5mm & 5mm), D-Type, Hex, in 26 finishes, available in brass, aluminum, stainless steel, carbon steel, length- (3/16) (5mm), X thread length- (.187 thru .750) (5mm thru 19mm). Unicorp manufactures the finest quality Jack Screws Standoffs. Stock in lengths of 1/64 of an inch  increments to eliminate the need for special orders.




    ND® Thread Locking Products:
       Thread locking products can be applied by Unicorp to Male-Female Standoffs, Jack Screws, Male-Male Standoffs, Captive Panel Screws, Thumb Screws and Shoulder Screws. This would also apply in some cases to Standoffs which are internally threaded.
