.126 Insulating Washers (Shoulder)

Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1
.126 Inside Diameter - For Size 5 Fasteners
*Chart 1

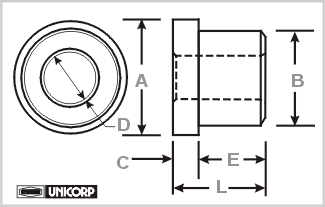

 Use Chart Below For Dimension E Only (Length of Shoulder) - See Drawing Above
For
Dimension E
Only		 A
.015		 B
.025		 C
.040		 E
.058		 F
.085		 G
.120		 H
.182		 J
.215		 K
.245		 M
.300		 R
.360		 S
.425		 V
.490

Chart 2
Use Chart Below For All The Other Shoulder Washer Dimensions - (For Dimension E - Use Chart 1)
Part
Number		 A B C D *E
Length of Shoulder		 L Part
Number		 A B C D *E
Length of Shoulder		 L
WS1201 .250 .185 .031 .126 Use
Chart 1		 L=C+E WS1222 .312 .245 .031 .126 Use
Chart 1		 L=C+E
WS1202 .250 .185 .047 .126 WS1223 312 .245 .047 .126
WS1203 .250 .185 .060 126 WS1224 .312 .245 .060 .126
WS1204 .250 .215 .031 .126 Use
Chart 1		 L=C+E WS1225 .312 .278 .031 .126 Use
Chart 1		 L=C+E
WS1205 .250 .215 .047 .126 WS1226 .312 .278 .047 .126
WS1206 .250 .215 .060 .126 WS1227 .312 .278 .060 .126
WS1207 .281 .185 .031 .126 Use
Chart 1		 L=C+E WS1228 .375 .185 .031 .126 Use
Chart 1		 L=C+E
WS1208 .281 .185 .047 .126 WS1229 .375 .185 .047 .126
WS1209 .281 .185 .060 .126 WS1230 .375 .185 .060 .126
WS1210 .281 .215 .031 .126 Use
Chart 1		 L=C+E WS1231 .375 .215 .031 .126 Use
Chart 1		 L=C+E
WS1211 .281 .215 .047 .126 WS1232 .375 .215 .047 .126
WS1212 281 .215 .060 .126 WS1233 .375 .215 .060 .126
WS1213 .281 .245 .031 .126 Use
Chart 1		 L=C+E WS1234 .375 .245 .031 .126 Use
Chart 1		 L=C+E
WS1214 .281 .245 .047 .126 WS1235 .375 .245 .047 .126
WS1215 .281 .245 .060 .126 WS1236 .375 .245 .060 .126
WS1216 .312 .185 .031 .126 Use
Chart 1		 L=C+E WS1237 .375 .278 .031 .126 Use
Chart 1		 L=C+E
WS1217 .312 .185 .047 .126 WS1238 .375 .278 .047 .126
WS1218 .312 .185 .060 .126 WS1239 .375 .278 .060 .126
WS1219 .312 .215 .031 .126 Use
Chart 1		 L=C+E WS1240 .375 .310 .031 .126 Use
Chart 1		 L=C+E
WS1220 .312 .215 .047 .126 WS1241 .375 .310 .047 .126
WS1221 .312 .215 .060 .126 WS1242 .375 .310 .060 .126

Tolerances
A Major Diameter ± .005
B Shank Diameter + .000 /  - .005
C Thickness of Head ± .005
D Inside Diameter + .006 /  - .000
E Length of Shoulder ± .005
L Overall Length + .010 /  - .005
