.101 Insulating Washers (Shoulder)

Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1
.101 Inside Diameter - For Size 3 Fasteners
*Chart 1

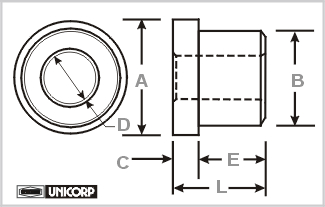

 Use Chart Below For Dimension E Only (Length of Shoulder) - See Drawing Above
For
Dimension E
Only		 A
.015		 B
.025		 C
.040		 E
.058		 F
.085		 G
.120		 H
.182		 J
.215		 K
.245		 M
.300		 R
.360		 S
.425		 V
.490

Chart 2
Use Chart Below For All The Other Shoulder Washer Dimensions - (For Dimension E - Use Chart 1)
Part
Number		 A B C D *E
Length of Shoulder		 L Part
Number		 A B C D *E
Length of Shoulder		 L
WS1101 .281 .152 .031 .101 Use
Chart 1		 L=C+E WS1122 .312 .278 .031 .101 Use
Chart 1		 L=C+E
WS1102 .281 .152 .047 .101 WS1123 .312 .278 .047 .101
WS1103 .281 .152 .060 .101 WS1124 .312 .278 .060 .101
WS1104 .281 .185 .031 .101 Use
Chart 1		 L=C+E WS1125 .375 .185 .031 .101 Use
Chart 1		 L=C+E
WS1105 .281 .185 .047 .101 WS1126 .375 .185 .047 .101
WS1106 .281 .185 .060 .101 WS1127 .375 .185 .060 .101
WS1107 .281 .215 .031 .101 Use
Chart 1		 L=C+E WS1128 .375 .215 .031 .101 Use
Chart 1		 L=C+E
WS1108 .281 .215 .047 .101 WS1129 .375 .215 .047 .101
WS1109 .281 .215 .060 .101 WS1130 .375 .215 .060 .101
WS1110 .281 .245 .031 .101 Use
Chart 1		 L=C+E WS1131 .375 .245 .031 .101 Use
Chart 1		 L=C+E
WS1111 .281 .245 .047 .101 WS1132 .375 .245 .047 .101
WS1112 .281 .245 .060 .101 WS1133 .375 .245 .060 .101
WS1113 .312 .185 .031 .101 Use
Chart 1		 L=C+E WS1134 .375 .278 .031 .101 Use
Chart 1		 L=C+E
WS1114 .312 .185 .047 .101 WS1135 .375 .278 .047 .101
WS1115 .312 .185 .060 .101 WS1136 .375 .278 .060 .101
WS1116 .312 .215 .031 .101 Use
Chart 1		 L=C+E WS1137 .375 .310 .031 .101 Use
Chart 1		 L=C+E
WS1117 .312 .215 .047 .101 WS1138 .375 .310 .047 .101
WS1118 .312 .215 .060 .101 WS1139 .375 .310 .060 .101
WS1119 .312 .245 .031 .101 Use
Chart 1 		 L=C+E
WS1120 .312 .245 .047 .101
WS1121 .312 .245 .060 .101

Tolerances
A Major Diameter ± .005
B Shank Diameter + .000 /  - .005
C Thickness of Head ± .005
D Inside Diameter + .006 /  - .000
E Length of Shoulder ± .005
L Overall Length + .010 /  - .005
