.101 Insulating Washers (Flat)

Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1

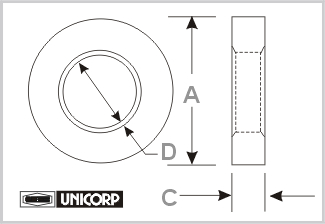

.101 Inside Diameter - For Size 3 Fasteners
Part
Number		 A C D Part
Number		 A C D Part
Number		 A C D
WF3101 .187 .016 .101 WF3113 .281 .016 .101 WF3125 .437 .016 .101
WF3102 .187 .031 .101 WF3114 .281 .031 .101 WF3126 .437 .031 .101
WF3103 .187 .047 .101 WF3115 .281 .047 .101 WF3127 .437 .047 .101
WF3104 .187 .062 .101 WF3116 .281 .062 .101 WF3128 .437 .062 .101
WF3105 .218 .016 .101 WF3117 .312 .016 .101 WF3129 .500 .016 .101
WF3106 .218 .031 .101 WF3118 .312 .031 .101 WF3130 .500 .031 .101
WF3107 .218 .047 .101 WF3119 .312 .047 .101 WF3131 .500 .047 .101
WF3108 .218 .062 .101 WF3120 .312 .062 .101 WF3132 .500 .062 .101
WF3109 .250 .016 .101 WF3121 .375 .016 .101 WF3133 .562 .016 .101
WF3110 .250 .031 .101 WF3122 .375 .031 .101 WF3134 .562 .031 .101
WF3111 .250 .047 .101 WF3123 .375 .047 .101 WF3135 .562 .047 .101
WF3112 .250 .062 .101 WF3124 .375 .062 .101 WF3136 .562 .062 .101

Tolerances
A Major Diameter + .010 / - .005
C Thickness .015  through  .063 ± .003
.064  through  .091 ± .006
.092 up   ± .009
D Inside Diameter + .010 /  - .000
