.063 Insulating Washers (Flat)

Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1

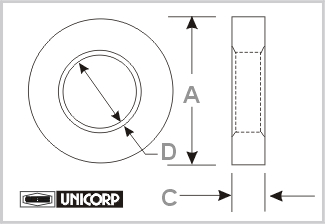

.063 Inside Diameter - For Size 0 Fasteners
Part
Number		 A C D Part
Number		 A C D Part
Number		 A C D
WF3025 .187 .016 .063 WF3030 .218 .031 .063 WF3035 .250 .047 .063
WF3026 .187 .031 .063 WF3031 .218 .047 .063 WF3036 .250 .062 .063
WF3027 .187 .047 .063 WF3032 .218 .062 .063 WF3037 .281 .016 .063
WF3028 .187 .062 .063 WF3033 .250 .016 .063 WF3038 .281 .031 .063
WF3029 .218 .016 .063 WF3034 .250 .031 .063 WF3039 .281 .047 .063
                WF3040 .281 .062 .063

Tolerances
A Major Diameter + .010 / - .005
C Thickness .015  through  .063 ± .003
.064  through  .091 ± .006
.092 up   ± .009
D Inside Diameter + .010 /  - .000
