.055 Insulating Washers (Flat)

 Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1
.055 Inside Diameter - For Size 00 Fasteners
Part

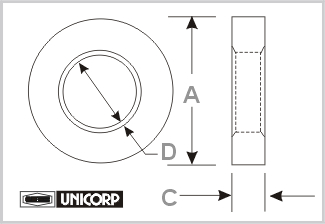

Number		 A C D Part
Number		 A C D Part
Number		 A C D
WF3001 .125 .016 .055 WF3002 .125 .031 .055 WF3003 .125 .047 .055

Tolerances
A Major Diameter + .010 / - .005
C Thickness .015  through  .063 ± .003
.064  through  .091 ± .006
.092 up   ± .009
D Inside Diameter + .010 /  - .000
