5/32" Male-Male Standoffs

Back To Male-Male Standoffs Page

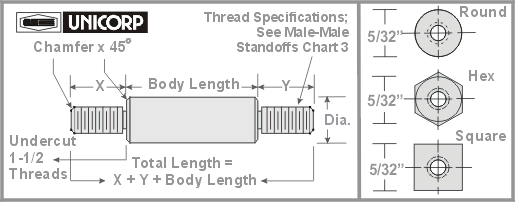

*External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MM1201 .125 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1230 .578 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1202 .140 .156 MM1231 .593 .156
MM1203 .156 .156 MM1232 .609 .156
MM1204 .171 .156 MM1233 .625 .156
MM1205 .187 .156 MM1234 .640 .156
MM1206 .203 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1235 .656 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1207 .218 .156 MM1236 .671 .156
MM1208 .234 .156 MM1237 .687 .156
MM1209 .250 .156 MM1238 .703 .156
MM1210 .265 .156 MM1239 .718 .156
MM1211 .281 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1240 .734 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1212 .296 .156 MM1241 .750 .156
MM1213 .312 .156 MM1242 .765 .156
MM1214 .328 .156 MM1243 .781 .156
MM1215 .343 .156 MM1244 .787 .156
MM1216 .359 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1245 .796 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1217 .375 .156 MM1246 .812 .156
MM1218 .390 .156 MM1247 .828 .156
MM1219 .406 .156 MM1248 .843 .156
MM1220 .421 .156 MM1249 .859 .156
MM1221 .437 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1250 .875 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1222 .453 .156 MM1251 .890 .156
MM1223 .469 .156 MM1252 .906 .156
MM1224 .484 .156 MM1253 .921 .156
MM1225 .500 .156 MM1254 .937 .156
MM1226 .515 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1255 .953 .156 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1227 .531 .156 MM1256 .968 .156
MM1228 .546 .156 MM1257 .984 .156
MM1229 .562 .156 MM1258 1.000 .156


Thread Size

Thread Code  &  Thread Length

    Thread Chart for
Male-Male Standoffs Part Number

   *Mix and Match Different Threads
   and Lengths For Each Part.
2 - 56 256 - 1 .125
2 - 56 256 - 2 .156
2 - 56 256 - 3 .187
4 - 40 440 - 1 .187
4 - 40 440 - 2 .250
Tolerances:  For for Brass, Aluminum, 303 Stainless Steel, 316 Stainless Steel,
Carbon Steel and Titanium
Body Length -  Length up to 6" ±  .005  / over 6" ±  .010
Thread Length Tolerance is  ±  .005

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .010
Thread Length Tolerance is  ±  .010

Diameter: Standard commercial bar stock tolerances.
*No undercut Nylon & Delrin®
