5/16" Male-Female Standoffs

Back To Male-Female Standoffs Page

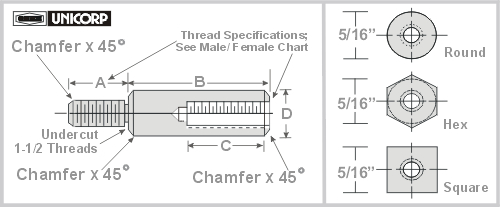

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter
1550 .187 .312 1591 1.469 .312 1632 2.750 .312
1551 .218 .312 1592 1.500 .312 1633 2.781 .312
1552 .250 .312 1593 1.531 .312 1634 2.812 .312
1553 .281 .312 1594 1.562 .312 1635 2.843 .312
1554 .312 312 1595 1.593 .312 1636 2.875 .312
1555 .343 .312 1596 1.625 .312 1637 2.906 .312
1556 .375 .312 1597 1.656 .312 1638 2.937 .312
1557 .406 .312 1598 1.687 .312 1639 2.969 .312
1558 .437 .312 1599 1.718 .312 1640 3.000 .312
1559 .469 .312 1600 1.750 .312 1641 3.062 .312
1560 .500 .312 1601 1.781 .312 1642 3.125 .312
1561 .531 .312 1602 1.812 .312 1643 3.187 .312
1562 .562 .312 1603 1.843 .312 1644 3.250 .312
1563 .593 .312 1604 1.875 .312 1645 3.312 .312
1564 .625 .312 1605 1.906 .312 1646 3.375 .312
1565 .656 .312 1606 1.937 .312 1647 3.437 .312
1566 .687 .312 1607 1.969 .312 1648 3.500 .312
1567 .718 .312 1608 2.000 .312 1649 3.562 .312
1568 .750 .312 1609 2.031 .312 1650 3.625 .312
1569 .781 .312 1610 2.062 .312 1651 3.687 .312
1570 .812 .312 1611 2.093 .312 1652 3.750 .312
Part
Number		 B
Length		 D
Dia.		 Part
Number		 B
Length		 D
Dia.		 Part
Number		 B
Length		 D
Dia.
1571 .843 .312 1612 2.125 .312 1653 3.812 .312
1572 .875 .312 1613 2.156 .312 1654 3.875 .312
1573 .906 .312 1614 2.187 .312 1655 3.937 .312
1574 .937 .312 1615 2.218 .312 1656 4.000 .312
1575 .969 .312 1616 2.250 .312 1657 4.062 .312
1576 1.000 .312 1617 2.281 .312 1658 4.125 .312
1577 1.031 .312 1618 2.312 .312 1659 4.187 .312
1578 1.062 .312 1619 2.343 .312 1660 4.250 .312
1579 1.093 .312 1620 2.375 .312 1661 4.312 .312
1580 1.125 .312 1621 2.406 .312 1662 4.375 .312
1581 1.156 .312 1622 2.437 .312 1663 4.437 .312
1582 1.187 .312 1623 2.469 .312 1664 4.500 .312
1583 1.218 .312 1624 2.500 .312 1665 4.562 .312
1584 1.250 .312 1625 2.531 .312 1666 4.625 .312
1585 1.281 .312 1626 2.562 .312 1667 4.687 .312
1586 1.312 .312 1627 2.593 .312 1668 4.750 .312
1587 1.343 .312 1628 2.625 .312 1669 4.812 .312
1588 1.375 .312 1629 2.656 .312 1670 4.875 .312
1589 1.406 .312 1630 2.687 .312 1671 4.937 .312
1590 1.437 .312 1631 2.718 .312 1672 5.000 .312
TOLERANCES:
B-  Length up to   4"  ±  .005
4" to  6"  ±  .008
Over  6"  ±  .010
C-  Length will be adjusted where B dimensions
will not permit full thread depth
Diameter: Standard commercial
bar stock tolerances.
*No undercut Nylon & Delrin®
