3/16" Male-Male Standoffs

Back To Male-Male Standoffs Page

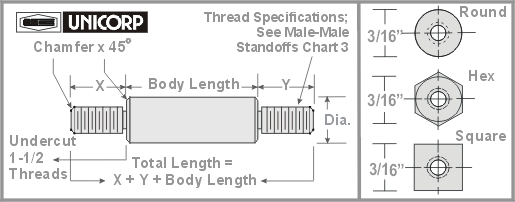

*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MM1301 .125 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1338 .703 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1302 .140 .187 MM1339 .718 .187
MM1303 .156 .187 MM1340 .734 .187
MM1304 .171 .187 MM1341 .750 .187
MM1305 .187 .187 MM1342 .765 .187
MM1306 .203 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1343 .781 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1307 .218 .187 MM1344 .787 .187
MM1308 .234 .187 MM1345 .796 .187
MM1309 .250 .187 MM1346 .812 .187
MM1310 .265 .187 MM1347 .828 .187
MM1311 .281 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1348 .843 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1312 .296 .187 MM1349 .859 .187
MM1313 .312 .187 MM1350 .875 .187
MM1314 .328 .187 MM1351 .890 .187
MM1315 .343 .187 MM1352 .906 .187
MM1316 .359 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1353 .921 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1317 .375 .187 MM1354 .937 .187
MM1318 .390 .187 MM1355 .953 .187
MM1319 .406 .187 MM1356 .968 .187
MM1320 .421 .187 MM1357 .984 .187
MM1321 .437 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1358 1.000 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1322 .453 .187 MM1359 1.031 .187
MM1323 .469 .187 MM1360 1.062 .187
MM1324 .484 .187 MM1361 1.093 .187
MM1325 .500 .187 MM1362 1.125 .187
MM1326 .515 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1363 1.156 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1327 .531 .187 MM1364 1.187 .187
MM1328 .546 .187 MM1365 1.218 .187
MM1329 .562 .187 MM1366 1.250 .187
MM1330 .578 .187 MM1367 1.281 .187
MM1331 .593 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1368 1.312 .187 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1332 .609 .187 MM1369 1.343 .187
MM1333 .625 .187 MM1370 1.375 .187
MM1334 .640 .187 MM1371 1.406 .187
MM1335 .656 .187 MM1372 1.437 .187
MM1336 .671 .187 MM1373 1.469 .187
MM1337 .687 .187 MM1374 1.500 .187


Thread Size

Thread Code &  Thread Length

 Thread Chart for
Male-Male Standoffs Part Number

*Mix and Match Different Threads
and Lengths For Each Part.
2 - 56  256 - 1 .125
2 - 56  256 - 2 .156
2 - 56  256 - 3 .187
4 - 40  440 - 1 .187
4 - 40  440 - 2 .250
6 - 32  632 - 1 .250
6 - 32  632 - 2 .375

Tolerances:  For for Brass, Aluminum, 303 Stainless Steel, 316 Stainless Steel,
Carbon Steel and Titanium
Body Length-  Length up to 6" ±  .005  /  over 6" ±  .010
Thread Length Tolerance is  ±  .005

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .010
Thread Length Tolerance is  ±  .010

Diameter: Standard commercial bar stock tolerances.
*No undercut Nylon & Delrin®
