1/8" Male-Male Standoffs

Back To Male-Male Standoffs Page

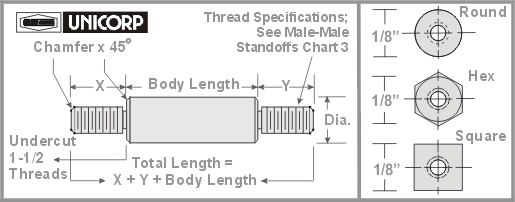

*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number
B
Body
Length
D
Diameter
Thread
X
Thread
Y
Part
Number
B
Body
Length
D
Diameter
Thread
X
Thread
Y
MM1101 .125 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1130 .578 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1102 .140 .125 MM1131 .593 .125
MM1103 .156 .125 MM1132 .609 .125
MM1104 .171 .125 MM1133 .625 .125
MM1105 .187 .125 MM1134 .640 .125
MM1106 .203 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1135 .656 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1107 .218 .125 MM1136 .671 .125
MM1108 .234 .125 MM1137 .687 .125
MM1109 .250 .125 MM1138 .703 .125
MM1110 .265 .125 MM1139 .718 .125
MM1111 .281 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1140 .734 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1112 .296 .125 MM1141 .750 .125
MM1113 .312 .125 MM1142 .765 .125
MM1114 .328 .125 MM1143 .781 .125
MM1115 .343 .125 MM1144 .787 .125
MM1116 .359 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1145 .796 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1117 .375 .125 MM1146 .812 .125
MM1118 .390 .125 MM1147 .828 .125
MM1119 .406 .125 MM1148 .843 .125
MM1120 .421 .125 MM1149 .859 .125
MM1121 .437 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1150 .875 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1122 .453 .125 MM1151 .890 .125
MM1123 .469 .125 MM1152 .906 .125
MM1124 .484 .125 MM1153 .921 .125
MM1125 .500 .125 MM1154 .937 .125
MM1126 .515 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1155 .953 .125 See
Thread
Chart
Below
See
Thread
Chart
Below
MM1127 .531 .125 MM1156 .968 .125
MM1128 .546 .125 MM1157 .984 .125
MM1129 .562 .125 MM1158 1.000 .125


Thread Size

Thread Code  &  Thread Length

   Thread Chart for
Male-Male Standoffs Part
Number


*Mix and Match Different Threads
   and Lengths For Each Part.
2 - 56 256 - 1 .125
2 - 56 256 - 2 .156
2 - 56 256 - 3 .187
Tolerances:  For for Brass, Aluminum, 303 Stainless Steel, 316 Stainless Steel,
Carbon Steel and Titanium
Body Length -  Length up to 6"  ±  .005  /  over 6"  ±  .010
Thread Length Tolerance is  ±  .005

Tolerances:  For Nylon & Delrin®
Body Length -  For all Lengths the Tolerance is  ±  .010
Thread Length Tolerance is  ±  .010

Diameter: Standard commercial bar stock tolerances.
*No undercut Nylon & Delrin®
