1/8" Male-Female Standoffs

Back To Male-Female Standoffs Page

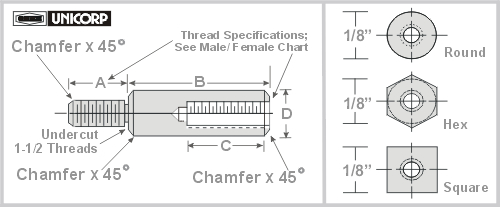

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1
Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter		 Part
Number		 B
Length		 D
Diameter
1101 .125 .125 1111 .437 .125 1121 .750 .125
1102 .156 .125 1112 .469 .125 1122 .781 .125
1103 .187 .125 1113 .500 .125 1123 .812 .125
1104 .218 .125 1114 .531 .125 1124 .843 .125
1105 .250 .125 1115 .562 .125 1125 .875 .125
1106 .281 .125 1116 .593 .125 1126 .906 .125
1107 .312 .125 1117 .625 .125 1127 .937 .125
1108 .343 .125 1118 .656 .125 1128 .969 .125
1109 .375 .125 1119 .687 .125 1129 1.000 .125
1110 .406 .125 1120 .718 .125
TOLERANCES:
B-  Length up to  4"  ±  .005
4" to  6"  ±  .008
Over  6"  ±  .010
C-  Length will be adjusted where B dimensions
will not permit full thread depth
Diameter: Standard commercial
bar stock tolerances.
*No undercut Nylon & Delrin®
