1/4" Male-Male Standoffs

Back To Male-Male Standoffs Page

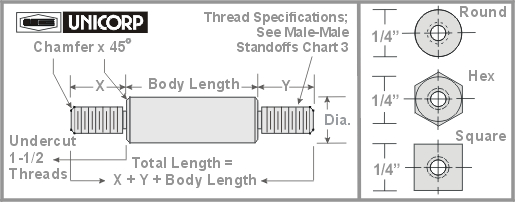

*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MM1401 .125 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1454 .937 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1402 .140 .250 MM1455 .953 .250
MM1403 .156 .250 MM1456 .968 .250
MM1404 .171 .250 MM1457 .984 .250
MM1405 .187 .250 MM1458 1.000 .250
MM1406 .203 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1459 1.031 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1407 .218 .250 MM1460 1.062 .250
MM1408 .234 .250 MM1461 1.093 .250
MM1409 .250 .250 MM1462 1.125 .250
MM1410 .265 .250 MM1463 1.156 .250
MM1411 .281 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1464 1.187 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1412 .296 .250 MM1465 1.218 .250
MM1413 .312 .250 MM1466 1.250 .250
MM1414 .328 .250 MM1467 1.281 .250
MM1415 .343 .250 MM1468 1.312 .250
MM1416 .359 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1469 1.343 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1417 .375 .250 MM1470 1.375 .250
MM1418 .390 .250 MM1471 1.406 .250
MM1419 .406 .250 MM1472 1.437 .250
MM1420 .421 .250 MM1473 1.469 .250
MM1421 .437 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1474 1.500 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1422 .453 .250 MM1475 1.531 .250
MM1423 .469 .250 MM1476 1.564 .250
MM1424 .484 .250 MM1477 1.593 .250
MM1425 .500 .250 MM1478 1.625 .250
MM1426 .515 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1479 1.656 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1427 .531 .250 MM1480 1.687 .250
MM1428 .546 .250 MM1481 1.718 .250
MM1429 .562 .250 MM1482 1.750 .250
MM1430 .578 .250 MM1483 1.781 .250
MM1431 .593 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1484 1.812 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1432 .609 .250 MM1485 1.843 .250
MM1433 .625 .250 MM1486 1.875 .250
MM1434 .640 .250 MM1487 1.906 .250
MM1435 .656 .250 MM1488 1.937 .250
MM1436 .671 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1489 1.969 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1437 .687 .250 MM1490 2.000 .250
MM1438 .703 .250 MM1491 2.062 .250
MM1439 .718 .250 MM1492 2.125 .250
MM1440 .734 .250 MM1493 2.187 .250
MM1441 .750 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1494 2.250 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1442 .765 .250 MM1495 2.312 .250
MM1443 .781 .250 MM1496 2.375 .250
MM1444 .787 .250 MM1497 2.437 .250
MM1445 .796 .250 MM1498 2.500 .250
MM1446 .812 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MM1499 2.562 .250 See
Thread
Chart
Below		 See
Thread
Chart
Below
MM1447 .828 .250 MM1500 2.625 .250
MM1448 .843 .250 MM1501 2.687 .250
MM1449 .859 .250 MM1502 2.750 .250
MM1450 .875 .250 MM1503 2.812 .250
MM1451 .890 .250 MM1504 2.875 .250
MM1452 .906 .250 MM1505 2.937 .250
MM1453 .921 .250 MM1506 3.000 .250

Thread Size

Thread Code  &  Thread Length

 Thread Chart for Male-Male Standoffs
Part
Number

*Mix and Match Different Threads and
Lengths For Each Part.
4 - 40  440 - 1 .187
4 - 40  440 - 2 .250
6 - 32  632 - 1 .250
6 - 32 632 - 2 .375
8 - 32 832 - 1 .375
8 - 32 832 - 2 .437
10 - 24 1024 - 1 .375
10 - 24 1024 - 2 .500
10 - 32 1032 - 1 .375
10 - 32 1032 - 2 .500
Tolerances:  For for Brass, Aluminum, 303 Stainless Steel, 316 Stainless Steel,
Carbon Steel and Titanium
Body Length -  Length up to 6" ±  .005  /  over 6" ±  .010
Thread Length Tolerance is  ±  .005

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .010
Thread Length Tolerance is  ±  .010

Diameter: Standard commercial bar stock tolerances.
*No undercut Nylon & Delrin®
