Metric Hex Socket Head (Broached) Shoulder Screws
10mm Head Diameter
Available in 303 Stainless Steel with or without plating

Back To Shoulder Screws Page

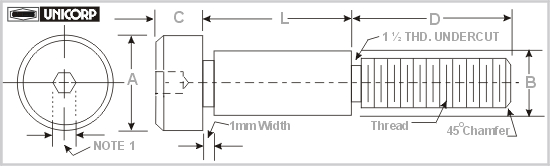

*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
303 Stainless Steel

    Part Number

 A B C D L Thread
   MSCB393- 1 10 6 5 6.3 6 M5 x 0.8
   MSCB393- 2 10 6 5 6.3 7 M5 x 0.8
   MSCB393- 3 10 6 5 6.3 8 M5 x 0.8
   MSCB393- 4 10 6 5 6.3 9 M5 x 0.8
   MSCB393- 5 10 6 5 6.3 10 M5 x 0.8
   MSCB393- 6 10 6 5 6.3 11 M5 x 0.8
   MSCB393- 7 10 6 5 6.3 12 M5 x 0.8
   MSCB393- 8 10 6 5 6.3 13 M5 x 0.8
   MSCB393- 9 10 6 5 6.3 14 M5 x 0.8
   MSCB393- 10 10 6 5 6.3 15 M5 x 0.8
   MSCB393- 11 10 6 5 6.3 16 M5 x 0.8
   MSCB393- 12 10 6 5 6.3 17 M5 x 0.8
   MSCB393- 13 10 6 5 6.3 19 M5 x 0.8
   MSCB393- 14 10 6 5 6.3 22 M5 x 0.8
   MSCB393- 15 10 6 5 6.3 25 M5 x 0.8
Applicable Tolerances
B C L
+ .000  / - .026   ±.015       ± .015
Applicable Specifications
Stainless Steel Passivate Threads
QQ- S- 763, Class 303, Cond. A. Per Mil-F-14072-A
(EL) E 300 		Class 6G per handbook
H.28, Part 1
Hex Socket Head (Broach) Information
Thread Hex Socket Head (Broach)
M3 x 0.5 2 Across the Flats
M3.5 x 0.6 2 Across the Flats
M4 x 0.7 3 Across the Flats
M5 x 0.8 3 Across the Flats
M6 x 1 4 Across the Flats
M8 x 1 5 Across the Flats
Standard in Type 303 Stainless Steel. Other materials available on special order.

For all other Bondhus® products email us at sales@unicorpinc.com for quote.

Metric Short & Long Arm L-Wrench
Hex Keys

Metric Short Arm L-Wrench Hex Key
Bondhus Part# Detail Description Unicorp Price per Pack
12252 2mm Hex L-wrench - Short Arm- 49mm long (10 pack) 2.84
12256 3mm Hex L-wrench - Short Arm- 61mm long (10 pack) 3.05
12260 4mm Hex L-wrench - Short Arm- 68mm long (10 pack) 3.00
12264 5mm Hex L-wrench - Short Arm-78mm long (5 pack) 1.90

Metric Long Arm L-Wrench Hex Key
Bondhus Part# Detail Description Unicorp Price per Pack
12152 2mm Hex L-wrench - Long Arm- 82mm long (10 pack) 3.60
12156 3mm Hex L-wrench - Long Arm- 98mm long (10 pack) 4.30
12160 4mm Hex L-wrench - Long Arm- 110mm long (10 pack) 5.00
12164 5mm Hex L-wrench - Long Arm- 119mm long (5 pack) 3.75

Metric Ball End Long Arm L-Wrench Hex Key
Bondhus Part# Detail Description Unicorp Price per Pack
10952 2mm Ball End L-wrench - Long Arm- 82mm long (10 pack) 10.40
10956 3mm Ball End L-wrench - Long Arm- 98mm long (10 pack) 10.60
10960 4mm Ball End L-wrench - Long Arm- 110mm long (10 pack) 12.60
10964 5mm Ball End L-wrench - Long Arm- 119mm long (5 pack) 6.88
