Metric 8mm Male-Female Standoffs (Threaded)
Back To Male-Female Standoffs Page

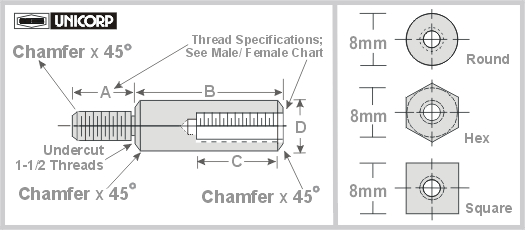

*External Thread has a 45 °Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 Length
B		 Part
Number		 Length
B		 Part
Number		 Length
B		 Part
Number		 Length
B		 Part
Number		 Length
B
MMF2101 5 MMF2145 27 MMF2189 49 MMF2233 71 MMF2277 93
MMF2102 5.5 MMF2146 27.5 MMF2190 49.5 MMF2234 71.5 MMF2278 93.5
MMF2103 6 MMF2147 28 MMF2191 50 MMF2235 72 MMF2279 94
MMF2104 6.5 MMF2148 28.5 MMF2192 50.5 MMF2236 72.5 MMF2280 94.5
MMF2105 7 MMF2149 29 MMF2193 51 MMF2237 73 MMF2281 95
MMF2106 7.5 MMF2150 29.5 MMF2194 51.5 MMF2238 73.5 MMF2282 95.5
MMF2107 8 MMF2151 30 MMF2195 52 MMF2239 74 MMF2283 96
MMF2108 8.5 MMF2152 30.5 MMF2196 52.5 MMF2240 74.5 MMF2284 96.5
MMF2109 9 MMF2153 31 MMF2197 53 MMF2241 75 MMF2285 97
MMF2110 9.5 MMF2154 31.5 MMF2198 53.5 MMF2242 75.5 MMF2286 97.5
MMF2111 10 MMF2155 32 MMF2199 54 MMF2243 76 MMF2287 98
MMF2112 10.5 MMF2156 32.5 MMF2200 54.5 MMF2244 76.5 MMF2288 98.5
MMF2113 11 MMF2157 33 MMF2201 55 MMF2245 77 MMF2289 99
MMF2114 11.5 MMF2158 33.5 MMF2202 55.5 MMF2246 77.5 MMF2290 99.5
MMF2115 12 MMF2159 34 MMF2203 56 MMF2247 78 MMF2291 100
MMF2116 12.5 MMF2160 34.5 MMF2204 56.5 MMF2248 78.5 MMF2292 101
MMF2117 13 MMF2161 35 MMF2205 57 MMF2249 79 MMF2293 102
MMF2118 13.5 MMF2162 35.5 MMF2206 57.5 MMF2250 79.5 MMF2294 103
MMF2119 14 MMF2163 36 MMF2207 58 MMF2251 80 MMF2295 104
MMF2120 14.5 MMF2164 36.5 MMF2208 58.5 MMF2252 80.5 MMF2296 105
MMF2121 15 MMF2165 37 MMF2209 59 MMF2253 81 MMF2297 106
MMF2122 15.5 MMF2166 37.5 MMF2210 59.5 MMF2254 81.5 MMF2298 107
MMF2123 16 MMF2167 38 MMF2211 60 MMF2255 82 MMF2299 108
MMF2124 16.5 MMF2168 38.5 MMF2212 60.5 MMF2256 82.5 MMF2300 109
MMF2125 17 MMF2169 39 MMF2213 61 MMF2257 83 MMF2301 110
MMF2126 17.5 MMF2170 39.5 MMF2214 61.5 MMF2258 83.5 MMF2302 111
MMF2127 18 MMF2171 40 MMF2215 62 MMF2259 84 MMF2303 112
MMF2128 18.5 MMF2172 40.5 MMF2216 62.5 MMF2260 84.5 MMF2304 113
MMF2129 19 MMF2173 41 MMF2217 63 MMF2261 85 MMF2305 114
MMF2130 19.5 MMF2174 41.5 MMF2218 63.5 MMF2262 85.5 MMF2306 115
MMF2131 20 MMF2175 42 MMF2219 64 MMF2263 86 MMF2307 116
MMF2132 20.5 MMF2176 42.5 MMF2220 64.5 MMF2264 86.5 MMF2308 117
MMF2133 21 MMF2177 43 MMF2221 65 MMF2265 87 MMF2309 118
MMF2134 21.5 MMF2178 43.5 MMF2222 65.5 MMF2266 87.5 MMF2310 119
MMF2135 22 MMF2179 44 MMF2223 66 MMF2267 88 MMF2311 120
MMF2136 22.5 MMF2180 44.5 MMF2224 66.5 MMF2268 88.5 MMF2312 121
MMF2137 23 MMF2181 45 MMF2225 67 MMF2269 89 MMF2313 122
MMF2138 23.5 MMF2182 45.5 MMF2226 67.5 MMF2270 89.5 MMF2314 123
MMF2139 24 MMF2183 46 MMF2227 68 MMF2271 90 MMF2315 124
MMF2140 24.5 MMF2184 46.5 MMF2228 68.5 MMF2272 90.5 MMF2316 125
MMF2141 25 MMF2185 47 MMF2229 69 MMF2273 91 X X
MMF2142 25.5 MMF2186 47.5 MMF2230 69.5 MMF2274 91.5 X X
MMF2143 26 MMF2187 48 MMF2231 70 MMF2275 92 X X
MMF2144 26.5 MMF2188 48.5 MMF2232 70.5 MMF2276 92.5 X X

TOLERANCES:
B-  Length up to 100mm  ±  .15mm
100mm  to 150mm ± .20mm
150mm and over  ±  .25mm
C-  Length will be adjusted where B dimensions will not permit full thread depth
D-  Diameter Dimension, Mill Standard
*No undercut Nylon & Delrin®
