Metric M43R Retainer for Captive Screws
FSC-5304-411- Retainers listed here
mate with Series M4100 Captive Screws
Back To Captive Screws & Retainers Page

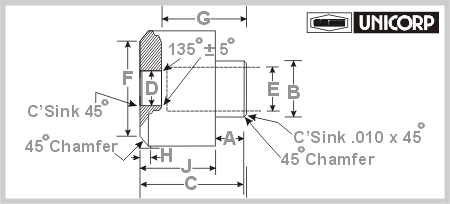

*Slightly Chamfered to Permit Smooth Entry / Fit.
CHOOSE and write down your PART NUMBER
then Go to     Skip Step 1
Part
Number		 Thread Panel
Thickness		 A
±
 0.15		 B
±
 0.05		 C
±
 0.3		 D
+ 0.15
- 0.0		 E
+ 0.1
  -  0.05		 F
±
 0.1		 G
±
0.15		 H
REF		 J
±
 0.15
M43R01 M3.0 x 0.5 1.3- 1.7 1.6 6.3 9.5 3.2 5.3 8 7.6 .6 7.9
M43R02 M3.0 x 0.5 2.1- 2.5 2.4 6.3 9.5 3.2 5.3 8 7.6 .6 7.1
M43R03 M3.0 x 0.5 2.8- 3.6 3.2 6.3 9.5 3.2 5.3 8 7.6 .6 6.3
M43R04 M3.0 x 0.5 4.3- 5.2 4.8 6.3 9.5 3.2 5.3 8 7.6 .6 4.7
M43R05 M3.5 x 0.6 1.3- 1.7 1.6 6.3 9.5 3.9 5.3 8 7.7 .6 7.9
M43R06 M3.5 x 0.6 2.1- 2.5 2.4 6.3 9.5 3.9 5.3 8 7.7 .6 7.1
M43R07 M3.5 x 0.6 2.8- 3.6 3.2 6.3 9.5 3.9 5.3 8 7.7 .6 6.3
M43R08 M3.5 x 0.6 4.3- 5.2 4.8 6.3 9.5 3.9 5.3 8 7.7 .6 4.7
M43R09 M3.5 x 0.6 5.9- 6.7 6.4 6.3 9.5 3.9 5.3 8 7.7 .6 3.1
M43R10 M4.0 x 0.7 1.3- 1.7 1.6 11 14.3 4.5 9.8 13 11.4 .7 12.7
M43R11 M4.0 x 0.7 2.1- 2.5 2.4 11 14.3 4.5 9.8 13 11.4 .7 11.9
M43R12 M4.0 x 0.7 2.8- 3.6 3.2 11 14.3 4.5 9.8 13 11.4 .7 11.1
M43R13 M4.0 x 0.7 4.3- 5.2 4.8 11 14.3 4.5 9.8 13 11.4 .7 9.5
M43R14 M4.0 x 0.7 5.9- 6.7 6.4 11 14.3 4.5 9.8 13 11.4 .7 7.9
M43R15 M5.0 x 0.8 1.3- 1.7 1.6 11 14.3 5.2 9.8 13 11.8 1 12.7
M43R16 M5.0 x 0.8 2.1- 2.5 2.4 11 14.3 5.2 9.8 13 11.8 1 11.9
M43R17 M5.0 x 0.8 2.8- 3.6 3.2 11 14.3 5.2 9.8 13 11.8 1 11.1
Part
Number		 Thread Panel
Thickness		 A
±
 0.15		 B
±
 0.05		 C
±
 0.3		 D
+ 0.15
- 0.0		 E
+ 0.1
  -  0.05		 F
±
 0.1		 G
±
0.15		 H
REF		 J
±
 0.15
M43R18 M5.0 x 0.8 4.3- 5.2 4.8 11 14.3 5.2 9.8 13 11.8 1 9.5
M43R19 M5.0 x 0.8 5.9- 6.7 6.4 11 14.3 5.2 9.8 13 11.8 1 7.9
M43R20 M6.0 x 1.0 1.3- 1.7 1.6 11 14.3 6.5 9.8 13 12.1 1 12.7
M43R21 M6.0 x 1.0 2.1- 2.5 2.4 11 14.3 6.5 9.8 13 12.1 1 11.9
M43R22 M6.0 x 1.0 2.8- 3.6 3.2 11 14.3 6.5 9.8 13 12.1 1 11.1
M43R23 M6.0 x 1.0 4.3- 5.2 4.8 11 14.3 6.5 9.8 13 12.1 1 9.5
M43R24 M6.0 x 1.0 5.9- 6.7 6.4 11 14.3 6.5 9.8 13 12.1 1 7.9
M43R25 M8.0 x 1.25 1.3- 1.7 1.6 11 14.3 8.3 9.8 13 12.3 1.1 12.7
M43R26 M8.0 x 1.25 2.1- 2.5 2.4 11 14.3 8.3 9.8 13 12.3 1.1 11.9
M43R27 M8.0 x 1.25 2.8- 3.6 3.2 11 14.3 8.3 9.8 13 12.3 1.1 11.1
M43R28 M8.0 x 1.25 4.3- 5.2 4.8 11 14.3 8.3 9.8 13 12.3 1.1 9.5
M43R29 M8.0 x 1.25 5.9- 6.7 6.4 11 14.3 8.3 9.8 13 12.3 1.1 7.9
M43R30 M8.0 x 1.25 1.3- 1.7 1.6 11 14.3 8.3 13 16 12.3 1.1 12.7
M43R31 M8.0 x 1.25 2.1- 2.5 2.4 11 14.3 8.3 13 16 12.3 1.1 11.9
M43R32 M8.0 x 1.25 2.8- 3.6 3.2 11 14.3 8.3 13 16 12.3 1.1 11.1
M43R33 M8.0 x 1.25 4.3- 5.2 4.8 11 14.3 8.3 13 16 12.3 1.1 9.5
M43R34 M8.0 x 1.25 5.9- 6.7 6.4 11 14.3 8.3 13 16 12.3 1.1 7.9
