Dowel Pins
18-8 Stainless Steel
Standard  •  Press-Fit  •  Hardened

• Hole is slightly smaller diameter than the dowel
• During assembly the dowel pin must be pressed with force into the hole

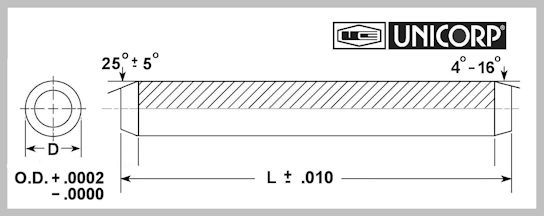

A Series
18-8 Stainless Steel  •  American Standard

              • Material-  18-8 Stainless Steel
              • Corrosion Resistant
              • Slightly Magnetic
              • Hardened (Rockwell Harness not rated)
              • No Finish
              • Press-Fit
              • Ends-  Both Ends Chamfered
              • Diameter Tolerance-  is  + .0002  / - .0000
              • Length Tolerance-  is  + / - .010

1/64"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-015-250-F16 (1/64")   .015 .250
DP188-015-375-F16 (1/64")   .015 .375
DP188-015-500-F16 (1/64")   .015 .500
1/32"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-031-125-F16 (1/32")   .031 .125
DP188-031-187-F16 (1/32")   .031 .187
DP188-031-250-F16 (1/32")   .031 .250
DP188-031-312-F16 (1/32")   .031 .312
DP188-031-375-F16 (1/32")   .031 .375
DP188-031-437-F16 (1/32")   .031 .437
DP188-031-500-F16 (1/32")   .031 .500
DP188-031-625-F16 (1/32")   .031 .625
DP188-031-750-F16 (1/32")   .031 .750
DP188-031-1.000-F16 (1/32")   .031 1.000
1/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-062-125-F16 (1/16")   .062 .125
DP188-062-187-F16 (1/16")   .062 .187
DP188-062-250-F16 (1/16")   .062 .250
DP188-062-312-F16 (1/16")   .062 .312
DP188-062-375-F16 (1/16")   .062 .375
DP188-062-437-F16 (1/16")   .062 .437
DP188-062-500-F16 (1/16")   .062 .500
DP188-062-562-F16 (1/16")   .062 .562
DP188-062-625-F16 (1/16")   .062 .625
DP188-062-750-F16 (1/16")   .062 .750
DP188-062-875-F16 (1/16")   .062 .875
DP188-062-1.000-F16 (1/16")   .062 1.000
DP188-062-1.250-F16 (1/16")   .062 1.125
DP188-062-1.500-F16 (1/16")   .062 1.500
DP188-062-1.750-F16 (1/16")   .062 1.750
DP188-062-2.000-F16 (1/16")   .062 2.000
DP188-062-2.500-F16 (1/16")   .062 2.500
DP188-062-3.000-F16 (1/16")   .062 3.000
3/32"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-093-187-F16 (3/32")   .093 .187
DP188-093-250-F16 (3/32")   .093 .250
DP188-093-312-F16 (3/32")   .093 .312
DP188-093-375-F16 (3/32")   .093 .375
DP188-093-437-F16 (3/32")   .093 .437
DP188-093-500-F16 (3/32")   .093 .500
DP188-093-562-F16 (3/32")   .093 .562
DP188-093-625-F16 (3/32")   .093 .625
DP188-093-750-F16 (3/32")   .093 .750
DP188-093-875-F16 (3/32")   .093 .875
DP188-093-1.000-F16 (3/32")   .093 1.000
DP188-093-1.125-F16 (3/32")   .093 1.125
DP188-093-1.250-F16 (3/32")   .093 1.250
DP188-093-1.500-F16 (3/32")   .093 1.500
DP188-093-1.750-F16 (3/32")   .093 1.750
DP188-093-2.000-F16 (3/32")   .093 2.000
1/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-125-187-F16 (1/8")   .125 .187
DP188-125-250-F16 (1/8")   .125 .250
DP188-125-312-F16 (1/8")   .125 .312
DP188-125-375-F16 (1/8")   .125 .375
DP188-125-437-F16 (1/8")   .125 .437
DP188-125-500-F16 (1/8")   .125 .500
DP188-125-562-F16 (1/8")   .125 .562
DP188-125-625-F16 (1/8")   .125 .625
DP188-125-750-F16 (1/8")   .125 .750
DP188-125-875-F16 (1/8")   .125 .875
DP188-125-1.000-F16 (1/8")   .125 1.000
DP188-125-1.125-F16 (1/8")   .125 1.125
DP188-125-1.250-F16 (1/8")   .125 1.250
DP188-125-1.375-F16 (1/8")   .125 1.375
DP188-125-1.500-F16 (1/8")   .125 1.500
DP188-125-1.625-F16 (1/8")   .125 1.625
DP188-125-1.750-F16 (1/8")   .125 1.750
DP188-125-2.000-F16 (1/8")   .125 2.000
DP188-125-2.250-F16 (1/8")   .125 2.250
DP188-125-2.500-F16 (1/8")   .125 2.500
DP188-125-3.000-F16 (1/8")   .125 3.000
DP188-125-3.500-F16 (1/8")   .125 3.500
DP188-125-4.000-F16 (1/8")   .125 4.000
5/32"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-156-250-F16 (5/32")   .156 .250
DP188-156-375-F16 (5/32")   .156 .375
DP188-156-500-F16 (5/32")   .156 .500
DP188-156-625-F16 (5/32")   .156 .625
DP188-156-750-F16 (5/32")   .156  .750
DP188-156-875-F16 (5/32")   .156 .875
DP188-156-1.000-F16 (5/32")   .156 1.000
DP188-156-1.125-F16 (5/32")   .156 1.125
DP188-156-1.250-F16 (5/32")   .156 1.250
DP188-156-1.375-F16 (5/32")   .156 1.375
DP188-156-1.500-F16 (5/32")   .156 1.500
DP188-156-1.750-F16 (5/32")   .156 1.750
DP188-156-2.000-F16 (5/32")   .156 2.000
DP188-156-2.250-F16 (5/32")   .156 2.250
3/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-187-250-F16 (3/16")   .187 .250
DP188-187-312-F16 (3/16")   .187 .312
DP188-187-375-F16 (3/16")   .187 .375
DP188-187-437-F16 (3/16")   .187 .437
DP188-187-500-F16 (3/16")   .187 .500
DP188-187-562-F16 (3/16")   .187 .562
DP188-187-625-F16 (3/16")   .187 .625
DP188-187-750-F16 (3/16")   .187 .750
DP188-187-875-F16 (3/16")   .187 .875
DP188-187-1.000-F16 (3/16")   .187 1.000
DP188-187-1.125-F16 (3/16")   .187 1.125
DP188-187-1.250-F16 (3/16")   .187 1.250
DP188-187-1.375-F16 (3/16")   .187 1.375
DP188-187-1.500-F16 (3/16")   .187 1.500
DP188-187-1.625-F16 (3/16")   .187 1.625
DP188-187-1.750-F16 (3/16")   .187 1.750
DP188-187-2.000-F16 (3/16")   .187 2.000
DP188-187-2.250-F16 (3/16")   .187 2.250
DP188-187-2.500-F16 (3/16")   .187 2.500
DP188-187-2.750-F16 (3/16")   .187 2.750
DP188-187-3.000-F16 (3/16")   .187 3.000
DP188-187-3.500-F16 (3/16")   .187 3.500
DP188-187-4.000-F16 (3/16")   .187 4.000
1/4"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-250-250-F16 (1/4")   .250 .250
DP188-250-375-F16 (1/4")   .250 .375
DP188-250-437-F16 (1/4")   .250 .437
DP188-250-500-F16 (1/4")   .250 .500
DP188-250-562-F16 (1/4")   .250 .562
DP188-250-625-F16 (1/4")   .250 .625
DP188-250-750-F16 (1/4")   .250 .750
DP188-250-875-F16 (1/4")   .250 .875
DP188-250-1.000-F16 (1/4")   .250 1.000
DP188-250-1.125-F16 (1/4")   .250 1.125
DP188-250-1.250-F16 (1/4")   .250 1.250
DP188-250-1.375-F16 (1/4")   .250 1.375
DP188-250-1.500-F16 (1/4")   .250 1.500
DP188-250-1.750-F16 (1/4")   .250 1.750
DP188-250-2.000-F16 (1/4")   .250 2.000
DP188-250-2.250-F16 (1/4")   .250 2.250
DP188-250-2.500-F16 (1/4")   .250 2.500
DP188-250-2.750-F16 (1/4")   .250 2.750
DP188-250-3.000-F16 (1/4")   .250 3.000
DP188-250-3.250-F16 (1/4")   .250 3.250
DP188-250-3.500-F16 (1/4")   .250 3.500
DP188-250-3.750-F16 (1/4")   .250 3.750
DP188-250-4.000-F16 (1/4")   .250 4.000
DP188-250-4.500-F16 (1/4")   .250 4.500
DP188-250-5.000-F16 (1/4")   .250 5.000
DP188-250-6.000-F16 (1/4")   .250 6.000
5/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-312-375-F16 (5/16")   .312 .375
DP188-312-500-F16 (5/16")   .312 .500
DP188-312-625-F16 (5/16")   .312 .625
DP188-312-750-F16 (5/16")   .312 .750
DP188-312-875-F16 (5/16")   .312 .875
DP188-312-1.000-F16 (5/16")   .312 1.000
DP188-312-1.250-F16 (5/16")   .312 1.250
DP188-312-1.500-F16 (5/16")   .312 1.500
DP188-312-1.750-F16 (5/16")   .312 1.750
DP188-312-2.000-F16 (5/16")   .312 2.000
DP188-312-2.250-F16 (5/16")   .312 2.250
DP188-312-2.500-F16 (5/16")   .312 2.500
DP188-312-2.750-F16 (5/16")   .312 2.750
DP188-312-3.000-F16 (5/16")   .312 3.000
DP188-312-3.500-F16 (5/16")   .312 3.500
DP188-312-4.000-F16 (5/16")   .312 4.000
DP188-312-4.500-F16 (5/16")   .312 4.500
DP188-312-5.000-F16 (5/16")   .312 5.000
DP188-312-6.000-F16 (5/16")   .312 6.000
3/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-375-500-F16 (3/8")   .375 .500
DP188-375-625-F16 (3/8")   .375 .625
DP188-375-750-F16 (3/8")   .375 .750
DP188-375-875-F16 (3/8")   .375 .875
DP188-375-1.000-F16 (3/8")   .375 1.000
DP188-375-1.250-F16 (3/8")   .375 1.250
DP188-375-1.375-F16 (3/8")   .375 1.375
DP188-375-1.500-F16 (3/8")   .375 1.500
DP188-375-1.750-F16 (3/8")   .375 1.750
DP188-375-2.000-F16 (3/8")   .375 2.000
DP188-375-2.250-F16 (3/8")   .375 2.250
DP188-375-2.500-F16 (3/8")   .375 2.500
DP188-375-2.750-F16 (3/8")   .375 2.750
DP188-375-3.000-F16 (3/8")   .375 3.000
DP188-375-3.250-F16 (3/8")   .375 3.250
DP188-375-3.500-F16 (3/8")   .375 3.500
DP188-375-3.750-F16 (3/8")   .375 3.750
DP188-375-4.000-F16 (3/8")   .375 4.000
DP188-375-4.500-F16 (3/8")   .375 4.500
DP188-375-5.000-F16 (3/8")   .375 5.000
DP188-375-6.000-F16 (3/8")   .375 6.000
7/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-437-1.000-F16 (7/16")   .437 1.000
DP188-437-1.250-F16 (7/16")   .437 1.250
DP188-437-1.500-F16 (7/16")   .437 1.500
DP188-437-1.750-F16 (7/16")   .437 1.750
DP188-437-2.000-F16 (7/16")   .437 2.000
DP188-437-2.250-F16 (7/16")   .437 2.250
DP188-437-2.500-F16 (7/16")   .437 2.500
DP188-437-3.000-F16 (7/16")   .437 3.000
DP188-437-4.000-F16 (7/16")   .437 4.000
DP188-437-5.000-F16 (7/16")   .437 5.000
DP188-437-6.000-F16 (7/16")   .437 6.000
1/2"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-500-500-F16 (1/2")   .500 .500
DP188-500-625-F16 (1/2")   .500  .625
DP188-500-750-F16 (1/2")   .500 .750
DP188-500-875-F16 (1/2")   .500 .875
DP188-500-1.000-F16 (1/2")   .500 1.000
DP188-500-1.250-F16 (1/2")   .500 1.250
DP188-500-1.500-F16 (1/2")   .500 1.500
DP188-500-1.750-F16 (1/2")   .500 1.750
DP188-500-2.000-F16 (1/2")   .500 2.000
DP188-500-2.250-F16 (1/2")   .500 2.250
DP188-500-2.500-F16 (1/2")   .500 2.500
DP188-500-2.750-F16 (1/2")   .500 2.750
DP188-500-3.000-F16 (1/2")   .500 3.000
DP188-500-3.250-F16 (1/2")   .500 3.250
DP188-500-3.500-F16 (1/2")   .500 3.500
DP188-500-3.750-F16 (1/2")   .500 3.750
DP188-500-4.000-F16 (1/2")   .500 4.000
DP188-500-4.500-F16 (1/2")   .500 4.500
DP188-500-5.000-F16 (1/2")   .500 5.000
DP188-500-6.000-F16 (1/2")   .500 6.000
5/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-625-1.000-F16 (5/8")   .625 1.000
DP188-625-1.500-F16 (5/8")   .625 1.500
DP188-625-1.750-F16 (5/8")   .625 1.750
DP188-625-2.000-F16 (5/8")   .625 2.000
DP188-625-2.250-F16 (5/8")   .625 2.250
DP188-625-2.500-F16 (5/8")   .625 2.500
DP188-625-2.750-F16 (5/8")   .625 2.750
DP188-625-3.000-F16 (5/8")   .625 3.000
DP188-625-3.250-F16 (5/8")   .625 3.250
DP188-625-4.000-F16 (5/8")   .625 4.000
DP188-625-4.500-F16 (5/8")   .625 4.500
DP188-625-5.000-F16 (5/8")   .625 5.000
DP188-625-6.000-F16 (5/8")   .625 6.000
3/4"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-750-1.000-F16 (3/4")   .750 1.000
DP188-750-1.500-F16 (3/4")   .750 1.500
DP188-750-2.000-F16 (3/4")   .750 2.000
DP188-750-2.500-F16 (3/4")   .750 2.500
DP188-750-3.000-F16 (3/4")   .750 3.000
DP188-750-3.500-F16 (3/4")   .750 3.500
DP188-750-4.000-F16 (3/4")   .750 4.000
DP188-750-4.500-F16 (3/4")   .750 4.500
DP188-750-5.000-F16 (3/4")   .750 5.000
DP188-750-6.000-F16 (3/4")   .750 6.000
7/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-875-1.000-F16 (7/8")   .875 1.000
DP188-875-1.500-F16 (7/8")   .875 1.500
DP188-875-2.000-F16 (7/8")   .875 2.000
DP188-875-2.500-F16 (7/8")   .875 2.500
DP188-875-3.000-F16 (7/8")   .875 3.000
1"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DP188-1000-1.000-F16 (1")   1.000 1.000
DP188-1000-1.250-F16 (1")   1.000 1.250
DP188-1000-1.500-F16 (1")   1.000 1.500
DP188-1000-2.000-F16 (1")   1.000 2.000
DP188-1000-3.000-F16 (1")   1.000 3.000
DP188-1000-4.000-F16 (1")   1.000 4.000
DP188-1000-5.000-F16 (1")   1.000 5.000
DP188-1000-6.000-F16 (1")   1.000 6.000

Phone:  973-674-1700        Toll Free:  1-800-526-1389        Fax:  973-674-3803


UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.


291 Cleveland St,  Orange,  New Jersey  07050  USA
Mailing Address:  P.O. Box 280,  Orange,  New Jersey  07051-0280  USA

Feedback  I  Legal Notice  I  Copyright  I  Services  I  Jobs  I  Contact Us  I  Email Us  I  Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
