Dowel Pins
Carbon Steel
Hardened & Grounded  •  Press-Fit

• Hole is slightly smaller diameter than the dowel
• During assembly the dowel pin must be pressed with force into the hole
C Series
Carbon Steel  •  American Standard

          • Material-  Carbon Steel
          • Carbonized Rockwell C58-62
          • No Finish
          • Press-Fit
          • Hardened & Grounded
          • Ends-  1 Side: Crown (Spherical Radius)
                       / 1 Side: Chamfered
          • Crown End-  1/3 to 1/8 of diameter
          • Chamfered End-  approx. 10°
          • Diameter Tolerance-   +/- .0001
          • Length Tolerance-   +/- .012
          • Case hardened depth-  .010 to .020

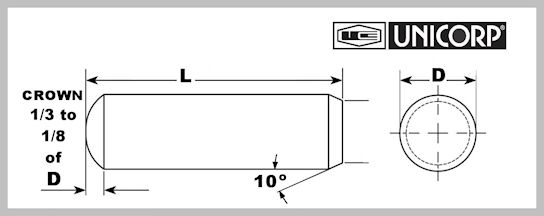

          • A = D*  (.010)  + .010 / -.000

1/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPCS-062-187-F16 (1/16")   .062 .187
DPCS-062-250-F16 (1/16")   .062 .250
DPCS-062-375-F16 (1/16")   .062 .375
DPCS-062-500-F16 (1/16")   .062 .500
DPCS-062-625-F16 (1/16")   .062 .625
DPCS-062-750-F16 (1/16")   .062 .750
DPCS-062-875-F16 (1/16")   .062 .875
DPCS-062-1.000-F16 (1/16")   .062 1.000
3/32"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPCS-093-250-F16 (3/32")   .093 .250
DPCS-093-375-F16 (3/32")   .093 .375
DPCS-093-500-F16 (3/32")   .093 .500
DPCS-093-625-F16 (3/32")   .093 .625
DPCS-093-750-F16 (3/32")   .093 .750
DPCS-093-875-F16 (3/32")   .093 .875
DPCS-093-1.000-F16 (3/32")   .093 1.000
DPCS-093-1.500-F16 (3/32")   .093 1.500
1/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPCS-125-250-F16 (1/8")   .125 .250
DPCS-125-375-F16 (1/8")   .125 .375
DPCS-125-500-F16 (1/8")   .125 .500
DPCS-125-625-F16 (1/8")   .125 .625
DPCS-125-750-F16 (1/8")   .125 .750
DPCS-125-875-F16 (1/8")   .125 .875
DPCS-125-1.000-F16 (1/8")   .125 1.000
DPCS-125-1.250-F16 (1/8")   .125 1.250
DPCS-125-1.500-F16 (1/8")   .125 1.500
3/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPCS-187-500-F16 (3/16")   .187 .500
DPCS-187-625-F16 (3/16")   .187 .625
DPCS-187-750-F16 (3/16")   .187 .750
DPCS-187-875-F16 (3/16")   .187 .875
DPCS-187-1.000-F16 (3/16")   .187 1.000
DPCS-187-1.250-F16 (3/16")   .187 1.250
DPCS-187-1.500-F16 (3/16")   .187 1.500
1/4"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPCS-250-500-F16 (1/4")   .250 .500
DPCS-250-625-F16 (1/4")   .250 .625
DPCS-250-750-F16 (1/4")   .250 .750
DPCS-250-875-F16 (1/4")   .250 .875
DPCS-250-1.000-F16 (1/4")   .250 1.000
DPCS-250-1.250-F16 (1/4")   .250 1.250
DPCS-250-1.500-F16 (1/4")   .250 1.500
5/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPCS-312-500-F16 (5/16")   .312 .500
DPCS-312-625-F16 (5/16")   .312 .625
DPCS-312-750-F16 (5/16")   .312 .750
DPCS-312-875-F16 (5/16")   .312 .875
DPCS-312-1.000-F16 (5/16")   .312 1.000
DPCS-312-1.250-F16 (5/16")   .312 1.250
DPCS-312-1.500-F16 (5/16")   .312 1.500
3/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPCS-375-500-F16 (3/8")   .375 .500
DPCS-375-625-F16 (3/8")   .375 .625
DPCS-375-750-F16 (3/8")   .375 .750
DPCS-375-875-F16 (3/8")   .375 .875
DPCS-375-1.000-F16 (3/8")   .375 1.000
DPCS-375-1.250-F16 (3/8")   .375 1.250
DPCS-375-1.500-F16 (3/8")   .375 1.500
