Dowel Pins
303 Stainless Steel
Precision  •  Interference-Fit

E Series
303 Stainless Steel  •  American Standard

              • Material-  303 Stainless Steel
              • Slightly Corrosion Resistant
              • Slightly Magnetic
              • No Finish
              • Precision Interference-Fit

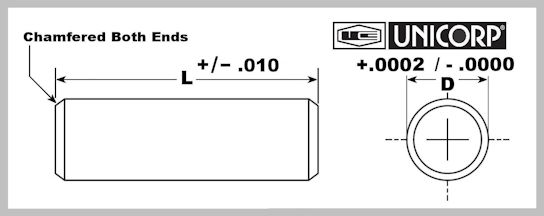

              • Ends-  Both Ends Chamfered
              • Diameter Tolerance-   + .0002 / - .0000
              • Length Tolerance-   + / - .010

1/32"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-031-093-F16 (1/32")   .031 .093
DPE303-031-125-F16 (1/32")   .031 .125
DPE303-031-156-F16 (1/32")   .031 .156
DPE303-031-187-F16 (1/32")   .031 .187
DPE303-031-218-F16 (1/32")   .031 .218
DPE303-031-250-F16 (1/32")   .031 .250
DPE303-031-312-F16 (1/32")   .031 .312
DPE303-031-375-F16 (1/32")   .031 .375
DPE303-031-437-F16 (1/32")   .031 .437
DPE303-031-500-F16 (1/32")   .031 .500
DPE303-031-625-F16 (1/32")   .031 .625
DPE303-031-750-F16 (1/32")   .031 .750
DPE303-031-875-F16 (1/32")   .031 .875
DPE303-031-1.000-F16 (1/32")   .031 .1.000
1/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-062-093-F16 (1/16")   .062 .093
DPE303-062-125-F16 (1/16")   .062 .125
DPE303-062-156-F16 (1/16")   .062 .156
DPE303-062-187-F16 (1/16")   .062 .187
DPE303-062-218-F16 (1/16")   .062 .218
DPE303-062-250-F16 (1/16")   .062 .250
DPE303-062-312-F16 (1/16")   .062 .312
DPE303-062-375-F16 (1/16")   .062 .375
DPE303-062-437-F16 (1/16")   .062 .437
DPE303-062-500-F16 (1/16")   .062 .500
DPE303-062-625-F16 (1/16")   .062 .625
DPE303-062-750-F16 (1/16")   .062 .750
DPE303-062-875-F16 (1/16")   .062 .875
DPE303-062-1.000-F16 (1/16")   .062 .1.000
5/64"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-078-156-F16 (5/64")   .078 .156
DPE303-078-187-F16 (5/64")   .078 .187
DPE303-078-250-F16 (5/64")   .078 .250
DPE303-078-312-F16 (5/64")   .078 .312
DPE303-078-375-F16 (5/64")   .078 .375
3/32"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-093-093-F16 (3/32")   .093 .093
DPE303-093-125-F16 (3/32")   .093 .125
DPE303-093-156-F16 (3/32")   .093 .156
DPE303-093-187-F16 (3/32")   .093 .187
DPE303-093-218-F16 (3/32")   .093 .218
DPE303-093-250-F16 (3/32")   .093 .250
DPE303-093-312-F16 (3/32")   .093 .312
DPE303-093-375-F16 (3/32")   .093 .375
DPE303-093-437-F16 (3/32")   .093 .437
DPE303-093-500-F16 (3/32")   .093 .500
DPE303-093-675-F16 (3/32")   .093 .625
DPE303-093-750-F16 (3/32")   .093 .750
DPE303-093-875-F16 (3/32")   .093 .875
DPE303-093-1.000-F16 (3/32")   .093 1.000
1/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-125-093-F16 (1/8")   .125 .093
DPE303-125-125-F16 (1/8")   .125 .125
DPE303-125-156-F16 (1/8")   .125 .156
DPE303-125-187-F16 (1/8")   .125 .187
DPE303-125-218-F16 (1/8")   .125 .218
DPE303-125-250-F16 (1/8")   .125 .250
DPE303-125-312-F16 (1/8")   .125 .312
DPE303-125-375-F16 (1/8")   .125 .375
DPE303-125-437-F16 (1/8")   .125 .437
DPE303-125-500-F16 (1/8")   .125 .500
DPE303-125-625-F16 (1/8")   .125 .625
DPE303-125-750-F16 (1/8")   .125 .750
DPE303-125-875-F16 (1/8")   .125 .875
DPE303-125-1.000-F16 (1/8")   .125 1.000
DPE303-125-1.125-F16 (1/8")   .125 1.125
5/32"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-156-187-F16 (5/32")   .156 .187
DPE303-156-250-F16 (5/32")   .156 .250
DPE303-156-312-F16 (5/32")   .156 .312
DPE303-156-375-F16 (5/32")   .156 .375
DPE303-156-437-F16 (5/32")   .156 .437
DPE303-156-500-F16 (5/32")   .156 .500
DPE303-156-625-F16 (5/32")   .156 .625
3/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-187-250-F16 (3/16")   .187 .250
DPE303-187-312-F16 (3/16")   .187 .312
DPE303-187-375-F16 (3/16")   .187 .375
DPE303-187-437-F16 (3/16")   .187 .437
DPE303-187-500-F16 (3/16")   .187 .500
DPE303-187-625-F16 (3/16")   .187 .625
DPE303-187-750-F16 (3/16")   .187 .750
DPE303-187-875-F16 (3/16")   .187 .875
DPE303-187-1.000-F16 (3/16")   .187 1.000
1/4"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-250-375-F16 (1/4")   .250 .375
DPE303-250-437-F16 (1/4")   .250 .437
DPE303-250-500-F16 (1/4")   .250 .500
DPE303-250-562-F16 (1/4")   .250 .562
DPE303-250-625-F16 (1/4")   .250 .625
DPE303-250-750-F16 (1/4")   .250 .750
DPE303-250-875-F16 (1/4")   .250 .875
DPE303-250-1.000-F16 (1/4")   .250 1.000
DPE303-250-1.250-F16 (1/4")   .250 1.125
5/16"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-312-500-F16 (5/16")   .312 .500
DPE303-312-750-F16 (5/16")   .312 .750
DPE303-312-1.000-F16 (5/16")   .312 1.000
DPE303-312-1.250-F16 (5/16")   .312 1.125
3/8"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-375-562-F16 (3/8")   .375 .562
DPE303-375-750-F16 (3/8")   .375 .750
DPE303-375-1.000-F16 (3/8")   .375 1.000
DPE303-375-1.250-F16 (3/8")   .375 1.250
DPE303-375-1.500-F16 (3/8")   .375 1.500
1/2"  Dowel Pins
For Technical Information:
Part Number Pin Diameter (D) Pin Length (L)
DPE303-500-750-F16 (1/2")   .500 .750
DPE303-500-1.000-F16 (1/2")   .500 1.000
