Thin Sheet Threaded Standoffs TSOS-U Self Clinching Fasteners Standoffs For Sheet Metal American Standard (Inches) & Metric Sizes |
||||||||||||
|
||||||||||||
|
Self-clinching Permanently mounted Installed quickly and easily in metal panels No secondary operation needed prior to installation Outer sheet surface is flushed and closed Used for sheets as thin as 0.025" / 0.63 mm |
||||||||||||
| American Standard Sizes: Series TSOS-U | ||||||||||||
| Metric Sizes: Series TSOS-U | ||||||||||||

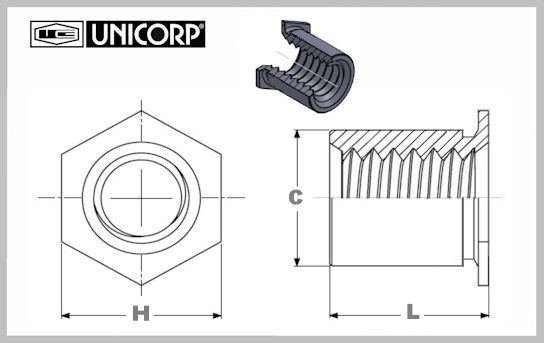

| Series TSOS-U | ||||||||||||
| Series TSOS-U / American Standard Sizes | ||||||||||||
|
||||||||||||
|
Part Number |
Thread |
"H" Nom. |
"L" Body Length |
Style |
Min. Sheet Thickness |
Hole Size in Sheet |
"C" Barrel O.D. |
Min. Distance to Edge |
Mil-Spec | |||
| TSOS-256-090-U | 2-56 | 3/16" | 0.090" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-125-U | 2-56 | 3/16" | 0.125" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-187-U | 2-56 | 3/16" | 0.187" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-250-U | 2-56 | 3/16" | 0.250" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-312-U | 2-56 | 3/16" | 0.312" | #2 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-375-U | 2-56 | 3/16" | 0.375" | #2 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-437-U | 2-56 | 3/16" | 0.437" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-500-U | 2-56 | 3/16" | 0.500" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-562-U | 2-56 | 3/16" | 0.562" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-625-U | 2-56 | 3/16" | 0.625" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-687-U | 2-56 | 3/16" | 0.687" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-256-750-U | 2-56 | 3/16" | 0.750" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-6256-090-U | 2-56 | 1/4" | 0.090" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-125-U | 2-56 | 1/4" | 0.125" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-187-U | 2-56 | 1/4" | 0.187" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-250-U | 2-56 | 1/4" | 0.250" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-312-U | 2-56 | 1/4" | 0.312" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-375-U | 2-56 | 1/4" | 0.375" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-437-U | 2-56 | 1/4" | 0.437" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-500-U | 2-56 | 1/4" | 0.500" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-562-U | 2-56 | 1/4" | 0.562" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-625-U | 2-56 | 1/4" | 0.625" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-687-U | 2-56 | 1/4" | 0.687" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6256-750-U | 2-56 | 1/4" | 0.750" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-440-090-U | 4-40 | 3/16" | 0.090" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-125-U | 4-40 | 3/16" | 0.125" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-187-U | 4-40 | 3/16" | 0.187" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-250-U | 4-40 | 3/16" | 0.250" | #1 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-312-U | 4-40 | 3/16" | 0.312" | #2 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-375-U | 4-40 | 3/16" | 0.375" | #2 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-437-U | 4-40 | 3/16" | 0.437" | #2 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-500-U | 4-40 | 3/16" | 0.500" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-562-U | 4-40 | 3/16" | 0.562" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-625-U | 4-40 | 3/16" | 0.625" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-687-U | 4-40 | 3/16" | 0.687" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-440-750-U | 4-40 | 3/16" | 0.750" | #3 | 0.025" | 0.166" | 0.165" | 0.230" | N/A | |||
| TSOS-6440-090-U | 4-40 | 1/4" | 0.090" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-125-U | 4-40 | 1/4" | 0.125" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-187-U | 4-40 | 1/4" | 0.187" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-250-U | 4-40 | 1/4" | 0.250" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-312-U | 4-40 | 1/4" | 0.312" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-375-U | 4-40 | 1/4" | 0.375" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-437-U | 4-40 | 1/4" | 0.437" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-500-U | 4-40 | 1/4" | 0.500" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-562-U | 4-40 | 1/4" | 0.562" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-625-U | 4-40 | 1/4" | 0.625" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-687-U | 4-40 | 1/4" | 0.687" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-6440-750-U | 4-40 | 1/4" | 0.750" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-125-U | 6-32 | 1/4" | 0.125" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-187-U | 6-32 | 1/4" | 0.187" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-250-U | 6-32 | 1/4" | 0.250" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-312-U | 6-32 | 1/4" | 0.312" | #1 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-375-U | 6-32 | 1/4" | 0.375" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-437-U | 6-32 | 1/4" | 0.437" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-500-U | 6-32 | 1/4" | 0.500" | #2 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-562-U | 6-32 | 1/4" | 0.562" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-625-U | 6-32 | 1/4" | 0.625" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-687-U | 6-32 | 1/4" | 0.687" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
| TSOS-632-750-U | 6-32 | 1/4" | 0.750" | #3 | 0.025" | 0.213" | 0.212" | 0.270" | N/A | |||
 |
||||||||||||
| Series TSOS-U / Metric Sizes | ||||||||||||
|
||||||||||||
|
Part Number |
Thread |
"H" Nom. |
"L" Body Length |
Style |
Min. Sheet Thickness |
Hole Size in Sheet |
"C" Barrel O.D. |
Min. Distance to Edge |
Mil-Spec | |||
| TSOS-M25-200-U | M2.5 x 0.45 |
4.80 mm |
2.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-300-U | M2.5 x 0.45 |
4.80 mm |
3.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-400-U | M2.5 x 0.45 |
4.80 mm |
4.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-600-U | M2.5 x 0.45 |
4.80 mm |
6.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-800-U | M2.5 x 0.45 |
4.80 mm |
8.00 mm |
#2 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-1000-U | M2.5 x 0.45 |
4.80 mm |
10.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-1200-U | M2.5 x 0.45 |
4.80 mm |
12.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-1400-U | M2.5 x 0.45 |
4.80 mm |
14.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-1600-U | M2.5 x 0.45 |
4.80 mm |
16.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-1800-U | M2.5 x 0.45 |
4.80 mm |
18.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M25-1900-U | M2.5 x 0.45 |
4.80 mm |
19.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-6M25-200-U | M2.5 x 0.45 |
6.40 mm |
2.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-300-U | M2.5 x 0.45 |
6.40 mm |
3.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-400-U | M2.5 x 0.45 |
6.40 mm |
4.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-600-U | M2.5 x 0.45 |
6.40 mm |
6.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-800-U | M2.5 x 0.45 |
6.40 mm |
8.00 mm |
#2 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-1000-U | M2.5 x 0.45 |
6.40 mm |
10.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-1200-U | M2.5 x 0.45 |
6.40 mm |
12.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-1400-U | M2.5 x 0.45 |
6.40 mm |
14.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-1600-U | M2.5 x 0.45 |
6.40 mm |
16.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-1800-U | M2.5 x 0.45 |
6.40 mm |
18.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M25-1900-U | M2.5 x 0.45 |
6.40 mm |
19.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M3-200-U | M3 x 0.5 |
4.80 mm |
2.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-300-U | M3 x 0.5 |
4.80 mm |
3.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-400-U | M3 x 0.5 |
4.80 mm |
4.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-600-U | M3 x 0.5 |
4.80 mm |
6.00 mm |
#1 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-800-U | M3 x 0.5 |
4.80 mm |
8.00 mm |
#2 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-1000-U | M3 x 0.5 |
4.80 mm |
10.00 mm |
#2 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-1200-U | M3 x 0.5 |
4.80 mm |
12.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-1400-U | M3 x 0.5 |
4.80 mm |
14.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-1600-U | M3 x 0.5 |
4.80 mm |
16.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-1800-U | M3 x 0.5 |
4.80 mm |
18.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-M3-1900-U | M3 x 0.5 |
4.80 mm |
19.00 mm |
#3 |
0.63 mm |
4.22 mm |
4.20 mm |
5.80 mm |
N/A | |||
| TSOS-6M3-200-U | M3 x 0.5 |
6.40 mm |
2.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-300-U | M3 x 0.5 |
6.40 mm |
3.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-400-U | M3 x 0.5 |
6.40 mm |
4.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-600-U | M3 x 0.5 |
6.40 mm |
6.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-800-U | M3 x 0.5 |
6.40 mm |
8.00 mm |
#2 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-1000-U | M3 x 0.5 |
6.40 mm |
10.00 mm |
#2 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-1200-U | M3 x 0.5 |
6.40 mm |
12.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-1400-U | M3 x 0.5 |
6.40 mm |
14.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-1600-U | M3 x 0.5 |
6.40 mm |
16.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-1800-U | M3 x 0.5 |
6.40 mm |
18.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-6M3-1900-U | M3 x 0.5 |
6.40 mm |
19.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-300-U | M3.5 x 0.6 |
6.40 mm |
3.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-400-U | M3.5 x 0.6 |
6.40 mm |
4.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-600-U | M3.5 x 0.6 |
6.40 mm |
6.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-800-U | M3.5 x 0.6 |
6.40 mm |
8.00 mm |
#1 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-1000-U | M3.5 x 0.6 |
6.40 mm |
10.00 mm |
#2 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-1200-U | M3.5 x 0.6 |
6.40 mm |
12.00 mm |
#2 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-1400-U | M3.5 x 0.6 |
6.40 mm |
14.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-1600-U | M3.5 x 0.6 |
6.40 mm |
16.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-1800-U | M3.5 x 0.6 |
6.40 mm |
18.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
| TSOS-M35-1900-U | M3.5 x 0.6 |
6.40 mm |
19.00 mm |
#3 |
0.63 mm |
5.41 mm |
5.39 mm |
7.10 mm |
N/A | |||
 |
 |
|||||||||||
|
Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803 | ||||||||||||
|
UNICORP is a leader in manufacturing stock and custom electronic hardware, handles and precision fasteners used by leading companies in nearly every industry since 1971.  291 Cleveland St, Orange, New Jersey 07050 USA Mailing Address: P.O. Box 280, Orange, New Jersey 07051-0280 USA Feedback I Legal Notice I Copyright I Services I Jobs I Contact Us I Email Us I Privacy Statement Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
| ||||||||||||
