Pilot Pins with Tapered Point  TPXS-U

Self Clinching Fasteners  •  Studs for Sheet Metal
American Standard (Inches) & Metric Sizes
• Self-clinching    • Unthreaded    • Installed quickly and easily in metal panels by squeezing into place with standard press
• Creates flush-head assembly    • High push-out resistance
• 15° tapered point-easy locating of mating hole    • Minimum sheet thickness of 1.00 mm

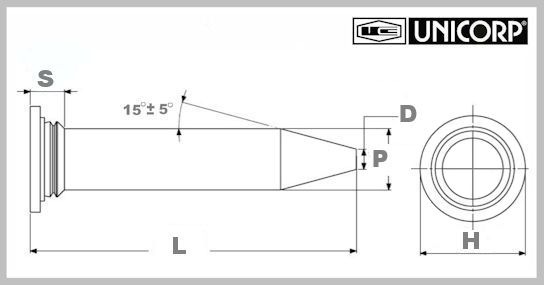

Series  TPXS-U
Series  TPXS-U  /  Metric Sizes
      • Shape-  Round
      • Sheet Hardness-  HRB 70 / HB 125 or Less
      • Material-  300 Series Stainless Steel
      • Finish-  Passivated per ASTM A380
Series TPXS-U
Metric Sizes
Part
Number		 "S"
Max.		 "P"
Pin
Diameter		 "L"
Body
Length		 "H"
Head
Diameter		 "D" Min.
Sheet
Thickness		 Hole
Size in
Sheet		 Min.
Distance
to Edge		 Mil-Spec
TPXS-3MM-16-U 2.29
mm		 3.00
mm		 16.00
mm		 5.20
mm		 1.00
mm		 1.00
mm		 3.50
mm		 6.40
mm		 N/A
