Pilot Pins TPS-U, TP4-U

Self Clinching Fasteners • Studs for Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Pilot Pins TPS, TP4

• Self-clinching    • Unthreaded    • Installed quickly and easily in metal panels by squeezing into place with standard press
• Creates flush-head assembly    • High push-out resistance
• Chamfered end- easy locating of mating hole    • Minimum sheet thickness of 0.040"/ 1.00 mm

American Standard Sizes: • Series TPS-U • Series TP4-U

Metric Sizes: • Series TPS-U • Series TP4-U

Series TPS-U

Series TPS-U / American Standard Sizes

• Shape- Round • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380

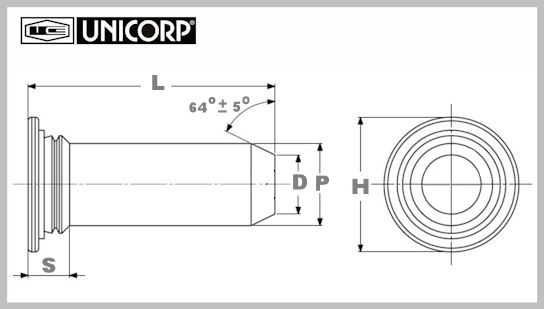

	Series TPS-U American Standard Sizes (SAE)

Part
Number

"S"
Max.

"P"
Pin
Diameter

"L"
Body
Length

"H"
Head
Diameter

"D"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

TPS-125-6-U

0.090"

1/8"

0.375"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TPS-125-8-U

0.090"

1/8"

0.500"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TPS-125-10-U

0.090"

1/8"

0.625"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TPS-125-12-U

0.090"

1/8"

0.750"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TPS-187-6-U

0.090"

3/16"

0.375"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TPS-187-8-U

0.090"

3/16"

0.500"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TPS-187-10-U

0.090"

3/16"

0.625"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TPS-187-12-U

0.090"

3/16"

0.750"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TPS-187-16-U

0.090"

3/16"

1.000"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TPS-250-8-U

0.090"

1/4"

0.500"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

TPS-250-10-U

0.090"

1/4"

0.625"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

TPS-250-12-U

0.090"

1/4"

0.750"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

TPS-250-16-U

0.090"

1/4"

1.000"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

Series TPS-U / Metric Sizes

• Shape- Round • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series TPS-U Metric Sizes

Part
Number

"S"
Max.

"P"
Pin
Diameter

"L"
Body
Length

"H"
Head
Diameter

"D"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

TPS-3MM-8-U

2.29
mm

3.00
mm

8.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TPS-3MM-10-U

2.29
mm

3.00
mm

10.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TPS-3MM-12-U

2.29
mm

3.00
mm

12.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TPS-3MM-16-U

2.29
mm

3.00
mm

16.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TPS-4MM-8-U

2.29
mm

4.00
mm

8.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TPS-4MM-10-U

2.29
mm

4.00
mm

10.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TPS-4MM-12-U

2.29
mm

4.00
mm

12.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TPS-4MM-16-U

2.29
mm

4.00
mm

16.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TPS-5MM-10-U

2.29
mm

5.00
mm

10.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TPS-5MM-12-U

2.29
mm

5.00
mm

12.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TPS-5MM-16-U

2.29
mm

5.00
mm

16.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TPS-5MM-20-U

2.29
mm

5.00
mm

20.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TPS-6MM-12-U

2.29
mm

6.00
mm

12.00
mm

8.13
mm

4.24
mm

1.00
mm

6.50
mm

7.90
mm

N/A

TPS-6MM-16-U

2.29
mm

6.00
mm

16.00
mm

8.13
mm

4.24
mm

1.00
mm

6.50
mm

7.90
mm

N/A

TPS-6MM-20-U

2.29
mm

6.00
mm

20.00
mm

8.13
mm

4.24
mm

1.00
mm

6.50
mm

7.90
mm

N/A

Series TP4-U

Series TP4-U / American Standard Sizes

• Shape- Round • Sheet Hardness- HRB 92 / HB 195 or Less • Material- 400 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series TP4-U American Standard Sizes (SAE)

Part
Number

"S"
Max.

"P"
Pin
Diameter

"L"
Body
Length

"H"
Head
Diameter

"D"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

TP4-125-6-U

0.090"

1/8"

0.375"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TP4-125-8-U

0.090"

1/8"

0.500"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TP4-125-10-U

0.090"

1/8"

0.625"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TP4-125-12-U

0.090"

1/8"

0.750"

0.205"

0.090"

0.040"

0.144"

0.250"

N/A

TP4-187-6-U

0.090"

3/16"

0.375"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TP4-187-8-U

0.090"

3/16"

0.500"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TP4-187-10-U

0.090"

3/16"

0.625"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TP4-187-12-U

0.090"

3/16"

0.750"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TP4-187-16-U

0.090"

3/16"

1.000"

0.270"

0.132"

0.040"

0.205"

0.280"

N/A

TP4-250-8-U

0.090"

1/4"

0.500"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

TP4-250-10-U

0.090"

1/4"

0.625"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

TP4-250-12-U

0.090"

1/4"

0.750"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

TP4-250-16-U

0.090"

1/4"

1.000"

0.335"

0.177"

0.040"

0.272"

0.310"

N/A

Series TP4-U / Metric Sizes

• Shape- Round • Sheet Hardness- HRB 92 / HB 195 or Less • Material- 400 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series TP4-U Metric Sizes

Part
Number

"S"
Max.

"P"
Pin
Diameter

"L"
Body
Length

"H"
Head
Diameter

"D"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

TP4-3MM-8-U

2.29
mm

3.00
mm

8.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TP4-3MM-10-U

2.29
mm

3.00
mm

10.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TP4-3MM-12-U

2.29
mm

3.00
mm

12.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TP4-3MM-16-U

2.29
mm

3.00
mm

16.00
mm

5.20
mm

2.11
mm

1.00
mm

3.50
mm

6.40
mm

N/A

TP4-4MM-8-U

2.29
mm

4.00
mm

8.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TP4-4MM-10-U

2.29
mm

4.00
mm

10.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TP4-4MM-12-U

2.29
mm

4.00
mm

12.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TP4-4MM-16-U

2.29
mm

4.00
mm

16.00
mm

6.12
mm

2.82
mm

1.00
mm

4.50
mm

7.10
mm

N/A

TP4-5MM-10-U

2.29
mm

5.00
mm

10.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TP4-5MM-12-U

2.29
mm

5.00
mm

12.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TP4-5MM-16-U

2.29
mm

5.00
mm

16.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TP4-5MM-20-U

2.29
mm

5.00
mm

20.00
mm

7.19
mm

3.53
mm

1.00
mm

5.50
mm

7.60
mm

N/A

TP4-6MM-12-U

2.29
mm

6.00
mm

12.00
mm

8.13
mm

4.24
mm

1.00
mm

6.50
mm

7.90
mm

N/A

TP4-6MM-16-U

2.29
mm

6.00
mm

16.00
mm

8.13
mm

4.24
mm

1.00
mm

6.50
mm

7.90
mm

N/A

TP4-6MM-20-U

2.29
mm

6.00
mm

20.00
mm

8.13
mm

4.24
mm

1.00
mm

6.50
mm

7.90
mm

N/A
