Standard Nuts S-U, SS-U

Self Clinching Fasteners • Nuts For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Standard Nuts S, SS (Zinc Clear Plated), CLS, CLSS, SP, CLA

• Self-clinching • Used as load-bearing threads in stainless steel panels
• High push-out and torque resistance • Installed quickly and easily by squeezing

American Standard Sizes: • Series S-U, SS-U (Zinc Clear) • Series S-U, SS-U (Zinc Yellow)

Metric Sizes: • Series S-U, SS-U (Zinc Clear) • Series S-U, SS-U (Zinc Yellow)

Series S-U, SS-U

Series S-U, SS-U (Zinc Clear) / American Standard Sizes

• Shape- Round • Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633

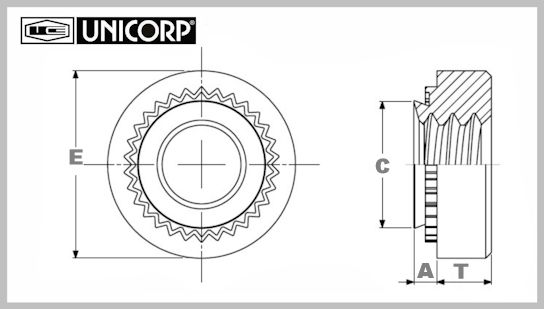

	Series S-U, SS-U American Standard Sizes (SAE)

Part
Number

Thread

"A"
(Shank)
Max.

"T"
Head
Height

"E"
Head
Height

"C" Max.
Body
Diameter

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

S-256-0-ZI-U

2-56

0.030"

0.070"

0.250"

0.165"

0.030"

0.166"

0.190"

N/A

S-256-1-ZI-U

2-56

0.038"

0.070"

0.250"

0.165"

0.040"

0.166"

0.190"

N/A

S-256-2-ZI-U

2-56

0.054"

0.070"

0.250"

0.165"

0.056"

0.166"

0.190"

N/A

S-348-0-ZI-U

3-48

0.030"

0.070"

0.250"

0.165"

0.030"

0.166"

0.190"

N/A

S-348-1-ZI-U

3-48

0.038"

0.070"

0.250"

0.165"

0.040"

0.166"

0.190"

N/A

S-348-2-ZI-U

3-48

0.054"

0.070"

0.250"

0.165"

0.056"

0.166"

0.190"

N/A

S-440-0-ZI-U

4-40

0.030"

0.070"

0.250"

0.165"

0.030"

0.166"

0.190"

N/A

S-440-1-ZI-U

4-40

0.038"

0.070"

0.250"

0.165"

0.040"

0.166"

0.190"

N/A

S-440-2-ZI-U

4-40

0.054"

0.070"

0.250"

0.165"

0.056"

0.166"

0.190"

N/A

S-440-3-ZI-U

4-40

0.087"

0.070"

0.250"

0.165"

0.090"

0.166"

0.190"

N/A

S-632-0-ZI-U

6-32

0.030"

0.070"

0.280"

0.187"

0.030"

0.188"

0.220"

N/A

S-632-1-ZI-U

6-32

0.038"

0.070"

0.280"

0.187"

0.040"

0.188"

0.220"

N/A

S-632-2-ZI-U

6-32

0.054"

0.070"

0.280"

0.187"

0.056"

0.188"

0.220"

N/A

S-632-3-ZI-U

6-32

0.087"

0.070"

0.280"

0.187"

0.090"

0.188"

0.220"

N/A

S-832-0-ZI-U

8-32

0.030"

0.090"

0.310"

0.212"

0.030"

0.213"

0.270"

N/A

S-832-1-ZI-U

8-32

0.038"

0.090"

0.310"

0.212"

0.040"

0.213"

0.270"

N/A

S-832-2-ZI-U

8-32

0.054"

0.090"

0.310"

0.212"

0.056"

0.213"

0.270"

N/A

S-832-3-ZI-U

8-32

0.087"

0.090"

0.310"

0.212"

0.090"

0.213"

0.270"

N/A

SS-024-0-ZI-U

10-24

0.030"

0.090"

0.340"

0.249"

0.030"

0.250"

0.280"

N/A

SS-024-1-ZI-U

10-24

0.038"

0.090"

0.340"

0.249"

0.040"

0.250"

0.280"

N/A

SS-024-2-ZI-U

10-24

0.054"

0.090"

0.340"

0.249"

0.056"

0.250"

0.280"

N/A

SS-024-3-ZI-U

10-24

0.087"

0.090"

0.340"

0.249"

0.090"

0.250"

0.280"

N/A

SS-032-0-ZI-U

10-32

0.030"

0.090"

0.340"

0.249"

0.030"

0.250"

0.280"

N/A

SS-032-1-ZI-U

10-32

0.038"

0.090"

0.340"

0.249"

0.040"

0.250"

0.280"

N/A

SS-032-2-ZI-U

10-32

0.054"

0.090"

0.340"

0.249"

0.056"

0.250"

0.280"

N/A

SS-032-3-ZI-U

10-32

0.087"

0.090"

0.340"

0.249"

0.090"

0.250"

0.280"

N/A

S-1224-1-ZI-U

12-24

0.038"

0.130"

0.370"

0.276"

0.040"

0.277"

0.310"

N/A

S-1224-2-ZI-U

12-24

0.054"

0.130"

0.370"

0.276"

0.056"

0.277"

0.310"

N/A

S-1224-3-ZI-U

12-24

0.087"

0.130"

0.370"

0.276"

0.090"

0.277"

0.310"

N/A

S-0420-0-ZI-U

1/4-20

0.045"

0.170"

0.440"

0.343"

0.047"

0.344"

0.340"

N/A

S-0420-1-ZI-U

1/4-20

0.054"

0.170"

0.440"

0.343"

0.056"

0.344"

0.340"

N/A

S-0420-2-ZI-U

1/4-20

0.087"

0.170"

0.440"

0.343"

0.090"

0.344"

0.340"

N/A

S-0420-3-ZI-U

1/4-20

0.120"

0.170"

0.440"

0.343"

0.125"

0.344"

0.340"

N/A

S-0428-1-ZI-U

1/4-28

0.054"

0.170"

0.440"

0.343"

0.056"

0.344"

0.340"

N/A

S-0428-2-ZI-U

1/4-28

0.087"

0.170"

0.440"

0.343"

0.090"

0.344"

0.340"

N/A

S-0428-3-ZI-U

1/4-28

0.120"

0.170"

0.440"

0.343"

0.125"

0.344"

0.340"

N/A

S-0518-1-ZI-U

5/16-18

0.054"

0.230"

0.500"

0.412"

0.056"

0.413"

0.380"

N/A

S-0518-2-ZI-U

5/16-18

0.087"

0.230"

0.500"

0.412"

0.090"

0.413"

0.380"

N/A

S-0518-3-ZI-U

5/16-18

0.120"

0.230"

0.500"

0.412"

0.125"

0.413"

0.380"

N/A

S-0524-1-ZI-U

5/16-24

0.054"

0.230"

0.500"

0.412"

0.056"

0.413"

0.380"

N/A

S-0524-2-ZI-U

5/16-24

0.087"

0.230"

0.500"

0.412"

0.090"

0.413"

0.380"

N/A

S-0524-3-ZI-U

5/16-24

0.120"

0.230"

0.500"

0.412"

0.125"

0.413"

0.380"

N/A

S-0616-1-ZI-U

3/8-16

0.087"

0.270"

0.560"

0.499"

0.090"

0.500"

0.440"

N/A

S-0616-2-ZI-U

3/8-16

0.120"

0.270"

0.560"

0.499"

0.125"

0.500"

0.440"

N/A

S-0616-3-ZI-U

3/8-16

0.235"

0.270"

0.560"

0.499"

0.250"

0.500"

0.440"

N/A

S-0624-1-ZI-U

3/8-24

0.087"

0.270"

0.560"

0.499"

0.090"

0.500"

0.440"

N/A

S-0624-2-ZI-U

3/8-24

0.120"

0.270"

0.560"

0.499"

0.125"

0.500"

0.440"

N/A

S-0624-3-ZI-U

3/8-24

0.235"

0.270"

0.560"

0.499"

0.250"

0.500"

0.440"

N/A

S-0813-1-ZI-U

1/2-13

0.120"

0.360"

0.810"

0.655"

0.125"

0.656"

0.630"

N/A

S-0813-2-ZI-U

1/2-13

0.235"

0.360"

0.810"

0.655"

0.250"

0.656"

0.630"

N/A

S-0820-1-ZI-U

1/2-20

0.120"

0.360"

0.810"

0.655"

0.125"

0.656"

0.630"

N/A

S-0820-2-ZI-U

1/2-20

0.235"

0.360"

0.810"

0.655"

0.250"

0.656"

0.630"

N/A

Series S-U, SS-U (Zinc Clear) / Metric Sizes

• Shape- Round • Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633
	Series S-U, SS-U Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

"T"
Head
Height

"E"
Head
Height

"C" Max.
Body
Diameter

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

S-M2-0-ZI-U

M2 x 0.4

0.77
mm

1.50
mm

6.35
mm

4.2
mm

0.80
mm

4.22
mm

4.80
mm

N/A

S-M2-1-ZI-U

M2 x 0.4

0.97
mm

1.50
mm

6.35
mm

4.2
mm

1.00
mm

4.22
mm

4.80
mm

N/A

S-M2-2-ZI-U

M2 x 0.4

1.38
mm

1.50
mm

6.35
mm

4.2
mm

1.40
mm

4.22
mm

4.80
mm

N/A

S-M2.5-0-ZI-U

M2.5 x 0.45

0.77
mm

1.50
mm

6.35
mm

4.2
mm

0.80
mm

4.22
mm

4.80
mm

N/A

S-M2.5-1-ZI-U

M2.5 x 0.45

0.97
mm

1.50
mm

6.35
mm

4.2
mm

1.00
mm

4.22
mm

4.80
mm

N/A

S-M2.5-2-ZI-U

M2.5 x 0.45

1.38
mm

1.50
mm

6.35
mm

4.2
mm

1.40
mm

4.22
mm

4.80
mm

N/A

S-M3-0-ZI-U

M3 x 0.5

0.77
mm

1.50
mm

6.35
mm

4.2
mm

0.80
mm

4.22
mm

4.80
mm

N/A

S-M3-1-ZI-U

M3 x 0.5

0.97
mm

1.50
mm

6.35
mm

4.2
mm

1.00
mm

4.22
mm

4.80
mm

N/A

S-M3-2-ZI-U

M3 x 0.5

1.38
mm

1.50
mm

6.35
mm

4.2
mm

1.40
mm

4.22
mm

4.80
mm

N/A

S-M3.5-0-ZI-U

M3.5 x 0.6

0.77
mm

1.50
mm

7.11
mm

4.73
mm

0.80
mm

4.75
mm

5.60
mm

N/A

S-M3.5-1-ZI-U

M3.5 x 0.6

0.97
mm

1.50
mm

7.11
mm

4.73
mm

1.00
mm

4.75
mm

5.60
mm

N/A

S-M3.5-2-ZI-U

M3.5 x 0.6

1.38
mm

1.50
mm

7.11
mm

4.73
mm

1.40
mm

4.75
mm

5.60
mm

N/A

S-M4-0-ZI-U

M4 x 0.7

0.77
mm

2.00
mm

7.87
mm

5.38
mm

0.80
mm

5.41
mm

6.90
mm

N/A

S-M4-1-ZI-U

M4 x 0.7

0.97
mm

2.00
mm

7.87
mm

5.38
mm

1.00
mm

5.41
mm

6.90
mm

N/A

S-M4-2-ZI-U

M4 x 0.7

1.38
mm

2.00
mm

7.87
mm

5.38
mm

1.40
mm

5.41
mm

6.90
mm

N/A

SS-M5-0-ZI-U

M5 x 0.8

0.77
mm

2.00
mm

8.64
mm

6.33
mm

0.80
mm

6.35
mm

7.10
mm

N/A

SS-M5-1-ZI-U

M5 x 0.8

0.97
mm

2.00
mm

8.64
mm

6.33
mm

1.00
mm

6.35
mm

7.10
mm

N/A

SS-M5-2-ZI-U

M5 x 0.8

1.38
mm

2.00
mm

8.64
mm

6.33
mm

1.40
mm

6.35
mm

7.10
mm

N/A

S-M6-00-ZI-U

M6 x 1.0

0.89
mm

4.08
mm

11.18
mm

8.73
mm

0.92
mm

8.75
mm

8.60
mm

N/A

S-M6-0-ZI-U

M6 x 1.0

1.15
mm

4.08
mm

11.18
mm

8.73
mm

1.20
mm

8.75
mm

8.60
mm

N/A

S-M6-1-ZI-U

M6 x 1.0

1.38
mm

4.08
mm

11.18
mm

8.73
mm

1.40
mm

8.75
mm

8.60
mm

N/A

S-M6-2-ZI-U

M6 x 1.0

2.21
mm

4.08
mm

11.18
mm

8.73
mm

2.29
mm

8.75
mm

8.60
mm

N/A

S-M8-1-ZI-U

M8 x 1.25

1.38
mm

5.47
mm

12.70
mm

10.47
mm

1.40
mm

10.50
mm

9.70
mm

N/A

S-M8-2-ZI-U

M8 x 1.25

2.21
mm

5.47
mm

12.70
mm

10.47
mm

2.29
mm

10.50
mm

9.70
mm

N/A

S-M10-1-ZI-U

M10 x 1.5

2.21
mm

7.48
mm

17.35
mm

13.97
mm

2.31
mm

14.00
mm

13.50
mm

N/A

S-M10-2-ZI-U

M10 x 1.5

3.05
mm

7.48
mm

17.35
mm

13.97
mm

3.18
mm

14.00
mm

13.50
mm

N/A

S-M12-1-ZI-U

M12 x 1.75

3.05
mm

8.50
mm

20.57
mm

16.95
mm

3.18
mm

17.00
mm

16.00
mm

N/A

Series S-U, SS-U

Series S-U, SS-U (Zinc Yellow) / American Standard Sizes

• Shape- Round • Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Yellow Plated per ASTM B633
	Series S-U, SS-U American Standard Sizes (SAE)

Part
Number

Thread

"A"
(Shank)
Max.

"T"
Head
Height

"E"
Head
Height

"C" Max.
Body
Diameter

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

S-256-0-ZC-U

2-56

0.030"

0.070"

0.250"

0.165"

0.030"

0.166"

0.190"

M45938/1-1

S-256-1-ZC-U

2-56

0.038"

0.070"

0.250"

0.165"

0.040"

0.166"

0.190"

M45938/1-2

S-256-2-ZC-U

2-56

0.054"

0.070"

0.250"

0.165"

0.056"

0.166"

0.190"

N/A

S-348-0-ZC-U

3-48

0.030"

0.070"

0.250"

0.165"

0.030"

0.166"

0.190"

N/A

S-348-1-ZC-U

3-48

0.038"

0.070"

0.250"

0.165"

0.040"

0.166"

0.190"

N/A

S-348-2-ZC-U

3-48

0.054"

0.070"

0.250"

0.165"

0.056"

0.166"

0.190"

N/A

S-440-0-ZC-U

4-40

0.030"

0.070"

0.250"

0.165"

0.030"

0.166"

0.190"

M45938/1-3

S-440-1-ZC-U

4-40

0.038"

0.070"

0.250"

0.165"

0.040"

0.166"

0.190"

M45938/1-4

S-440-2-ZC-U

4-40

0.054"

0.070"

0.250"

0.165"

0.056"

0.166"

0.190"

M45938/1-5

S-440-3-ZC-U

4-40

0.087"

0.070"

0.250"

0.165"

0.090"

0.166"

0.190"

N/A

S-632-0-ZC-U

6-32

0.030"

0.070"

0.280"

0.187"

0.030"

0.188"

0.220"

N/A

S-632-1-ZC-U

6-32

0.038"

0.070"

0.280"

0.187"

0.040"

0.188"

0.220"

M45938/1-8

S-632-2-ZC-U

6-32

0.054"

0.070"

0.280"

0.187"

0.056"

0.188"

0.220"

M45938/1-9

S-632-3-ZC-U

6-32

0.087"

0.070"

0.280"

0.187"

0.090"

0.188"

0.220"

N/A

S-832-0-ZC-U

8-32

0.030"

0.090"

0.310"

0.212"

0.030"

0.213"

0.270"

N/A

S-832-1-ZC-U

8-32

0.038"

0.090"

0.310"

0.212"

0.040"

0.213"

0.270"

M45938/1-12

S-832-2-ZC-U

8-32

0.054"

0.090"

0.310"

0.212"

0.056"

0.213"

0.270"

M45938/1-13

S-832-3-ZC-U

8-32

0.087"

0.090"

0.310"

0.212"

0.090"

0.213"

0.270"

N/A

SS-024-0-ZC-U

10-24

0.030"

0.090"

0.340"

0.249"

0.030"

0.250"

0.280"

N/A

SS-024-1-ZC-U

10-24

0.038"

0.090"

0.340"

0.249"

0.040"

0.250"

0.280"

N/A

SS-024-2-ZC-U

10-24

0.054"

0.090"

0.340"

0.249"

0.056"

0.250"

0.280"

N/A

SS-024-3-ZC-U

10-24

0.087"

0.090"

0.340"

0.249"

0.090"

0.250"

0.280"

N/A

SS-032-0-ZC-U

10-32

0.030"

0.090"

0.340"

0.249"

0.030"

0.250"

0.280"

N/A

SS-032-1-ZC-U

10-32

0.038"

0.090"

0.340"

0.249"

0.040"

0.250"

0.280"

N/A

SS-032-2-ZC-U

10-32

0.054"

0.090"

0.340"

0.249"

0.056"

0.250"

0.280"

M45938/1-16

SS-032-3-ZC-U

10-32

0.087"

0.090"

0.340"

0.249"

0.090"

0.250"

0.280"

M45938/1-17

S-1224-1-ZC-U

12-24

0.038"

0.130"

0.370"

0.276"

0.040"

0.277"

0.310"

N/A

S-1224-2-ZC-U

12-24

0.054"

0.130"

0.370"

0.276"

0.056"

0.277"

0.310"

N/A

S-1224-3-ZC-U

12-24

0.087"

0.130"

0.370"

0.276"

0.090"

0.277"

0.310"

N/A

S-0420-0-ZC-U

1/4-20

0.045"

0.170"

0.440"

0.343"

0.047"

0.344"

0.340"

N/A

S-0420-1-ZC-U

1/4-20

0.054"

0.170"

0.440"

0.343"

0.056"

0.344"

0.340"

M45938/1-27

S-0420-2-ZC-U

1/4-20

0.087"

0.170"

0.440"

0.343"

0.090"

0.344"

0.340"

M45938/1-28

S-0420-3-ZC-U

1/4-20

0.120"

0.170"

0.440"

0.343"

0.125"

0.344"

0.340"

M45938/1-29

S-0428-1-ZC-U

1/4-28

0.054"

0.170"

0.440"

0.343"

0.056"

0.344"

0.340"

N/A

S-0428-2-ZC-U

1/4-28

0.087"

0.170"

0.440"

0.343"

0.090"

0.344"

0.340"

M45938/1-19

S-0428-3-ZC-U

1/4-28

0.120"

0.170"

0.440"

0.343"

0.125"

0.344"

0.340"

M45938/1-20

S-0518-1-ZC-U

5/16-18

0.054"

0.230"

0.500"

0.412"

0.056"

0.413"

0.380"

N/A

S-0518-2-ZC-U

5/16-18

0.087"

0.230"

0.500"

0.412"

0.090"

0.413"

0.380"

N/A

S-0518-3-ZC-U

5/16-18

0.120"

0.230"

0.500"

0.412"

0.125"

0.413"

0.380"

N/A

S-0524-1-ZC-U

5/16-24

0.054"

0.230"

0.500"

0.412"

0.056"

0.413"

0.380"

N/A

S-0524-2-ZC-U

5/16-24

0.087"

0.230"

0.500"

0.412"

0.090"

0.413"

0.380"

M45938/1-21

S-0524-3-ZC-U

5/16-24

0.120"

0.230"

0.500"

0.412"

0.125"

0.413"

0.380"

M45938/1-22

S-0616-1-ZC-U

3/8-16

0.087"

0.270"

0.560"

0.499"

0.090"

0.500"

0.440"

N/A

S-0616-2-ZC-U

3/8-16

0.120"

0.270"

0.560"

0.499"

0.125"

0.500"

0.440"

N/A

S-0616-3-ZC-U

3/8-16

0.235"

0.270"

0.560"

0.499"

0.250"

0.500"

0.440"

N/A

S-0624-1-ZC-U

3/8-24

0.087"

0.270"

0.560"

0.499"

0.090"

0.500"

0.440"

N/A

S-0624-2-ZC-U

3/8-24

0.120"

0.270"

0.560"

0.499"

0.125"

0.500"

0.440"

M45938/1-23

S-0624-3-ZC-U

3/8-24

0.235"

0.270"

0.560"

0.499"

0.250"

0.500"

0.440"

M45938/1-24

S-0813-1-ZC-U

1/2-13

0.120"

0.360"

0.810"

0.655"

0.125"

0.656"

0.630"

N/A

S-0813-2-ZC-U

1/2-13

0.235"

0.360"

0.810"

0.655"

0.250"

0.656"

0.630"

N/A

S-0820-1-ZC-U

1/2-20

0.120"

0.360"

0.810"

0.655"

0.125"

0.656"

0.630"

M45938/1-25

S-0820-2-ZC-U

1/2-20

0.235"

0.360"

0.810"

0.655"

0.250"

0.656"

0.630"

M45938/1-26

Series S-U, SS-U (Zinc Yellow) / Metric Sizes

• Shape- Round • Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Yellow Plated per ASTM B633
	Series S-U, SS-U Metric Sizes

Part
Number

Thread

"A"
(Shank)
Max.

"T"
Head
Height

"E"
Head
Height

"C" Max.
Body
Diameter

Min.
Sheet
Thickness

Hole
Size in
Sheet

Min.
Distance
to Edge

Mil-Spec

S-M2-0-ZC-U

M2 x 0.4

0.77
mm

1.50
mm

6.35
mm

4.2
mm

0.80
mm

4.22
mm

4.80
mm

N/A

S-M2-1-ZC-U

M2 x 0.4

0.97
mm

1.50
mm

6.35
mm

4.2
mm

1.00
mm

4.22
mm

4.80
mm

N/A

S-M2-2-ZC-U

M2 x 0.4

1.38
mm

1.50
mm

6.35
mm

4.2
mm

1.40
mm

4.22
mm

4.80
mm

N/A

S-M2.5-0-ZC-U

M2.5 x 0.45

0.77
mm

1.50
mm

6.35
mm

4.2
mm

0.80
mm

4.22
mm

4.80
mm

N/A

S-M2.5-1-ZC-U

M2.5 x 0.45

0.97
mm

1.50
mm

6.35
mm

4.2
mm

1.00
mm

4.22
mm

4.80
mm

N/A

S-M2.5-2-ZC-U

M2.5 x 0.45

1.38
mm

1.50
mm

6.35
mm

4.2
mm

1.40
mm

4.22
mm

4.80
mm

N/A

S-M3-0-ZC-U

M3 x 0.5

0.77
mm

1.50
mm

6.35
mm

4.2
mm

0.80
mm

4.22
mm

4.80
mm

N/A

S-M3-1-ZC-U

M3 x 0.5

0.97
mm

1.50
mm

6.35
mm

4.2
mm

1.00
mm

4.22
mm

4.80
mm

N/A

S-M3-2-ZC-U

M3 x 0.5

1.38
mm

1.50
mm

6.35
mm

4.2
mm

1.40
mm

4.22
mm

4.80
mm

N/A

S-M3.5-0-ZC-U

M3.5 x 0.6

0.77
mm

1.50
mm

7.11
mm

4.73
mm

0.80
mm

4.75
mm

5.60
mm

N/A

S-M3.5-1-ZC-U

M3.5 x 0.6

0.97
mm

1.50
mm

7.11
mm

4.73
mm

1.00
mm

4.75
mm

5.60
mm

N/A

S-M3.5-2-ZC-U

M3.5 x 0.6

1.38
mm

1.50
mm

7.11
mm

4.73
mm

1.40
mm

4.75
mm

5.60
mm

N/A

S-M4-0-ZC-U

M4 x 0.7

0.77
mm

2.00
mm

7.87
mm

5.38
mm

0.80
mm

5.41
mm

6.90
mm

N/A

S-M4-1-ZC-U

M4 x 0.7

0.97
mm

2.00
mm

7.87
mm

5.38
mm

1.00
mm

5.41
mm

6.90
mm

N/A

S-M4-2-ZC-U

M4 x 0.7

1.38
mm

2.00
mm

7.87
mm

5.38
mm

1.40
mm

5.41
mm

6.90
mm

N/A

SS-M5-0-ZC-U

M5 x 0.8

0.77
mm

2.00
mm

8.64
mm

6.33
mm

0.80
mm

6.35
mm

7.10
mm

N/A

SS-M5-1-ZC-U

M5 x 0.8

0.97
mm

2.00
mm

8.64
mm

6.33
mm

1.00
mm

6.35
mm

7.10
mm

N/A

SS-M5-2-ZC-U

M5 x 0.8

1.38
mm

2.00
mm

8.64
mm

6.33
mm

1.40
mm

6.35
mm

7.10
mm

N/A

S-M6-00-ZC-U

M6 x 1.0

0.89
mm

4.08
mm

11.18
mm

8.73
mm

0.92
mm

8.75
mm

8.60
mm

N/A

S-M6-0-ZC-U

M6 x 1.0

1.15
mm

4.08
mm

11.18
mm

8.73
mm

1.20
mm

8.75
mm

8.60
mm

N/A

S-M6-1-ZC-U

M6 x 1.0

1.38
mm

4.08
mm

11.18
mm

8.73
mm

1.40
mm

8.75
mm

8.60
mm

N/A

S-M6-2-ZC-U

M6 x 1.0

2.21
mm

4.08
mm

11.18
mm

8.73
mm

2.29
mm

8.75
mm

8.60
mm

N/A

S-M8-1-ZC-U

M8 x 1.25

1.38
mm

5.47
mm

12.70
mm

10.47
mm

1.40
mm

10.50
mm

9.70
mm

N/A

S-M8-2-ZC-U

M8 x 1.25

2.21
mm

5.47
mm

12.70
mm

10.47
mm

2.29
mm

10.50
mm

9.70
mm

N/A

S-M10-1-ZC-U

M10 x 1.5

2.21
mm

7.48
mm

17.35
mm

13.97
mm

2.31
mm

14.00
mm

13.50
mm

N/A

S-M10-2-ZC-U

M10 x 1.5

3.05
mm

7.48
mm

17.35
mm

13.97
mm

3.18
mm

14.00
mm

13.50
mm

N/A

S-M12-1-ZC-U

M12 x 1.75

3.05
mm

8.50
mm

20.57
mm

16.95
mm

3.18
mm

17.00
mm

16.00
mm

N/A

UNICORP Electronic Hardware - Self Clinching Fasteners

Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803

UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.

291 Cleveland St, Orange, New Jersey 07050  USA
Mailing Address:  P.O. Box 280, Orange, New Jersey 07051-0280  USA

Feedback I Legal Notice I Copyright  I Services I Jobs I Contact Us I Email Us I Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
