Thru Hole Threaded Standoffs SOS-U

Self Clinching Fasteners • Standoffs For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Thru - Hole Threaded SO, SOS, SOA, SO4

• Self-clinching • Installed quickly and easily in metal panels as thin as 0.040" /1.00 mm
• Installed using pneumatic, hydraulic, or mechanical press • No secondary operation needed prior to installation
• With thru-hole standoff, outer sheet surface is flush but not closed

American Standard Sizes: • Series SOS-U

Metric Sizes: • Series SOS-U

Series SOS-U

Series SOS-U / American Standard Sizes

• Head Shape- Hex • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380

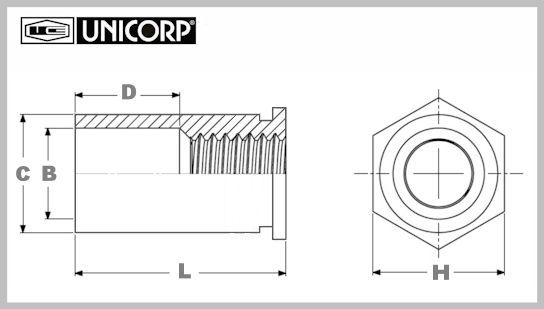

	Series SOS-U American Standard Sizes (SAE)

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

"D"

"B"
Counter-bore

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Min.
Distance
to Edge

Mil-Spec

SOS-440-4-U

4-40

3/16"

0.125"

0.000"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-4

SOS-440-6-U

4-40

3/16"

0.187"

0.000"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-6

SOS-440-8-U

4-40

3/16"

0.250"

0.000"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-8

SOS-440-10-U

4-40

3/16"

0.312"

0.000"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-10

SOS-440-12-U

4-40

3/16"

0.375"

0.187"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-12

SOS-440-14-U

4-40

3/16"

0.437"

0.187"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-14

SOS-440-16-U

4-40

3/16"

0.500"

0.187"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-16

SOS-440-18-U

4-40

3/16"

0.562"

0.187"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-18

SOS-440-20-U

4-40

3/16"

0.625"

0.312"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-20

SOS-440-22-U

4-40

3/16"

0.687"

0.312"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-22

SOS-440-24-U

4-40

3/16"

0.750"

0.312"

0.125"

0.040"

0.166"

0.165"

0.230"

NAS1129C04-24

SOS-6440-4-U

4-40

1/4"

0.125"

0.000"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-4

SOS-6440-6-U

4-40

1/4"

0.187"

0.000"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-6

SOS-6440-8-U

4-40

1/4"

0.250"

0.000"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-8

SOS-6440-10-U

4-40

1/4"

0.312"

0.000"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-10

SOS-6440-12-U

4-40

1/4"

0.375"

0.187"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-12

SOS-6440-14-U

4-40

1/4"

0.437"

0.187"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-14

SOS-6440-16-U

4-40

1/4"

0.500"

0.187"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-16

SOS-6440-18-U

4-40

1/4"

0.562"

0.187"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-18

SOS-6440-20-U

4-40

1/4"

0.625"

0.312"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-20

SOS-6440-22-U

4-40

1/4"

0.687"

0.312"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-22

SOS-6440-24-U

4-40

1/4"

0.750"

0.312"

0.125"

0.040"

0.213"

0.212"

0.270"

NAS1129C64-24

SOS-632-4-U

6-32

1/4"

0.125"

0.000"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-4

SOS-632-6-U

6-32

1/4"

0.187"

0.000"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-6

SOS-632-8-U

6-32

1/4"

0.250"

0.000"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-8

SOS-632-10-U

6-32

1/4"

0.312"

0.000"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-10

SOS-632-12-U

6-32

1/4"

0.375"

0.187"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-12

SOS-632-14-U

6-32

1/4"

0.437"

0.187"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-14

SOS-632-16-U

6-32

1/4"

0.500"

0.187"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-16

SOS-632-18-U

6-32

1/4"

0.562"

0.187"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-18

SOS-632-20-U

6-32

1/4"

0.625"

0.312"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-20

SOS-632-22-U

6-32

1/4"

0.687"

0.312"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-22

SOS-632-24-U

6-32

1/4"

0.750"

0.312"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-24

SOS-632-26-U

6-32

1/4"

0.812"

0.312"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-26

SOS-632-28-U

6-32

1/4"

0.875"

0.437"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-28

SOS-632-30-U

6-32

1/4"

0.937"

0.437"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-30

SOS-632-32-U

6-32

1/4"

1.000"

0.437"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-32

SOS-632-34-U

6-32

1/4"

1.062"

0.437"

0.156"

0.040"

0.213"

0.212"

0.270"

NAS1129C06-34

SOS-8632-4-U

6-32

5/16"

0.125"

0.000"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-4

SOS-8632-6-U

6-32

5/16"

0.187"

0.000"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-6

SOS-8632-8-U

6-32

5/16"

0.250"

0.000"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-8

SOS-8632-10-U

6-32

5/16"

0.312"

0.000"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-10

SOS-8632-12-U

6-32

5/16"

0.375"

0.187"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-12

SOS-8632-14-U

6-32

5/16"

0.437"

0.187"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-14

SOS-8632-16-U

6-32

5/16"

0.500"

0.187"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-16

SOS-8632-18-U

6-32

5/16"

0.562"

0.187"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-18

SOS-8632-20-U

6-32

5/16"

0.625"

0.312"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-20

SOS-8632-22-U

6-32

5/16"

0.687"

0.312"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-22

SOS-8632-24-U

6-32

5/16"

0.750"

0.312"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-24

SOS-8632-26-U

6-32

5/16"

0.812"

0.312"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-26

SOS-8632-28-U

6-32

5/16"

0.875"

0.437"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-28

SOS-8632-30-U

6-32

5/16"

0.937"

0.437"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-30

SOS-8632-32-U

6-32

5/16"

1.000"

0.437"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-32

SOS-8632-34-U

6-32

5/16"

1.062"

0.437"

0.156"

0.050"

0.281"

0.280"

0.310"

NAS1129C86-34

SOS-832-4-U

8-32

5/16"

0.125"

0.000"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-4

SOS-832-6-U

8-32

5/16"

0.187"

0.000"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-6

SOS-832-8-U

8-32

5/16"

0.250"

0.000"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-8

SOS-832-10-U

8-32

5/16"

0.312"

0.000"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-10

SOS-832-12-U

8-32

5/16"

0.375"

0.187"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-12

SOS-832-14-U

8-32

5/16"

0.437"

0.187"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-14

SOS-832-16-U

8-32

5/16"

0.500"

0.187"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-16

SOS-832-18-U

8-32

5/16"

0.562"

0.187"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-18

SOS-832-20-U

8-32

5/16"

0.625"

0.312"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-20

SOS-832-22-U

8-32

5/16"

0.687"

0.312"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-22

SOS-832-24-U

8-32

5/16"

0.750"

0.312"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-24

SOS-832-26-U

8-32

5/16"

0.812"

0.312"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-26

SOS-832-28-U

8-32

5/16"

0.875"

0.437"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-28

SOS-832-30-U

8-32

5/16"

0.937"

0.437"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-30

SOS-832-32-U

8-32

5/16"

1.000"

0.437"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-32

SOS-832-34-U

8-32

5/16"

1.062"

0.437"

0.188"

0.050"

0.281"

0.280"

0.310"

NAS1129C08-34

SOS-1032-4-U

10-32

5/16"

0.125"

0.000"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-4

SOS-1032-6-U

10-32

5/16"

0.187"

0.000"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-6

SOS-1032-8-U

10-32

5/16"

0.250"

0.000"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-8

SOS-1032-10-U

10-32

5/16"

0.312"

0.000"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-10

SOS-1032-12-U

10-32

5/16"

0.375"

0.187"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-12

SOS-1032-14-U

10-32

5/16"

0.437"

0.187"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-14

SOS-1032-16-U

10-32

5/16"

0.500"

0.187"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-16

SOS-1032-18-U

10-32

5/16"

0.562"

0.187"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-18

SOS-1032-20-U

10-32

5/16"

0.625"

0.312"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-20

SOS-1032-22-U

10-32

5/16"

0.687"

0.312"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-22

SOS-1032-24-U

10-32

5/16"

0.750"

0.312"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-24

SOS-1032-26-U

10-32

5/16"

0.812"

0.312"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-26

SOS-1032-28-U

10-32

5/16"

0.875"

0.437"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-28

SOS-1032-30-U

10-32

5/16"

0.937"

0.437"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-30

SOS-1032-32-U

10-32

5/16"

1.000"

0.437"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-32

SOS-1032-34-U

10-32

5/16"

1.062"

0.437"

0.203"

0.050"

0.281"

0.280"

0.310"

NAS1129C3-34

Series SOS-U / Metric Sizes

• Head Shape- Hex • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series SOS-U Metric Sizes

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

"D"

"B"
Counter-bore

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Min.
Distance
to Edge

Mil-Spec

SOS-M3-3-U

M3 x 0.5

4.80
mm

3.00
mm

0.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-4-U

M3 x 0.5

4.80
mm

4.00
mm

0.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-6-U

M3 x 0.5

4.80
mm

6.00
mm

0.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-8-U

M3 x 0.5

4.80
mm

8.00
mm

0.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-10-U

M3 x 0.5

4.80
mm

10.00
mm

4.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-12-U

M3 x 0.5

4.80
mm

12.00
mm

4.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-14-U

M3 x 0.5

4.80
mm

14.00
mm

4.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-16-U

M3 x 0.5

4.80
mm

16.00
mm

8.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-M3-18-U

M3 x 0.5

4.80
mm

18.00
mm

8.00
mm

3.20
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOS-3.5M3-3-U

M3 x 0.5

6.40
mm

3.00
mm

0.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-4-U

M3 x 0.5

6.40
mm

4.00
mm

0.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-6-U

M3 x 0.5

6.40
mm

6.00
mm

0.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-8-U

M3 x 0.5

6.40
mm

8.00
mm

0.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-10-U

M3 x 0.5

6.40
mm

10.00
mm

4.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-12-U

M3 x 0.5

6.40
mm

12.00
mm

4.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-14-U

M3 x 0.5

6.40
mm

14.00
mm

4.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-16-U

M3 x 0.5

6.40
mm

16.00
mm

8.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-3.5M3-18-U

M3 x 0.5

6.40
mm

18.00
mm

8.00
mm

3.20
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-3-U

M3.5 x 0.6

6.40
mm

3.00
mm

0.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-4-U

M3.5 x 0.6

6.40
mm

4.00
mm

0.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-6-U

M3.5 x 0.6

6.40
mm

6.00
mm

0.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-8-U

M3.5 x 0.6

6.40
mm

8.00
mm

0.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-10-U

M3.5 x 0.6

6.40
mm

10.00
mm

4.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-12-U

M3.5 x 0.6

6.40
mm

12.00
mm

4.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-14-U

M3.5 x 0.6

6.40
mm

14.00
mm

4.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-16-U

M3.5 x 0.6

6.40
mm

16.00
mm

8.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-18-U

M3.5 x 0.6

6.40
mm

18.00
mm

8.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-20-U

M3.5 x 0.6

6.40
mm

20.00
mm

8.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-22-U

M3.5 x 0.6

6.40
mm

22.00
mm

11.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M3.5-25-U

M3.5 x 0.6

6.40
mm

25.00
mm

11.00
mm

3.90
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOS-M4-3-U

M4 x 0.7

7.90
mm

3.00
mm

0.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-4-U

M4 x 0.7

7.90
mm

4.00
mm

0.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-6-U

M4 x 0.7

7.90
mm

6.00
mm

0.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-8-U

M4 x 0.7

7.90
mm

8.00
mm

0.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-10-U

M4 x 0.7

7.90
mm

10.00
mm

4.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-12-U

M4 x 0.7

7.90
mm

12.00
mm

4.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-14-U

M4 x 0.7

7.90
mm

14.00
mm

4.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-16-U

M4 x 0.7

7.90
mm

16.00
mm

8.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-18-U

M4 x 0.7

7.90
mm

18.00
mm

8.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-20-U

M4 x 0.7

7.90
mm

20.00
mm

8.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-22-U

M4 x 0.7

7.90
mm

22.00
mm

11.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M4-25-U

M4 x 0.7

7.90
mm

25.00
mm

11.00
mm

4.80
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-3-U

M5 x 0.8

7.90
mm

3.00
mm

0.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-4-U

M5 x 0.8

7.90
mm

4.00
mm

0.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-6-U

M5 x 0.8

7.90
mm

6.00
mm

0.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-8-U

M5 x 0.8

7.90
mm

8.00
mm

0.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-10-U

M5 x 0.8

7.90
mm

10.00
mm

4.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-12-U

M5 x 0.8

7.90
mm

12.00
mm

4.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-14-U

M5 x 0.8

7.90
mm

14.00
mm

4.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-16-U

M5 x 0.8

7.90
mm

16.00
mm

8.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-18-U

M5 x 0.8

7.90
mm

18.00
mm

8.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-20-U

M5 x 0.8

7.90
mm

20.00
mm

8.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-22-U

M5 x 0.8

7.90
mm

22.00
mm

11.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOS-M5-25-U

M5 x 0.8

7.90
mm

25.00
mm

11.00
mm

5.35
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

UNICORP Electronic Hardware - Self Clinching Fasteners

Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803

UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.

291 Cleveland St, Orange, New Jersey 07050  USA
Mailing Address:  P.O. Box 280, Orange, New Jersey 07051-0280  USA

Feedback I Legal Notice I Copyright  I Services I Jobs I Contact Us I Email Us I Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
