Grounding Standoffs SOSG-U, SOAG-U

Self Clinching Fasteners • Standoffs For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Grounding SOSG, SOAG

• Self-clinching • Used to ground PC boards • No serrated or star washers needed
• Installed in steel and aluminum chassis quickly and easily by squeezing into place
• Projecting teeth assure electrical contact with PC board circuit • Permanently mounted
• Used for sheets as thin as 0.040" /1.00 mm

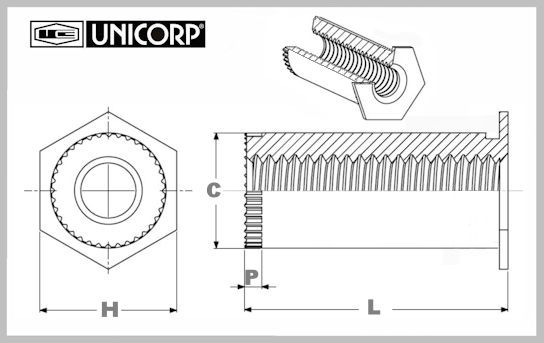

American Standard Sizes: • Series SOSG-U • Series SOAG-U

Metric Sizes: • Series SOSG-U • Series SOAG-U

Series SOSG-U

Series SOSG-U / American Standard Sizes

• Head Shape- Hex • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series SOSG-U American Standard Sizes (SAE)

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

Min.
Sheet Thickness

Hole Size
in Sheet

"C"
Barrel
O.D.

"P"
Nom.

Anvil
Hole Diameter

Min.
Distance
to Edge

Mil-Spec

SOSG-6440-4-U

4-40

1/4"

0.125"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOSG-6440-6-U

4-40

1/4"

0.187"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOSG-6440-8-U

4-40

1/4"

0.250"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOSG-6440-10-U

4-40

1/4"

0.312"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOSG-6440-12-U

4-40

1/4"

0.375"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOSG-6440-14-U

4-40

1/4"

0.437"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOSG-6440-16-U

4-40

1/4"

0.500"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOSG-8632-4-U

6-32

5/16"

0.125"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOSG-8632-6-U

6-32

5/16"

0.187"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOSG-8632-8-U

6-32

5/16"

0.250"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOSG-8632-10-U

6-32

5/16"

0.312"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOSG-8632-12-U

6-32

5/16"

0.375"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOSG-8632-14-U

6-32

5/16"

0.437"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOSG-8632-16-U

6-32

5/16"

0.500"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

Series SOSG-U / Metric Sizes

• Head Shape- Hex • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series SOSG-U Metric Sizes

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

"P"
Nom.

Anvil
Hole
Diameter

Min.
Distance
to Edge

Mil-Spec

SOSG-3.5M3-3-U

M3.5 x 0.5

6.40
mm

3.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOSG-3.5M3-4-U

M3.5 x 0.5

6.40
mm

4.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOSG-3.5M3-6-U

M3.5 x 0.5

6.40
mm

6.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOSG-3.5M3-8-U

M3.5 x 0.5

6.40
mm

8.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOSG-3.5M3-10-U

M3.5 x 0.5

6.40
mm

10.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOSG-3.5M3-12-U

M3.5 x 0.5

6.40
mm

12.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

Series SOAG-U

Series SOAG-U / American Standard Sizes

• Head Shape- Hex • Sheet Hardness- HRB 50 / HB 82 or Less • Material- Aluminum • Finish- None
	Series SOAG-U American Standard Sizes (SAE)

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

Min.
Sheet Thickness

Hole Size
in Sheet

"C"
Barrel
O.D.

"P"
Nom.

Anvil
Hole Diameter

Min.
Distance
to Edge

Mil-Spec

SOAG-6440-4-U

4-40

1/4"

0.125"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOAG-6440-6-U

4-40

1/4"

0.187"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOAG-6440-8-U

4-40

1/4"

0.250"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOAG-6440-10-U

4-40

1/4"

0.312"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOAG-6440-12-U

4-40

1/4"

0.375"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOAG-6440-14-U

4-40

1/4"

0.437"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOAG-6440-16-U

4-40

1/4"

0.500"

0.040"

0.213"

0.212"

0.030"

0.216"

0.270"

N/A

SOAG-8632-4-U

6-32

5/16"

0.125"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOAG-8632-6-U

6-32

5/16"

0.187"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOAG-8632-8-U

6-32

5/16"

0.250"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOAG-8632-10-U

6-32

5/16"

0.312"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOAG-8632-12-U

6-32

5/16"

0.375"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOAG-8632-14-U

6-32

5/16"

0.437"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

SOAG-8632-16-U

6-32

5/16"

0.500"

0.050"

0.281"

0.280"

0.030"

0.284"

0.310"

N/A

Series SOAG-U / Metric Sizes

• Head Shape- Hex • Sheet Hardness- HRB 50 / HB 82 or Less • Material- Aluminum • Finish- None
	Series SOAG-U Metric Sizes

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

"P"
Nom.

Anvil
Hole
Diameter

Min.
Distance
to Edge

Mil-Spec

SOAG-3.5M3-3-U

M3.5 x 0.5

6.40
mm

3.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOAG-3.5M3-4-U

M3.5 x 0.5

6.40
mm

4.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOAG-3.5M3-6-U

M3.5 x 0.5

6.40
mm

6.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOAG-3.5M3-8-U

M3.5 x 0.5

6.40
mm

8.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOAG-3.5M3-10-U

M3.5 x 0.5

6.40
mm

10.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A

SOAG-3.5M3-12-U

M3.5 x 0.5

6.40
mm

12.00
mm

1.00
mm

5.40
mm

5.39
mm

0.76
mm

5.50
mm

6.80
mm

N/A
