Thru Hole Unthreaded Standoffs SOA-U

Self Clinching Fasteners • Standoffs For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Thru - Hole Unthreaded SO, SOS, SOA

• Self-clinching • Unthreaded • Installed quickly and easily in metal panels as thin as 0.040" /1.00 mm
• Installed using pneumatic, hydraulic, or mechanical press • No secondary operation needed prior to installation
• With thru-hole standoff, outer sheet surface is flush but not closed

American Standard Sizes: • Series SOA-U

Metric Sizes: • Series SOA-U

Series SOA-U

Series SOA-U / American Standard Sizes

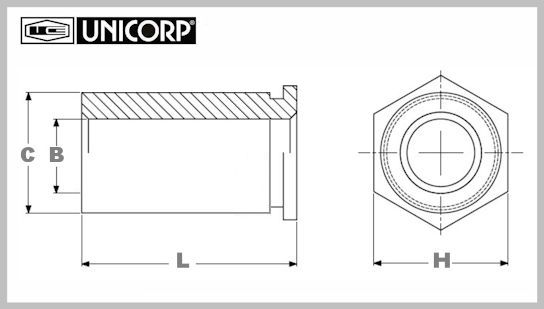

• Head Shape- Hex • Sheet Hardness- HRB 50 / HB 82 or Less • Material- Aluminum • Finish- None
	Series SOA-U American Standard Sizes (SAE)

Part
Number

"H"
Nom.

"L"
Body
Length

"B"
Thru-Hole
Diameter

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Min.
Distance
to Edge

Mil-Spec

SOA-4116-4-U

3/16"

0.125"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-6-U

3/16"

0.187"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-8-U

3/16"

0.250"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-10-U

3/16"

0.312"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-12-U

3/16"

0.375"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-14-U

3/16"

0.437"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-16-U

3/16"

0.500"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-18-U

3/16"

0.562"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-20-U

3/16"

0.625"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-22-U

3/16"

0.687"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-4116-24-U

3/16"

0.750"

0.116"

0.040"

0.166"

0.165"

0.230"

N/A

SOA-6116-4-U

1/4"

0.125"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-6-U

1/4"

0.187"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-8-U

1/4"

0.250"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-10-U

1/4"

0.312"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-12-U

1/4"

0.375"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-14-U

1/4"

0.437"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-16-U

1/4"

0.500"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-18-U

1/4"

0.562"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-20-U

1/4"

0.625"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-22-U

1/4"

0.687"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6116-24-U

1/4"

0.750"

0.116"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-4-U

1/4"

0.125"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-6-U

1/4"

0.187"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-8-U

1/4"

0.250"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-10-U

1/4"

0.312"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-12-U

1/4"

0.375"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-14-U

1/4"

0.437"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-16-U

1/4"

0.500"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-18-U

1/4"

0.562"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-20-U

1/4"

0.625"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-22-U

1/4"

0.687"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-6143-24-U

1/4"

0.750"

0.143"

0.040"

0.213"

0.212"

0.270"

N/A

SOA-8143-4-U

5/16"

0.125"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-6-U

5/16"

0.187"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-8-U

5/16"

0.250"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-10-U

5/16"

0.312"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-12-U

5/16"

0.375"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-14-U

5/16"

0.437"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-16-U

5/16"

0.500"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-18-U

5/16"

0.562"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-20-U

5/16"

0.625"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-22-U

5/16"

0.687"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8143-24-U

5/16"

0.750"

0.143"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-4-U

5/16"

0.125"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-6-U

5/16"

0.187"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-8-U

5/16"

0.250"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-10-U

5/16"

0.312"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-12-U

5/16"

0.375"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-14-U

5/16"

0.437"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-16-U

5/16"

0.500"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-18-U

5/16"

0.562"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-20-U

5/16"

0.625"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-22-U

5/16"

0.687"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8169-24-U

5/16"

0.750"

0.169"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-4-U

5/16"

0.125"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-6-U

5/16"

0.187"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-8-U

5/16"

0.250"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-10-U

5/16"

0.312"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-12-U

5/16"

0.375"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-14-U

5/16"

0.437"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-16-U

5/16"

0.500"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-18-U

5/16"

0.562"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-20-U

5/16"

0.625"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-22-U

5/16"

0.687"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

SOA-8194-24-U

5/16"

0.750"

0.194"

0.050"

0.281"

0.280"

0.310"

N/A

Series SOA-U / Metric Sizes

• Head Shape- Hex • Sheet Hardness- HRB 50 / HB 82 or Less • Material- Aluminum • Finish- None
	Series SOA-U Metric Sizes

Part
Number

"H"
Nom.

"L"
Body
Length

"B"
Thru-Hole
Diameter

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Min.
Distance
to Edge

Mil-Spec

SOA-43.1-3-U

4.80
mm

3.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-4-U

4.80
mm

4.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-6-U

4.80
mm

6.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-8-U

4.80
mm

8.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-10-U

4.80
mm

10.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-12-U

4.80
mm

12.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-14-U

4.80
mm

14.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-16-U

4.80
mm

16.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-18-U

4.80
mm

18.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-43.1-20-U

4.80
mm

20.00
mm

3.10
mm

1.00
mm

4.22
mm

4.20
mm

6.00
mm

N/A

SOA-63.1-3-U

6.40
mm

3.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-4-U

6.40
mm

4.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-6-U

6.40
mm

6.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-8-U

6.40
mm

8.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-10-U

6.40
mm

10.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-12-U

6.40
mm

12.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-14-U

6.40
mm

14.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-16-U

6.40
mm

16.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-18-U

6.40
mm

18.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.1-20-U

6.40
mm

20.00
mm

3.10
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-3-U

6.40
mm

3.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-4-U

6.40
mm

4.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-6-U

6.40
mm

6.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-8-U

6.40
mm

8.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-10-U

6.40
mm

10.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-12-U

6.40
mm

12.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-14-U

6.40
mm

14.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-16-U

6.40
mm

16.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-18-U

6.40
mm

18.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-63.6-20-U

6.40
mm

20.00
mm

3.60
mm

1.00
mm

5.41
mm

5.39
mm

6.80
mm

N/A

SOA-83.6-3-U

7.90
mm

3.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-4-U

7.90
mm

4.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-6-U

7.90
mm

6.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-8-U

7.90
mm

8.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-10-U

7.90
mm

10.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-12-U

7.90
mm

12.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-14-U

7.90
mm

14.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-16-U

7.90
mm

16.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-18-U

7.90
mm

18.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-83.6-20-U

7.90
mm

20.00
mm

3.60
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-3-U

7.90
mm

3.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-4-U

7.90
mm

4.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-6-U

7.90
mm

6.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-8-U

7.90
mm

8.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-10-U

7.90
mm

10.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-12-U

7.90
mm

12.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-14-U

7.90
mm

14.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-16-U

7.90
mm

16.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-18-U

7.90
mm

18.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-84.1-20-U

7.90
mm

20.00
mm

4.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-3-U

7.90
mm

3.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-4-U

7.90
mm

4.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-6-U

7.90
mm

6.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-8-U

7.90
mm

8.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-10-U

7.90
mm

10.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-12-U

7.90
mm

12.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-14-U

7.90
mm

14.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-16-U

7.90
mm

16.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-18-U

7.90
mm

18.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

SOA-85.1-20-U

7.90
mm

20.00
mm

5.10
mm

1.27
mm

7.14
mm

7.12
mm

8.00
mm

N/A

UNICORP Electronic Hardware - Self Clinching Fasteners

Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803

UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.

291 Cleveland St, Orange, New Jersey 07050  USA
Mailing Address:  P.O. Box 280, Orange, New Jersey 07051-0280  USA

Feedback I Legal Notice I Copyright  I Services I Jobs I Contact Us I Email Us I Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
