Surface Mount Retainer Captive Screws  SMTPR-U

Self Clinching Fasteners  •  Fasteners for PC Boards
American Standard (Inches) & Metric Sizes
• Self-clinching    • Provided on 13" recyclable reel    • Patch for vacuum pickup
• Used as PC Board attachment    • Installed quickly and easily
• Minimum sheet thickness of 0.060" /0.50 mm
American Standard Sizes:   • Series  SMTPR-U
Metric Sizes:   • Series  SMTPR-U
Series  SMTPR-U
Series  SMTPR-U  /  American Standard Sizes
      • Sheet Hardness-  N/A
      • Material-  Carbon Steel
      • Mil-Spec-  N/A
      • "DT" Finish-  Electro-Plated Matte-Tin per ASTM B 545,
                   Class A with Clear Preservative Coating, Annealed
      • "ET" Finish-  Electro-Plated Bright Tin per ASTM B545,
                             Class B with Preservative Coating

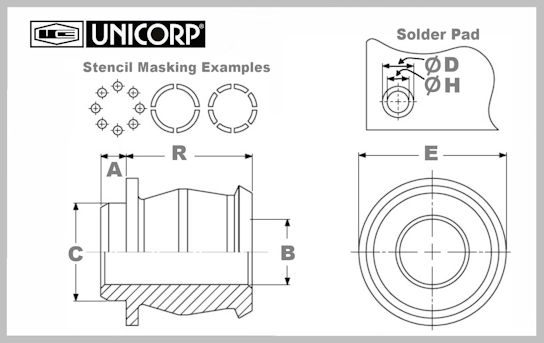

Series SMTPR-U
American Standard Sizes
(SAE)
Part
Number		 "A"
(Shank)
Max.		 "B" "C"
Max.		 "E"
Nom.		 "R" Min.
Sheet
Thickness		 "H" Hole
Size in
Sheet		 "D" Min.
Solder
Pad
  SMTPR-6-1DT-U 0.060" 0.167" 0.249" 0.375" 0.325" 0.060" 0.250" 0.396"
  SMTPR-6-1ET-U 0.060" 0.167" 0.249" 0.375" 0.325" 0.060" 0.250" 0.396"
Series  SMTPR-U  /  Metric Sizes
      • Sheet Hardness-  N/A
      • Material-  Carbon Steel
      • Mil-Spec-  N/A
      • "DT" Finish-  Electro-Plated Matte-Tin per ASTM B 545,
                   Class A with Clear Preservative Coating, Annealed
      • "ET" Finish-  Electro-Plated Bright Tin per ASTM B545,
                             Class B with Preservative Coating
Series SMTPR-U
Metric Sizes
Part
Number		 "A"
(Shank)
Max.		 "B" "C"
Max.		 "E"
Nom.		 "R" Min.
Sheet
Thickness		 "H" Hole
Size in
Sheet		 "D" Min.
Solder
Pad
  SMTPR-6-1DT-U 1.53
mm		 4.24
mm		 6.33
mm		 9.53
mm		 8.26
mm		 1.53
mm		 6.35
mm		 10.06
mm
  SMTPR-6-1ET-U 1.53
mm		 4.24
mm		 6.33
mm		 9.53
mm		 8.26
mm		 1.53
mm		 6.35
mm		 10.06
mm
