Lock Nuts SL-U Self Clinching Fasteners • Nuts For Sheet Metal American Standard (Inches) & Metric Sizes |
|||||||||||||||||||||
|
|||||||||||||||||||||
• Self-clinching • Self-locking • Installed quickly and easily | |||||||||||||||||||||
American Standard Sizes: • Series SL-U | |||||||||||||||||||||
Metric Sizes: • Series SL-U | |||||||||||||||||||||
Series SL-U | |||||||||||||||||||||

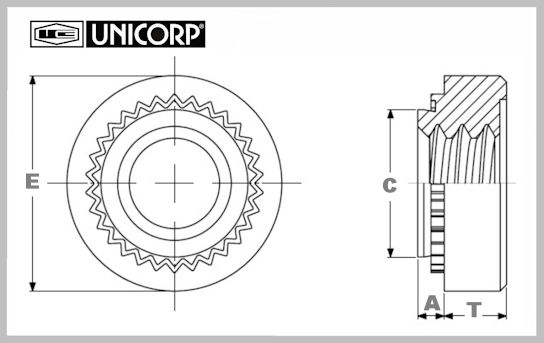

Series SL-U / American Standard Sizes | |||||||||||||||||||||
|
|||||||||||||||||||||
Part Number |
Thread |
"A" (Shank) Max. |
"T" Head Height |
"E" Head Diameter |
"C" Body Diameter |
Min. Sheet Thickness |
Hole Size in Sheet |
Min. Distance to Edge |
|||||||||||||
SL-440-1ZI-U | 4-40 | 0.038" | 0.070" | 0.250" | 0.165" | 0.040" | 0.166" | 0.190" | |||||||||||||
SL-632-1ZI-U | 6-32 | 0.038" | 0.070" | 0.280" | 0.187" | 0.040" | 0.188" | 0.220" | |||||||||||||
SL-832-1ZI-U | 8-32 | 0.038" | 0.090" | 0.310" | 0.212" | 0.040" | 0.213" | 0.270" | |||||||||||||
SL-032-1ZI-U | 10-32 | 0.038" | 0.090" | 0.340" | 0.249" | 0.040" | 0.250" | 0.280" | |||||||||||||
SL-0420-1ZI-U | 1/4-20 | 0.054" | 0.170" | 0.440" | 0.343" | 0.056" | 0.344" | 0.340" | |||||||||||||
SL-0518-1ZI-U | 5/16-18 | 0.054" | 0.230" | 0.500" | 0.412" | 0.056" | 0.413" | 0.380" | |||||||||||||
SL-440-2ZI-U | 4-40 | 0.054" | 0.070" | 0.250" | 0.165" | 0.056" | 0.166" | 0.190" | |||||||||||||
SL-632-2ZI-U | 6-32 | 0.054" | 0.070" | 0.280" | 0.187" | 0.056" | 0.188" | 0.220" | |||||||||||||
SL-832-2ZI-U | 8-32 | 0.054" | 0.090" | 0.310" | 0.212" | 0.056" | 0.213" | 0.270" | |||||||||||||
SL-032-2ZI-U | 10-32 | 0.054" | 0.090" | 0.340" | 0.249" | 0.056" | 0.250" | 0.280" | |||||||||||||
SL-0420-2ZI-U | 1/4-20 | 0.087" | 0.170" | 0.440" | 0.343" | 0.091" | 0.344" | 0.340" | |||||||||||||
SL-0518-2ZI-U | 5/16-18 | 0.087" | 0.230" | 0.500" | 0.412" | 0.091" | 0.413" | 0.380" | |||||||||||||
![]() |
|||||||||||||||||||||
Series SL-U / Metric Sizes | |||||||||||||||||||||
|
|||||||||||||||||||||
Part Number |
Thread |
"A" (Shank) Max. |
"T" Head Height |
"E" Head Diameter |
"C" Body Diameter |
Min. Sheet Thickness |
Hole Size in Sheet |
Min. Distance to Edge |
|||||||||||||
SL-M3-1ZI-U | M3 x 0.5 |
0.98 mm |
1.50 mm |
6.35 mm |
4.20 mm |
1.00 mm |
4.22 mm |
4.80 mm |
|||||||||||||
SL-M3.5-1ZI-U | M3.5 x 0.6 |
0.98 mm |
1.50 mm |
7.11 mm |
4.73 mm |
1.00 mm |
4.75 mm |
5.60 mm |
|||||||||||||
SL-M4-1ZI-U | M4 x 0.7 |
0.98 mm |
2.00 mm |
7.87 mm |
5.38 mm |
1.00 mm |
5.41 mm |
6.90 mm |
|||||||||||||
SL-M5-1ZI-U | M5 x 0.8 |
0.98 mm |
2.00 mm |
8.64 mm |
6.33 mm |
1.00 mm |
6.35 mm |
7.10 mm |
|||||||||||||
SL-M6-1ZI-U | M6 x 1.0 |
1.38 mm |
4.08 mm |
11.18 mm |
8.73 mm |
1.40 mm |
8.75 mm |
8.60 mm |
|||||||||||||
SL-M8-1ZI-U | M8 x 1.25 |
1.38 mm |
5.47 mm |
12.70 mm |
10.47 mm |
1.40 mm |
10.50 mm |
9.70 mm |
|||||||||||||
SL-M3-2ZI-U | M3 x 0.5 |
1.38 mm |
1.50 mm |
6.35 mm |
4.20 mm |
1.40 mm |
4.22 mm |
4.80 mm |
|||||||||||||
SL-M3.5-2ZI-U | M3.5 x 0.6 |
1.38 mm |
1.50 mm |
7.11 mm |
4.73 mm |
1.40 mm |
4.75 mm |
5.60 mm |
|||||||||||||
SL-M4-2ZI-U | M4 x 0.7 |
1.38 mm |
2.00 mm |
7.87 mm |
5.38 mm |
1.40 mm |
5.41 mm |
6.90 mm |
|||||||||||||
SL-M5-2ZI-U | M5 x 0.8 |
1.38 mm |
2.00 mm |
8.64 mm |
6.33 mm |
1.40 mm |
6.35 mm |
7.10 mm |
|||||||||||||
SL-M6-2ZI-U | M6 x 1.0 |
2.21 mm |
4.08 mm |
11.18 mm |
8.73 mm |
2.30 mm |
8.75 mm |
8.60 mm |
|||||||||||||
SL-M8-2ZI-U | M8 x 1.25 |
2.21 mm |
5.47 mm |
12.70 mm |
10.47 mm |
2.30 mm |
10.50 mm |
9.70 mm |
|||||||||||||
![]() |
![]() |
||||||||||||||||||||
