Swaging Collar Studs SGPC-U

Self Clinching Fasteners • Studs for Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Swaging Collar Studs SGPC

• Self-clinching • Non-flush • Installed quickly and easily
• Used to attach multiple panels or dissimilar panel materials • Minimum sheet thickness of 0.024" /0.60 mm

American Standard Sizes: • Series SGPC-U

Metric Sizes: • Series SGPC-U

Series SGPC-U

Series SGPC-U / American Standard Sizes

• Head Shape- Round • Sheet Hardness- Any • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A

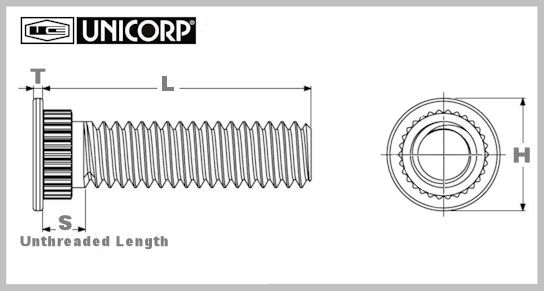

	Series SGPC-U American Standard Sizes (SAE)

Part
Number

Thread

"S"
Max.

"H"
Head
Diameter

"L"
Overall
Length

"T"

Min.
Sheet
Thickness

Hole
Size in
Sheet

Hole Diameter
of Attached Panel

Min.
Distance
to Edge

SGPC-256-5-U

2-56

0.107"

0.189"

0.312"

0.020"

0.024" - 0.047"

0.145"

0.182"

0.130"

SGPC-256-6-U

2-56

0.107"

0.189"

0.375"

0.020"

0.024" - 0.047"

0.145"

0.182"

0.130"

SGPC-256-8-U

2-56

0.107"

0.189"

0.500"

0.020"

0.024" - 0.047"

0.145"

0.182"

0.130"

SGPC-256-10-U

2-56

0.107"

0.189"

0.625"

0.020"

0.024" - 0.047"

0.145"

0.182"

0.130"

SGPC-256-12-U

2-56

0.107"

0.189"

0.750"

0.020"

0.024" - 0.047"

0.145"

0.182"

0.130"

SGPC-440-5-U

4-40

0.121"

0.228"

0.312"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-440-6-U

4-40

0.121"

0.228"

0.375"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-440-8-U

4-40

0.121"

0.228"

0.500"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-440-10-U

4-40

0.121"

0.228"

0.625"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-440-12-U

4-40

0.121"

0.228"

0.750"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-440-14-U

4-40

0.121"

0.228"

0.875"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-440-16-U

4-40

0.121"

0.228"

1.000"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-440-20-U

4-40

0.121"

0.228"

1.250"

0.024"

0.024" - 0.047"

0.171"

0.205"

0.160"

SGPC-632-5-U

6-32

0.133"

0.256"

0.312"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-6-U

6-32

0.133"

0.256"

0.375"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-8-U

6-32

0.133"

0.256"

0.500"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-10-U

6-32

0.133"

0.256"

0.625"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-12-U

6-32

0.133"

0.256"

0.750"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-14-U

6-32

0.133"

0.256"

0.875"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-16-U

6-32

0.133"

0.256"

1.000"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-20-U

6-32

0.133"

0.256"

1.250"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-632-24-U

6-32

0.133"

0.256"

1.500"

0.024"

0.024" - 0.047"

0.196"

0.229"

0.180"

SGPC-832-5-U

8-32

0.133"

0.279"

0.312"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-6-U

8-32

0.133"

0.279"

0.375"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-8-U

8-32

0.133"

0.279"

0.500"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-10-U

8-32

0.133"

0.279"

0.625"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-12-U

8-32

0.133"

0.279"

0.750"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-14-U

8-32

0.133"

0.279"

0.875"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-16-U

8-32

0.133"

0.279"

1.000"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-20-U

8-32

0.133"

0.279"

1.250"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-832-24-U

8-32

0.133"

0.279"

1.500"

0.024"

0.024" - 0.047"

0.223"

0.259"

0.200"

SGPC-032-5-U

10-32

0.135"

0.307"

0.312"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-6-U

10-32

0.135"

0.307"

0.375"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-8-U

10-32

0.135"

0.307"

0.500"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-10-U

10-32

0.135"

0.307"

0.625"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-12-U

10-32

0.135"

0.307"

0.750"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-14-U

10-32

0.135"

0.307"

0.875"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-16-U

10-32

0.135"

0.307"

1.000"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-20-U

10-32

0.135"

0.307"

1.250"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-032-24-U

10-32

0.135"

0.307"

1.500"

0.024"

0.024" - 0.047"

0.249"

0.280"

0.210"

SGPC-0420-6-U

1/4-20

0.173"

0.366"

0.375"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

SGPC-0420-8-U

1/4-20

0.173"

0.366"

0.500"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

SGPC-0420-10-U

1/4-20

0.173"

0.366"

0.625"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

SGPC-0420-12-U

1/4-20

0.173"

0.366"

0.750"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

SGPC-0420-14-U

1/4-20

0.173"

0.366"

0.875"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

SGPC-0420-16-U

1/4-20

0.173"

0.366"

1.000"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

SGPC-0420-20-U

1/4-20

0.173"

0.366"

1.250"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

SGPC-0420-24-U

1/4-20

0.173"

0.366"

1.500"

0.028"

0.024" - 0.047"

0.309"

0.343"

0.250"

Series SGPC-U / Metric Sizes

• Head Shape- Round • Sheet Hardness- Any • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A
	Series SGPC-U Metric Sizes

Part
Number

Thread

"S"
Max.

"H"
Head
Diameter

"L"
Overall
Length

"T"
Max.

Min.
Sheet
Thickness

Hole
Size in
Sheet

Hole Diameter
of Attached Panel

Min.
Distance
to Edge

SGPC-M2.5-8-U

M2.5 x 0.45

2.70
mm

5.00
mm

8.00
mm

0.50
mm

0.60 - 1.20
mm

4.00
mm

4.95
mm

3.90
mm

SGPC-M2.5-10-U

M2.5 x 0.45

2.70
mm

5.00
mm

10.00
mm

0.50
mm

0.60 - 1.20
mm

4.00
mm

4.95
mm

3.90
mm

SGPC-M2.5-12-U

M2.5 x 0.45

2.70
mm

5.00
mm

12.00
mm

0.50
mm

0.60 - 1.20
mm

4.00
mm

4.95
mm

3.90
mm

SGPC-M2.5-15-U

M2.5 x 0.45

2.70
mm

5.00
mm

15.00
mm

0.50
mm

0.60 - 1.20
mm

4.00
mm

4.95
mm

3.90
mm

SGPC-M2.5-18-U

M2.5 x 0.45

2.70
mm

5.00
mm

18.00
mm

0.50
mm

0.60 - 1.20
mm

4.00
mm

4.95
mm

3.90
mm

SGPC-M3-8-U

M3 x 0.5

2.80
mm

6.00
mm

8.00
mm

0.60
mm

0.60 - 1.20
mm

4.50
mm

5.45
mm

4.30
mm

SGPC-M3-10-U

M3 x 0.5

2.80
mm

6.00
mm

10.00
mm

0.60
mm

0.60 - 1.20
mm

4.50
mm

5.45
mm

4.30
mm

SGPC-M3-12-U

M3 x 0.5

2.80
mm

6.00
mm

12.00
mm

0.60
mm

0.60 - 1.20
mm

4.50
mm

5.45
mm

4.30
mm

SGPC-M3-15-U

M3 x 0.5

2.80
mm

6.00
mm

15.00
mm

0.60
mm

0.60 - 1.20
mm

4.50
mm

5.45
mm

4.30
mm

SGPC-M3-18-U

M3 x 0.5

2.80
mm

6.00
mm

18.00
mm

0.60
mm

0.60 - 1.20
mm

4.50
mm

5.45
mm

4.30
mm

SGPC-M3-20-U

M3 x 0.5

2.80
mm

6.00
mm

20.00
mm

0.60
mm

0.60 - 1.20
mm

4.50
mm

5.45
mm

4.30
mm

SGPC-M3-25-U

M3 x 0.5

2.80
mm

6.00
mm

25.00
mm

0.60
mm

0.60 - 1.20
mm

4.50
mm

5.45
mm

4.30
mm

SGPC-M4-8-U

M4 x 0.7

3.20
mm

7.00
mm

8.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M4-10-U

M4 x 0.7

3.20
mm

7.00
mm

10.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M4-12-U

M4 x 0.7

3.20
mm

7.00
mm

12.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M4-15-U

M4 x 0.7

3.20
mm

7.00
mm

15.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M4-18-U

M4 x 0.7

3.20
mm

7.00
mm

18.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M4-20-U

M4 x 0.7

3.20
mm

7.00
mm

20.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M4-25-U

M4 x 0.7

3.20
mm

7.00
mm

25.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M4-30-U

M4 x 0.7

3.20
mm

7.00
mm

30.00
mm

0.60
mm

0.60 - 1.20
mm

5.50
mm

6.30
mm

4.90
mm

SGPC-M5-8-U

M5 x 0.8

3.50
mm

8.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-10-U

M5 x 0.8

3.50
mm

8.00
mm

10.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-12-U

M5 x 0.8

3.50
mm

8.00
mm

12.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-15-U

M5 x 0.8

3.50
mm

8.00
mm

15.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-18-U

M5 x 0.8

3.50
mm

8.00
mm

18.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-20-U

M5 x 0.8

3.50
mm

8.00
mm

20.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-25-U

M5 x 0.8

3.50
mm

8.00
mm

25.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-30-U

M5 x 0.8

3.50
mm

8.00
mm

30.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M5-35-U

M5 x 0.8

3.50
mm

8.00
mm

35.00
mm

0.60
mm

0.60 - 1.20
mm

6.50
mm

7.45
mm

5.50
mm

SGPC-M6-10-U

M6 x 1.0

3.90
mm

9.00
mm

10.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

SGPC-M6-12-U

M6 x 1.0

3.90
mm

9.00
mm

12.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

SGPC-M6-15-U

M6 x 1.0

3.90
mm

9.00
mm

15.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

SGPC-M6-18-U

M6 x 1.0

3.90
mm

9.00
mm

18.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

SGPC-M6-20-U

M6 x 1.0

3.90
mm

9.00
mm

20.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

SGPC-M6-25-U

M6 x 1.0

3.90
mm

9.00
mm

25.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

SGPC-M6-30-U

M6 x 1.0

3.90
mm

9.00
mm

30.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

SGPC-M6-35-U

M6 x 1.0

3.90
mm

9.00
mm

35.00
mm

0.70
mm

0.60 - 1.20
mm

7.50
mm

8.30
mm

6.20
mm

UNICORP Electronic Hardware - Self Clinching Fasteners

Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803

UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.

291 Cleveland St, Orange, New Jersey 07050  USA
Mailing Address:  P.O. Box 280, Orange, New Jersey 07051-0280  USA

Feedback I Legal Notice I Copyright  I Services I Jobs I Contact Us I Email Us I Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
