Spinning Flare Nuts  SFN-U

Self Clinching Fasteners  •  Nuts For Sheet Metal
American Standard (Inches) & Metric Sizes
• Self-clinching     • Installed quickly and easily by pressing it into mounting hole     • Flanged hex nut
• One side remains flush    • Reduces loose hardware    • Used in any sheet hardness
• Permanently captive, spins freely    • Only available in metric sizes
Series  SFN-U
Series  SFN-U  /  Metric Sizes
      • Sheet Hardness-  Any
      • Material-  Carbon Steel
      • Finish-  Zinc Clear Plated per ASTM B633
      • Mil-Spec-  N/A

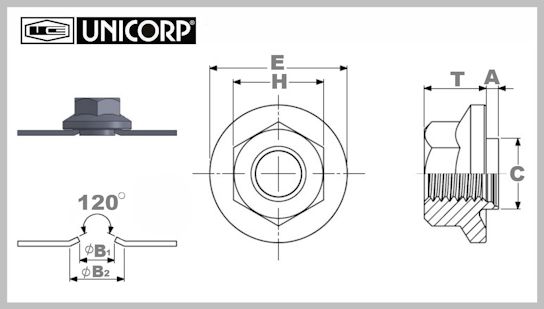

Series SFN-U
Metric Sizes
Part
Number		 Thread "A"
Shank Max.		 "C"
Max.		 "E" "H" "T" Min. Sheet
Thickness		 "B1" Hole
Size
in Sheet		 "B2" Min.
Panel
Emboss
Diameter
SFN-M5-1-ZI-U M5 x 0.8 1.30
mm		 7.25
mm		 12.80
mm		 7.98
mm		 6.00
mm		 1.00
mm		 7.50
mm		 9.20
mm
SFN-M5-2-ZI-U M5 x 0.8 1.80
mm		 7.25
mm		 12.80
mm		 7.98
mm		 6.00
mm		 1.50
mm		 7.50
mm		 9.20
mm
SFN-M6-00-ZI-U M6 x 1.0 1.30
mm		 8.50
mm		 15.50
mm		 9.98
mm		 7.00
mm		 1.00
mm		 8.75
mm		 11.35
mm
SFN-M6-1-ZI-U M6 x 1.0 1.80
mm		 8.50
mm		 15.50
mm		 9.98
mm		 7.00
mm		 1.50
mm		 8.75
mm		 11.35
mm
SFN-M8-00-ZI-U M8 x 1.25 1.30
mm		 10.25
mm		 20.00
mm		 12.98
mm		 9.00
mm		 1.00
mm		 10.50
mm		 13.80
mm
SFN-M8-1-ZI-U M8 x 1.25 1.80
mm		 10.25
mm		 20.00
mm		 12.98
mm		 9.00
mm		 1.50
mm		 10.50
mm		 13.80
mm
