Spring-Loaded Spinning Clinch Bolt
Captive Panel Screw - Tool Installation Only  SCBR-U

Self Clinching Fasteners  •  Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes
• Spring-loaded    • Self-clinching    • Remain captive in sheets    • Installed by pressing into hole    • Tool installation only
American Standard Sizes:   • Series SCBR-U
Metric Sizes:   • Series SCBR-U
Series SCBR-U
Series  SCBR-U  /  American Standard Sizes
      • Min. Sheet Thickness-  0.040"
      • Sheet Hardness-  HRB 80 / HB 150 or Less
      • Material-  Heat-Treated Carbon Steel
      • Finish-  Zinc Clear Plated per ASTM B633
      • Mil-Spec-  N/A
Series SCBR-U
American Standard Sizes (SAE)
Part

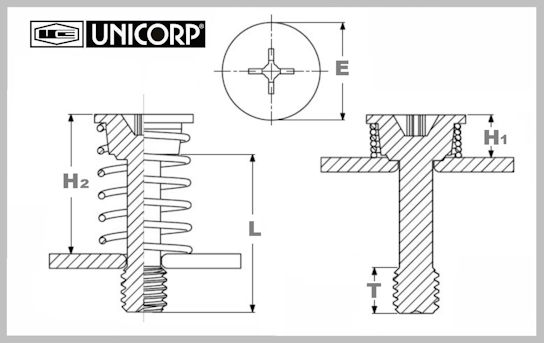

Number		 Thread "E" "H"
Nom.		 "H2"
Ref.		 "L" "T"
Nom.		 Driver
Size		 Hole
Size
in Sheet		 Min.
Distance
to Edge
  SCBR-440-8-ZI-U 4-40 0.348" 0.165" 0.495" 0.500" 0.130" #1 Phillips 0.112" 0.175"
  SCBR-632-8-ZI-U 6-32 0.381" 0.170" 0.500" 0.500" 0.130" #2 Phillips 0.138" 0.190"
  SCBR-832-8-ZI-U 8-32 0.410" 0.175" 0.505" 0.500" 0.130" #2 Phillips 0.164" 0.205"
Series  SCBR-U  /  Metric Sizes
      • Min. Sheet Thickness-  1.02 mm
      • Sheet Hardness-  HRB 80 / HB 150 or Less
      • Material-  Heat-Treated Carbon Steel
      • Finish-  Zinc Clear Plated per ASTM B633
      • Mil-Spec-  N/A
Series SCBR-U
Metric Sizes
Part
Number		 Thread "E" "H"
Nom.		 "H2"
Ref.		 "L" "T"
Nom.		 Driver
Size		 Hole
Size
in Sheet		 Min.
Distance
to Edge
  SCBR-M3-12-ZI-U M3 x 0.5 9.10
mm		 4.20
mm		 11.80
mm		 12.00
mm		 3.30
mm		 #1 Phillips 3.00
mm		 4.50
mm
  SCBR-M4-12-ZI-U M4 x 0.7 10.70
mm		 4.50
mm		 12.10
mm		 12.00
mm		 3.30
mm		 #2 Phillips 4.00
mm		 5.40
mm
