Spinning Clinch Bolt Captive Panel Screw
Without Spring - Tool Installation Only SCBJ-U

Self Clinching Fasteners • Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Spinning Clinch Bolt Captive Panel Screw without Spring - Tool Installation Only SCBJ

• No spring • Remain captive in sheets • Tool installation only

American Standard Sizes: • Series SCBJ-U

Metric Sizes: • Series SCBJ-U

Series SCBJ-U

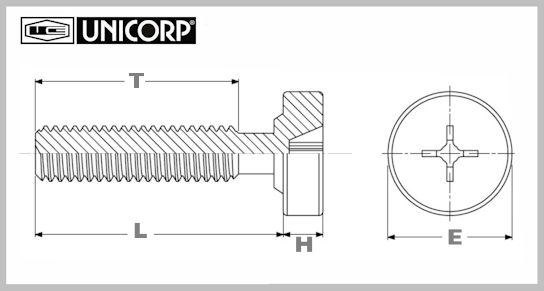

Series SCBJ-U / American Standard Sizes
• Type- Jacking • Min. Sheet Thickness- 0.040" • Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat-Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633 • Mil-Spec- N/A
