Spring-Loaded Locating Pins PSL2-U, PTL2-U

Self Clinching Fasteners • Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Spring-Loaded Locating Pins PSL2, PTL2

• Spring loaded • Used on drawer slides and equipment consoles • Reverse side is flush when plunger head held open
• Plunger head is held open when pulled out and rotated

American Standard Sizes: • Series PSL2-U / PTL2-U

Metric Sizes: • Series MPSL2-U / MPTL2-U

Series PSL2-U / PTL2-U

Series PSL2-U / PTL2-U / American Standard Sizes
• Min. Sheet Thickness- 0.060" • Hole Size in Sheet- 0.328" • Min. Distance to Edge- 0.340" • Sheet Hardness- HRB 80 / HB 150 or Less • Plunger Material- Heat-Treated Carbon Steel • Retainer Material- Heat-Treated Carbon Steel • Plunger Finish- Bright nickel over copper flash per ASTM B689 • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Mil-Spec- N/A

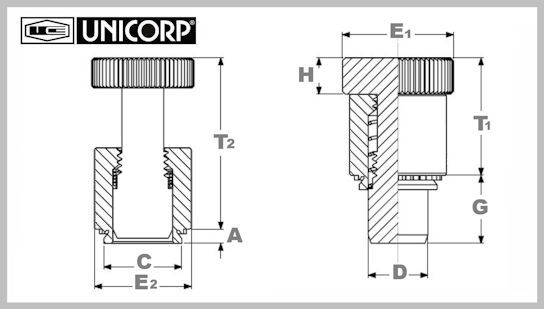

	Series PSL2-U / PTL2-U American Standard Sizes (SAE)

Part
Number

"A"
(Shank)
Max.

"C"
Max.

"D"

"E1"

"E2"

"G"

"H"

"T1"

"T2"
Nom.

PSL2-04-4-CN-U

0.058"

0.327"

0.250"

0.500"

0.406"

0.310"

0.170"

0.510"

0.780"

PTL2-04-4-CN-U

0.058"

0.327"

0.250"

0.500"

0.406"

0.310"

0.170"

0.595"

0.895"

Series MPSL2-U / MPTL2-U / Metric Sizes
• Min. Sheet Thickness- 1.53 mm • Hole Size in Sheet- 8.33 mm • Min. Distance to Edge- 8.64 mm • Sheet Hardness- HRB 80 / HB 150 or Less • Plunger Material- Heat-Treated Carbon Steel • Retainer Material- Heat-Treated Carbon Steel • Plunger Finish- Bright nickel over copper flash per ASTM B689 • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Mil-Spec- N/A
	Series MPSL2-U / MPTL2-U Metric Sizes

Part
Number

"C"
Max.

"D"

"E1"

"E2"

"G"

"H"

"T1"

"T2"
Nom.

"TR"

MPSL2-04-4-CN-U

8.31
mm

6.35
mm

12.70
mm

10.30
mm

7.87
mm

4.32
mm

12.95
mm

19.81
mm

8.89
mm

MPTL2-04-4-CN-U

8.31
mm

6.35
mm

12.70
mm

10.30
mm

7.87
mm

4.32
mm

15.11
mm

22.73
mm

10.92
mm
