Flush Mounted Screws PS10-U

Self Clinching Fasteners • Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Flush-Mounted Screws PS10

• Remain captive to panel and frame when unassembled • Flush

Series PS10-U

Series PS10-U / American Standard Sizes
• Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A

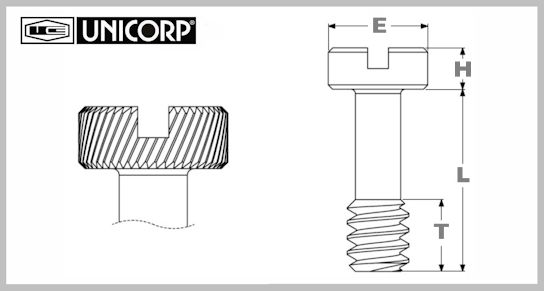

	Series PS10-U American Standard Sizes (SAE)

Part
Number

Thread

"E"
Nom.

"H"

"L"

"T"
Nom.

PS10-440-40-U

4-40

0.180"

0.075"

0.330"

0.130"

PS10-632-40-U

6-32

0.210"

0.075"

0.330"

0.130"

PS10-832-40-U

8-32

0.250"

0.075"

0.330"

0.130"

PS10-032-40-U

10-32

0.280"

0.075"

0.330"

0.130"

Series PS10-U / Metric Sizes
• Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A
	Series PS10-U Metric Sizes

Part
Number

Thread

"E"
Nom.

"H"

"L"

"T"
Nom.

PS10-M3-40-U

M3 x 0.5

4.70
mm

1.91
mm

8.38
mm

3.30
mm

PS10-M4-40-U

M4 x 0.7

6.30
mm

1.91
mm

8.38
mm

3.30
mm

PS10-M5-40-U

M5 x 0.8

7.10
mm

1.91
mm

8.38
mm

3.30
mm
