Flush Mounted Retainers PR10-U

Self Clinching Fasteners • Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes

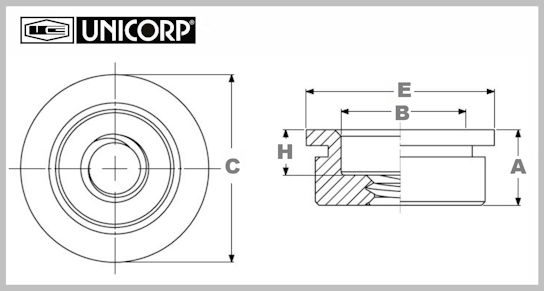

UNICORP Electronic Hardware Self-Clinching Fasteners - Flush Mounted Retainers PR10

• Remain captive to panel and frame when unassembled • Flush

Series PR10-U

Series PR10-U / American Standard Sizes
• "A" (Shank) Max.- 0.125" • Min. Sheet For Self-Clinching- 0.050" • Min. Sheet For Flush Installation- 0.125" • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A
	Series PR10-U American Standard Sizes (SAE)

Part
Number

Thread

"B"
Nom.

"C"
Max.

"E"
Nom.

"H"
Nom.

Hole Size
in Sheet

Min.
Distance
to Edge

PR10-440-U

4-40

0.195"

0.280"

0.310"

0.075"

0.281"

0.310"

PR10-832-U

8-32

0.255"

0.343"

0.370"

0.075"

0.344"

0.340"

PR10-032-U

10-32

0.290"

0.374"

0.410"

0.075"

0.375"

0.360"

Series PR10-U / Metric Sizes
• "A" (Shank) Max.- 3.18 mm • Min. Sheet For Self-Clinching- 1.27 mm • Min. Sheet For Flush Installation- 3.18 mm • Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A
	Series PR10-U Metric Sizes

Part
Number

Thread

"B"
Nom.

"C"
Max.

"E"
Nom.

"H"
Nom.

Hole Size
in Sheet

Min.
Distance
to Edge

PR10-M3-U

M3 x 0.5

4.75
mm

7.12
mm

7.87
mm

1.91
mm

7.14
mm

7.87
mm

PR10-M4-U

M4 x 0.7

6.48
mm

8.72
mm

9.53
mm

1.91
mm

8.74
mm

8.64
mm

PR10-M5-U

M5 x 0.8

7.37
mm

9.50
mm

10.41
mm

1.91
mm

9.53
mm

9.14
mm
