Spring-Loaded Low-Profile
Knob Anti-Cross Thread Panel Fasteners
PF52M-U, PF52MLS-U, PF52ML-U

Self Clinching Fasteners • Captive Panel Screws & Hardware
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Spring-Loaded Low-Profile Anti-Cross Thread Panel Fasteners PF52M, PF52MLS, PF52ML

• Self-clinching • Low-profile • Anti-Cross Thread • Positive stop • Phillips head or Torx® • Held captive to a panel
• Installed by tool or hand • Shouldered retainer • Installed quickly and easily

American Standard Sizes: • Series PF52M-U • Series PF52MLS-U • Series PF52ML-U

Metric Sizes: • Series PF52M-U • Series PF52MLS-U • Series PF52ML-U

Series PF52M-U

Series PF52M-U / American Standard Sizes

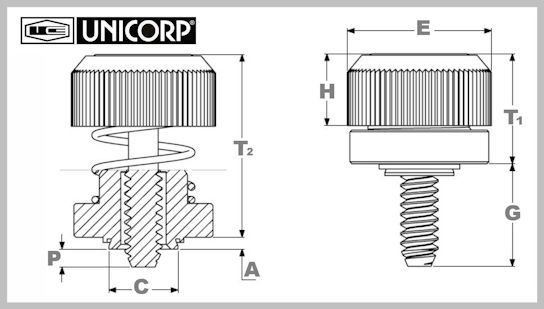

• Type- Knurled Cap • "A" (Shank) Max.- 0.058" • Min. Sheet Thickness- 0.060" • Sheet Hardness- HRB 60 / HB 107 or Less • Retainer Material- Carbon Steel • Screw Material- Heat-Treated Carbon Steel • Spring Material- 300 Series Stainless Steel • Mil-Spec- N/A STANDARD FINISH (Part Numbers with "BN") • Retainer Finish- Black Nitride • Screw Finish- Black Nitride OPTIONAL FINISH (Part Numbers with "CN") • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Screw Finish- Bright nickel over copper flash per ASTM B689
	Series PF52M-U American Standard Sizes (SAE)

Part
Number

Thread

"C"
Max.

"E"

"G"
Screw
Length

"H"

"P"

"T1"
Max.

"T2"
Nom.

Driver
Type

Hole
in Sheet

Min.
Distance
to Edge

PF52M-440-0-BN-U

4-40

0.202"

0.406"

0.230"

0.207"

0.000"

0.340"

0.520"

#1 Phillips

0.203"

0.260"

PF52M-440-1-BN-U

4-40

0.202"

0.406"

0.290"

0.207"

0.060"

0.340"

0.520"

#1 Phillips

0.203"

0.260"

PF52M-632-0-BN-U

6-32

0.218"

0.438"

0.230"

0.207"

0.000"

0.340"

0.520"

#2 Phillips

0.219"

0.280"

PF52M-632-1-BN-U

6-32

0.218"

0.438"

0.290"

0.207"

0.060"

0.340"

0.520"

#2 Phillips

0.219"

0.280"

PF52M-832-0-BN-U

8-32

0.249"

0.468"

0.230"

0.217"

0.000"

0.340"

0.520"

#2 Phillips

0.250"

0.290"

PF52M-832-1-BN-U

8-32

0.249"

0.468"

0.290"

0.217"

0.060"

0.340"

0.520"

#2 Phillips

0.250"

0.290"

PF52M-032-0-BN-U

10-32

0.311"

0.530"

0.230"

0.225"

0.000"

0.340"

0.530"

#2 Phillips

0.312"

0.330"

PF52M-032-1-BN-U

10-32

0.311"

0.530"

0.290"

0.225"

0.060"

0.340"

0.530"

#2 Phillips

0.312"

0.330"

PF52M-0420-0-BN-U

1/4-20

0.374"

0.625"

0.280"

0.246"

0.000"

0.395"

0.600"

#2 Phillips

0.375"

0.380"

PF52M-0420-1-BN-U

1/4-20

0.374"

0.625"

0.340"

0.246"

0.060"

0.395"

0.600"

#2 Phillips

0.375"

0.380"

PF52M-440-0-CN-U

4-40

0.202"

0.406"

0.230"

0.207"

0.000"

0.340"

0.520"

#1 Phillips

0.203"

0.260"

PF52M-440-1-CN-U

4-40

0.202"

0.406"

0.290"

0.207"

0.060"

0.340"

0.520"

#1 Phillips

0.203"

0.260"

PF52M-632-0-CN-U

6-32

0.218"

0.438"

0.230"

0.207"

0.000"

0.340"

0.520"

#2 Phillips

0.219"

0.280"

PF52M-632-1-CN-U

6-32

0.218"

0.438"

0.290"

0.207"

0.060"

0.340"

0.520"

#2 Phillips

0.219"

0.280"

PF52M-832-0-CN-U

8-32

0.249"

0.468"

0.230"

0.217"

0.000"

0.340"

0.520"

#2 Phillips

0.250"

0.290"

PF52M-832-1-CN-U

8-32

0.249"

0.468"

0.290"

0.217"

0.060"

0.340"

0.520"

#2 Phillips

0.250"

0.290"

PF52M-032-0-CN-U

10-32

0.311"

0.530"

0.230"

0.225"

0.000"

0.340"

0.530"

#2 Phillips

0.312"

0.330"

PF52M-032-1-CN-U

10-32

0.311"

0.530"

0.290"

0.225"

0.060"

0.340"

0.530"

#2 Phillips

0.312"

0.330"

PF52M-0420-0-CN-U

1/4-20

0.374"

0.625"

0.280"

0.246"

0.000"

0.395"

0.600"

#2 Phillips

0.375"

0.380"

PF52M-0420-1-CN-U

1/4-20

0.374"

0.625"

0.340"

0.246"

0.060"

0.395"

0.600"

#2 Phillips

0.375"

0.380"

Series PF52M-U / Metric Sizes
• Type- Knurled Cap • "A" (Shank) Max.- 1.48 mm • Min. Sheet Thickness- 1.50 mm • Sheet Hardness- HRB 60 / HB 107 or Less • Retainer Material- Carbon Steel • Screw Material- Heat-Treated Carbon Steel • Spring Material- 300 Series Stainless Steel • Mil-Spec- N/A STANDARD FINISH (Part Numbers with "BN") • Retainer Finish- Black Nitride • Screw Finish- Black Nitride OPTIONAL FINISH (Part Numbers with "CN") • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Screw Finish- Bright nickel over copper flash per ASTM B689
	Series PF52M-U Metric Sizes

Part
Number

Thread

"C"
Max.

"E"

"G"
Screw
Length

"H"

"P"

"T1"
Max.

"T2"
Nom.

Driver
Type

Hole
in Sheet

Min.
Distance
to Edge

PF52M-M3-0-BN-U

M3 x 0.5

5.48
mm

10.30
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

#1 Phillips

5.50
mm

6.60
mm

PF52M-M3-1-BN-U

M3 x 0.5

5.48
mm

10.30
mm

7.37
mm

5.26
mm

0.81
mm

8.64
mm

13.21
mm

#1 Phillips

5.50
mm

6.60
mm

PF52M-M3.5-0-BN-U

M3.5 x 0.6

5.54
mm

11.10
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

#2 Phillips

5.56
mm

7.10
mm

PF52M-M3.5-1-BN-U

M3.5 x 0.6

5.54
mm

11.10
mm

7.37
mm

5.26
mm

0.81
mm

8.64
mm

13.21
mm

#2 Phillips

5.56
mm

7.10
mm

PF52M-M4-0-BN-U

M4 x 0.7

6.38
mm

11.90
mm

5.84
mm

5.51
mm

0.00
mm

8.64
mm

13.46
mm

#2 Phillips

6.40
mm

7.40
mm

PF52M-M4-1-BN-U

M4 x 0.7

6.38
mm

11.90
mm

7.37
mm

5.51
mm

0.81
mm

8.64
mm

13.46
mm

#2 Phillips

6.40
mm

7.40
mm

PF52M-M5-0-BN-U

M5 x 0.8

7.98
mm

13.50
mm

5.84
mm

5.72
mm

0.00
mm

8.64
mm

13.46
mm

#2 Phillips

8.00
mm

8.40
mm

PF52M-M5-1-BN-U

M5 x 0.8

7.98
mm

13.50
mm

7.37
mm

5.72
mm

0.81
mm

8.64
mm

13.46
mm

#2 Phillips

8.00
mm

8.40
mm

PF52M-M6-0-BN-U

M6 x 1.0

9.48
mm

15.90
mm

7.11
mm

6.25
mm

0.00
mm

10.04
mm

15.24
mm

#2 Phillips

9.50
mm

9.70
mm

PF52M-M6-1-BN-U

M6 x 1.0

9.48
mm

15.90
mm

8.64
mm

6.25
mm

1.52
mm

10.04
mm

15.24
mm

#2 Phillips

9.50
mm

9.70
mm

PF52M-M3-0-CN-U

M3 x 0.5

5.48
mm

10.30
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

#1 Phillips

5.50
mm

6.60
mm

PF52M-M3-1-CN-U

M3 x 0.5

5.48
mm

10.30
mm

7.37
mm

5.26
mm

0.81
mm

8.64
mm

13.21
mm

#1 Phillips

5.50
mm

6.60
mm

PF52M-M3.5-0-CN-U

M3.5 x 0.6

5.54
mm

11.10
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

#2 Phillips

5.56
mm

7.10
mm

PF52M-M3.5-1-CN-U

M3.5 x 0.6

5.54
mm

11.10
mm

7.37
mm

5.26
mm

0.81
mm

8.64
mm

13.21
mm

#2 Phillips

5.56
mm

7.10
mm

PF52M-M4-0-CN-U

M4 x 0.7

6.38
mm

11.90
mm

5.84
mm

5.51
mm

0.00
mm

8.64
mm

13.46
mm

#2 Phillips

6.40
mm

7.40
mm

PF52M-M4-1-CN-U

M4 x 0.7

6.38
mm

11.90
mm

7.37
mm

5.51
mm

0.81
mm

8.64
mm

13.46
mm

#2 Phillips

6.40
mm

7.40
mm

PF52M-M5-0-CN-U

M5 x 0.8

7.98
mm

13.50
mm

5.84
mm

5.72
mm

0.00
mm

8.64
mm

13.46
mm

#2 Phillips

8.00
mm

8.40
mm

PF52M-M5-1-CN-U

M5 x 0.8

7.98
mm

13.50
mm

7.37
mm

5.72
mm

0.81
mm

8.64
mm

13.46
mm

#2 Phillips

8.00
mm

8.40
mm

PF52M-M6-0-CN-U

M6 x 1.0

9.48
mm

15.90
mm

7.11
mm

6.25
mm

0.00
mm

10.04
mm

15.24
mm

#2 Phillips

9.50
mm

9.70
mm

PF52M-M6-1-CN-U

M6 x 1.0

9.48
mm

15.90
mm

8.64
mm

6.25
mm

1.52
mm

10.04
mm

15.24
mm

#2 Phillips

9.50
mm

9.70
mm

Series PF52MLS-U

Series PF52MLS-U / American Standard Sizes
• Type- Knurled Cap • "A" (Shank) Max.- 0.058" • Min. Sheet Thickness- 0.060" • Sheet Hardness- HRB 60 / HB 107 or Less • Retainer Material- Carbon Steel • Screw Material- Heat-Treated Carbon Steel • Spring Material- 300 Series Stainless Steel • Mil-Spec- N/A STANDARD FINISH (Part Numbers with "BN") • Retainer Finish- Black Nitride • Screw Finish- Black Nitride OPTIONAL FINISH (Part Numbers with "CN") • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Screw Finish- Bright nickel over copper flash per ASTM B689
	Series PF52MLS-U American Standard Sizes (SAE)

Part
Number

Thread

"C"
Max.

"E"

"G"
Screw
Length

"H"

"P"

"T1"
Max.

"T2"
Nom.

Driver
Type

Hole
in Sheet

Min.
Distance
to Edge

PF52MLS-440-0-BN-U

4-40

0.202"

0.406"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/Slot Combination

0.203"

0.260"

PF52MLS-440-1-BN-U

4-40

0.202"

0.406"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/Slot Combination

0.203"

0.260"

PF52MLS-632-0-BN-U

6-32

0.218"

0.438"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/Slot Combination

0.219"

0.280"

PF52MLS-632-1-BN-U

6-32

0.218"

0.438"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/Slot Combination

0.219"

0.280"

PF52MLS-832-0-BN-U

8-32

0.249"

0.468"

0.230"

0.217"

0.000"

0.340"

0.520"

Torx®/Slot Combination

0.250"

0.290"

PF52MLS-832-1-BN-U

8-32

0.249"

0.468"

0.290"

0.217"

0.060"

0.340"

0.520"

Torx®/Slot Combination

0.250"

0.290"

PF52MLS-032-0-BN-U

10-32

0.311"

0.530"

0.230"

0.225"

0.000"

0.340"

0.530"

Torx®/Slot Combination

0.312"

0.330"

PF52MLS-032-1-BN-U

10-32

0.311"

0.530"

0.290"

0.225"

0.060"

0.340"

0.530"

Torx®/Slot Combination

0.312"

0.330"

PF52MLS-0420-0-BN-U

1/4-20

0.374"

0.625"

0.280"

0.246"

0.000"

0.395"

0.600"

Torx®/Slot Combination

0.375"

0.380"

PF52MLS-0420-1-BN-U

1/4-20

0.374"

0.625"

0.340"

0.246"

0.060"

0.395"

0.600"

Torx®/Slot Combination

0.375"

0.380"

PF52MLS-440-0-CN-U

4-40

0.202"

0.406"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/Slot Combination

0.203"

0.260"

PF52MLS-440-1-CN-U

4-40

0.202"

0.406"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/Slot Combination

0.203"

0.260"

PF52MLS-632-0-CN-U

6-32

0.218"

0.438"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/Slot Combination

0.219"

0.280"

PF52MLS-632-1-CN-U

6-32

0.218"

0.438"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/Slot Combination

0.219"

0.280"

PF52MLS-832-0-CN-U

8-32

0.249"

0.468"

0.230"

0.217"

0.000"

0.340"

0.520"

Torx®/Slot Combination

0.250"

0.290"

PF52MLS-832-1-CN-U

8-32

0.249"

0.468"

0.290"

0.217"

0.060"

0.340"

0.520"

Torx®/Slot Combination

0.250"

0.290"

PF52MLS-032-0-CN-U

10-32

0.311"

0.530"

0.230"

0.225"

0.000"

0.340"

0.530"

Torx®/Slot Combination

0.312"

0.330"

PF52MLS-032-1-CN-U

10-32

0.311"

0.530"

0.290"

0.225"

0.060"

0.340"

0.530"

Torx®/Slot Combination

0.312"

0.330"

PF52MLS-0420-0-CN-U

1/4-20

0.374"

0.625"

0.280"

0.246"

0.000"

0.395"

0.600"

Torx®/Slot Combination

0.375"

0.380"

PF52MLS-0420-1-CN-U

1/4-20

0.374"

0.625"

0.340"

0.246"

0.060"

0.395"

0.600"

Torx®/Slot Combination

0.375"

0.380"

Series PF52MLS-U / Metric Sizes
• Type- Knurled Cap • "A" (Shank) Max.- 1.48 mm • Min. Sheet Thickness- 1.50 mm • Sheet Hardness- HRB 60 / HB 107 or Less • Retainer Material- Carbon Steel • Screw Material- Heat-Treated Carbon Steel • Spring Material- 300 Series Stainless Steel • Mil-Spec- N/A STANDARD FINISH (Part Numbers with "BN") • Retainer Finish- Black Nitride • Screw Finish- Black Nitride OPTIONAL FINISH (Part Numbers with "CN") • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Screw Finish- Bright nickel over copper flash per ASTM B689
	Series PF52MLS-U Metric Sizes

Part
Number

Thread

"C"
Max.

"E"

"G"
Screw
Length

"H"

"P"

"T1"
Max.

"T2"
Nom.

Driver
Type

Hole
in Sheet

Min.
Distance
to Edge

PF52MLS-M3-0-BN-U

M3 x 0.5

5.48
mm

10.30
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.50
mm

6.60
mm

PF52MLS-M3-1-BN-U

M3 x 0.5

5.48
mm

10.30
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.50
mm

6.60
mm

PF52MLS-M3.5-0-BN-U

M3.5 x 0.6

5.54
mm

11.10
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.56
mm

7.10
mm

PF52MLS-M3.5-1-BN-U

M3.5 x 0.6

5.54
mm

11.10
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.56
mm

7.10
mm

PF52MLS-M4-0-BN-U

M4 x 0.7

6.38
mm

11.90
mm

5.84
mm

5.51
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

6.40
mm

7.40
mm

PF52MLS-M4-1-BN-U

M4 x 0.7

6.38
mm

11.90
mm

7.37
mm

5.51
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

6.40
mm

7.40
mm

PF52MLS-M5-0-BN-U

M5 x 0.8

7.98
mm

13.50
mm

5.84
mm

5.72
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

8.00
mm

8.40
mm

PF52MLS-M5-1-BN-U

M5 x 0.8

7.98
mm

13.50
mm

7.37
mm

5.72
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

8.00
mm

8.40
mm

PF52MLS-M6-0-BN-U

M6 x 1.0

9.48
mm

15.90
mm

7.11
mm

6.25
mm

0.00
mm

10.04
mm

15.24
mm

Torx®/Slot Combination

9.50
mm

9.70
mm

PF52MLS-M6-1-BN-U

M6 x 1.0

9.48
mm

15.90
mm

8.64
mm

6.25
mm

1.52
mm

10.04
mm

15.24
mm

Torx®/Slot Combination

9.50
mm

9.70
mm

PF52MLS-M3-0-CN-U

M3 x 0.5

5.48
mm

10.30
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.50
mm

6.60
mm

PF52MLS-M3-1-CN-U

M3 x 0.5

5.48
mm

10.30
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.50
mm

6.60
mm

PF52MLS-M3.5-0-CN-U

M3.5 x 0.6

5.54
mm

11.10
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.56
mm

7.10
mm

PF52MLS-M3.5-1-CN-U

M3.5 x 0.6

5.54
mm

11.10
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/Slot Combination

5.56
mm

7.10
mm

PF52MLS-M4-0-CN-U

M4 x 0.7

6.38
mm

11.90
mm

5.84
mm

5.51
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

6.40
mm

7.40
mm

PF52MLS-M4-1-CN-U

M4 x 0.7

6.38
mm

11.90
mm

7.37
mm

5.51
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

6.40
mm

7.40
mm

PF52MLS-M5-0-CN-U

M5 x 0.8

7.98
mm

13.50
mm

5.84
mm

5.72
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

8.00
mm

8.40
mm

PF52MLS-M5-1-CN-U

M5 x 0.8

7.98
mm

13.50
mm

7.37
mm

5.72
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/Slot Combination

8.00
mm

8.40
mm

PF52MLS-M6-0-CN-U

M6 x 1.0

9.48
mm

15.90
mm

7.11
mm

6.25
mm

0.00
mm

10.04
mm

15.24
mm

Torx®/Slot Combination

9.50
mm

9.70
mm

PF52MLS-M6-1-CN-U

M6 x 1.0

9.48
mm

15.90
mm

8.64
mm

6.25
mm

1.52
mm

10.04
mm

15.24
mm

Torx®/Slot Combination

9.50
mm

9.70
mm

Series PF52ML-U

Series PF52ML-U / American Standard Sizes
• Type- Knurled Cap • "A" (Shank) Max.- 0.058" • Min. Sheet Thickness- 0.060" • Sheet Hardness- HRB 60 / HB 107 or Less • Retainer Material- Carbon Steel • Screw Material- Heat-Treated Carbon Steel • Spring Material- 300 Series Stainless Steel • Mil-Spec- N/A STANDARD FINISH (Part Numbers with "BN") • Retainer Finish- Black Nitride • Screw Finish- Black Nitride OPTIONAL FINISH (Part Numbers with "CN") • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Screw Finish- Bright nickel over copper flash per ASTM B689
	Series PF52ML-U American Standard Sizes (SAE)

Part
Number

Thread

"C"
Max.

"E"

"G"
Screw
Length

"H"

"P"

"T1"
Max.

"T2"
Nom.

Driver
Type

Hole
in Sheet

Min.
Distance
to Edge

PF52ML-440-0-BN-U

4-40

0.202"

0.406"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/
Torx Plus®

0.203"

0.260"

PF52ML-440-1-BN-U

4-40

0.202"

0.406"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/
Torx Plus®

0.203"

0.260"

PF52ML-632-0-BN-U

6-32

0.218"

0.438"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/
Torx Plus®

0.219"

0.280"

PF52ML-632-1-BN-U

6-32

0.218"

0.438"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/
Torx Plus®

0.219"

0.280"

PF52ML-832-0-BN-U

8-32

0.249"

0.468"

0.230"

0.217"

0.000"

0.340"

0.520"

Torx®/
Torx Plus®

0.250"

0.290"

PF52ML-832-1-BN-U

8-32

0.249"

0.468"

0.290"

0.217"

0.060"

0.340"

0.520"

Torx®/
Torx Plus®

0.250"

0.290"

PF52ML-032-0-BN-U

10-32

0.311"

0.530"

0.230"

0.225"

0.000"

0.340"

0.530"

Torx®/
Torx Plus®

0.312"

0.330"

PF52ML-032-1-BN-U

10-32

0.311"

0.530"

0.290"

0.225"

0.060"

0.340"

0.530"

Torx®/
Torx Plus®

0.312"

0.330"

PF52ML-0420-0-BN-U

1/4-20

0.374"

0.625"

0.280"

0.246"

0.000"

0.395"

0.600"

Torx®/
Torx Plus®

0.375"

0.380"

PF52ML-0420-1-BN-U

1/4-20

0.374"

0.625"

0.340"

0.246"

0.060"

0.395"

0.600"

Torx®/
Torx Plus®

0.375"

0.380"

PF52ML-440-0-CN-U

4-40

0.202"

0.406"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/
Torx Plus®

0.203"

0.260"

PF52ML-440-1-CN-U

4-40

0.202"

0.406"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/
Torx Plus®

0.203"

0.260"

PF52ML-632-0-CN-U

6-32

0.218"

0.438"

0.230"

0.207"

0.000"

0.340"

0.520"

Torx®/
Torx Plus®

0.219"

0.280"

PF52ML-632-1-CN-U

6-32

0.218"

0.438"

0.290"

0.207"

0.060"

0.340"

0.520"

Torx®/
Torx Plus®

0.219"

0.280"

PF52ML-832-0-CN-U

8-32

0.249"

0.468"

0.230"

0.217"

0.000"

0.340"

0.520"

Torx®/
Torx Plus®

0.250"

0.290"

PF52ML-832-1-CN-U

8-32

0.249"

0.468"

0.290"

0.217"

0.060"

0.340"

0.520"

Torx®/
Torx Plus®

0.250"

0.290"

PF52ML-032-0-CN-U

10-32

0.311"

0.530"

0.230"

0.225"

0.000"

0.340"

0.530"

Torx®/
Torx Plus®

0.312"

0.330"

PF52ML-032-1-CN-U

10-32

0.311"

0.530"

0.340"

0.225"

0.060"

0.340"

0.530"

Torx®/
Torx Plus®

0.312"

0.330"

PF52ML-0420-0-CN-U

1/4-20

0.374"

0.625"

0.280"

0.246"

0.000"

0.395"

0.600"

Torx®/
Torx Plus®

0.375"

0.380"

PF52ML-0420-1-CN-U

1/4-20

0.374"

0.625"

0.340"

0.246"

0.060"

0.395"

0.600"

Torx®/
Torx Plus®

0.375"

0.380"

Series PF52ML-U / Metric Sizes
• Type- Knurled Cap • "A" (Shank) Max.- 1.48 mm • Min. Sheet Thickness- 1.50 mm • Sheet Hardness- HRB 60 / HB 107 or Less • Retainer Material- Carbon Steel • Screw Material- Heat-Treated Carbon Steel • Spring Material- 300 Series Stainless Steel • Mil-Spec- N/A STANDARD FINISH (Part Numbers with "BN") • Retainer Finish- Black Nitride • Screw Finish- Black Nitride OPTIONAL FINISH (Part Numbers with "CN") • Retainer Finish- Bright nickel over copper flash per ASTM B689 • Screw Finish- Bright nickel over copper flash per ASTM B689
	Series PF52ML-U Metric Sizes

Part
Number

Thread

"C"
Max.

"E"

"G"
Screw
Length

"H"

"P"

"T1"
Max.

"T2"
Nom.

Driver
Type

Hole
in Sheet

Min.
Distance
to Edge

PF52ML-M3-0-BN-U

M3 x 0.5

5.48
mm

10.30
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.50
mm

6.60
mm

PF52ML-M3-1-BN-U

M3 x 0.5

5.48
mm

10.30
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.50
mm

6.60
mm

PF52ML-M3.5-0-BN-U

M3.5 x 0.6

5.54
mm

11.10
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.56
mm

7.10
mm

PF52ML-M3.5-1-BN-U

M3.5 x 0.6

5.54
mm

11.10
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.56
mm

7.10
mm

PF52ML-M4-0-BN-U

M4 x 0.7

6.38
mm

11.90
mm

5.84
mm

5.51
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

6.40
mm

7.40
mm

PF52ML-M4-1-BN-U

M4 x 0.7

6.38
mm

11.90
mm

7.37
mm

5.51
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

6.40
mm

7.40
mm

PF52ML-M5-0-BN-U

M5 x 0.8

7.98
mm

13.50
mm

5.84
mm

5.72
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

8.00
mm

8.40
mm

PF52ML-M5-1-BN-U

M5 x 0.8

7.98
mm

13.50
mm

7.37
mm

5.72
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

8.00
mm

8.40
mm

PF52ML-M6-0-BN-U

M6 x 1.0

9.48
mm

15.90
mm

7.11
mm

6.25
mm

0.00
mm

10.04
mm

15.24
mm

Torx®/
Torx Plus®

9.50
mm

9.70
mm

PF52ML-M6-1-BN-U

M6 x 1.0

9.48
mm

15.90
mm

8.64
mm

6.25
mm

1.52
mm

10.04
mm

15.24
mm

Torx®/
Torx Plus®

9.50
mm

9.70
mm

PF52ML-M3-0-CN-U

M3 x 0.5

5.48
mm

10.30
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.50
mm

6.60
mm

PF52ML-M3-1-CN-U

M3 x 0.5

5.48
mm

10.30
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.50
mm

6.60
mm

PF52ML-M3.5-0-CN-U

M3.5 x 0.6

5.54
mm

11.10
mm

5.84
mm

5.26
mm

0.00
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.56
mm

7.10
mm

PF52ML-M3.5-1-CN-U

M3.5 x 0.6

5.54
mm

11.10
mm

7.37
mm

5.26
mm

1.52
mm

8.64
mm

13.21
mm

Torx®/
Torx Plus®

5.56
mm

7.10
mm

PF52ML-M4-0-CN-U

M4 x 0.7

6.38
mm

11.90
mm

5.84
mm

5.51
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

6.40
mm

7.40
mm

PF52ML-M4-1-CN-U

M4 x 0.7

6.38
mm

11.90
mm

7.37
mm

5.51
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

6.40
mm

7.40
mm

PF52ML-M5-0-CN-U

M5 x 0.8

7.98
mm

13.50
mm

5.84
mm

5.72
mm

0.00
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

8.00
mm

8.40
mm

PF52ML-M5-1-CN-U

M5 x 0.8

7.98
mm

13.50
mm

7.37
mm

5.72
mm

1.52
mm

8.64
mm

13.46
mm

Torx®/
Torx Plus®

8.00
mm

8.40
mm

PF52ML-M6-0-CN-U

M6 x 1.0

9.48
mm

15.90
mm

7.11
mm

6.25
mm

0.00
mm

10.04
mm

15.24
mm

Torx®/
Torx Plus®

9.50
mm

9.70
mm

PF52ML-M6-1-CN-U

M6 x 1.0

9.48
mm

15.90
mm

8.64
mm

6.25
mm

1.52
mm

10.04
mm

15.24
mm

Torx®/
Torx Plus®

9.50
mm

9.70
mm

More Selections Spring Loaded Low-Profile Knob Anti-Cross Thread Panel Fasteners
American Standard:		Metric:	American Standard:		Metric:
	•Series PF50M-U •Series PF50MLS-U •Series PF50ML-U	•Series PF50M-U •Series PF50MLS-U •Series PF50ML-U		•Series PF60M-U •Series PF60MLS-U •Series PF60ML-U	•Series PF60M-U •Series PF60MLS-U •Series PF60ML-U

	•Series PF51M-U •Series PF51MLS-U •Series PF51ML-U	•Series PF51M-U •Series PF51MLS-U •Series PF51ML-U		•Series PF61M-U •Series PF61MLS-U •Series PF61ML-U	•Series PF61M-U •Series PF61MLS-U •Series PF61ML-U

				•Series PF62M-U •Series PF62MLS-U •Series PF62ML-U	•Series PF62M-U •Series PF62MLS-U •Series PF62ML-U

Phone: 973-674-1700 Toll Free: 1-800-526-1389 Fax: 973-674-3803

UNICORP is a leader in manufacturing stock and custom
electronic hardware, handles and precision fasteners used by leading companies
in nearly every industry since 1971.

291 Cleveland St, Orange, New Jersey 07050  USA
Mailing Address:  P.O. Box 280, Orange, New Jersey 07051-0280  USA

Feedback I Legal Notice I Copyright  I Services I Jobs I Contact Us I Email Us I Privacy Statement
Copyright©2020, Unicorp Inc., unicorpinc.com or its affiliates
