Male Standoffs MS-U, MSS-U

Self Clinching Fasteners • Standoffs For Sheet Metal
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Male Standoffs MS, MSS

• Self-clinching • Used to mount PC boards into electronic displays • Reusable threaded post
• Minimum sheet thickness of 0.050" /1.27 mm

American Standard Sizes: • Series MS-U • Series MSS-U

Metric Sizes: • Series MS-U • Series MSS-U

Series MS-U

Series MS-U / American Standard Sizes

• Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633
	Series MS-U American Standard Sizes (SAE)

Part
Number

Thread

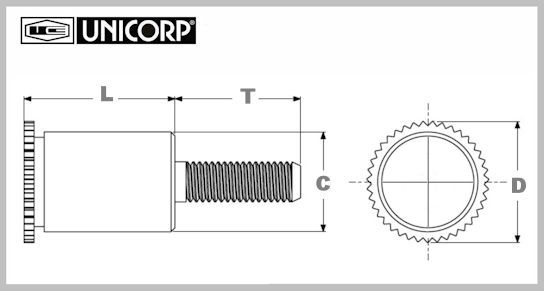

"D"

Head
Shape

"L"
Length

"T" Full
Thread
Min. Depth

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

Mil-Spec

MS-632-6-U

6-32

0.303"

Round

0.375"

0.312"

0.050"

0.250"

0.249"

N/A

MS-632-7-U

6-32

0.303"

Round

0.437"

0.312"

0.050"

0.250"

0.249"

N/A

MS-632-8-U

6-32

0.303"

Round

0.500"

0.312"

0.050"

0.250"

0.249"

N/A

MS-8632-6-U

6-32

0.334"

Round

0.375"

0.050"

0.281"

0.280"

N/A

MS-8632-7-U

6-32

0.334"

Round

0.437"

0.375"

0.050"

0.281"

0.280"

N/A

MS-8632-8-U

6-32

0.334"

Round

0.500"

0.375"

0.050"

0.281"

0.280"

N/A

Series MS-U / Metric Sizes

• Sheet Hardness- HRB 80 / HB 150 or Less • Material- Heat Treated Carbon Steel • Finish- Zinc Clear Plated per ASTM B633
	Series MS-U Metric Sizes

Part
Number

Thread

"D"

Head
Shape

"L"
Length

"T" Full
Thread
Min. Depth

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

Mil-Spec

MS-M3.5-8-U

M3.5 x 0.6

7.70
mm

Round

8.00
mm

7.92
mm

1.27
mm

6.35
mm

6.32
mm

N/A

MS-M3.5-10-U

M3.5 x 0.6

7.70
mm

Round

10.00
mm

7.92
mm

1.27
mm

6.35
mm

6.32
mm

N/A

MS-M3.5-12-U

M3.5 x 0.6

7.70
mm

Round

12.00
mm

7.92
mm

1.27
mm

6.35
mm

6.32
mm

N/A

MS-M4-3.5-8-U

M3.5 x 0.6

8.49
mm

Round

8.00
mm

9.52
mm

1.27
mm

7.14
mm

7.12
mm

N/A

MS-M4-3.5-10-U

M3.5 x 0.6

8.49
mm

Round

10.00
mm

9.52
mm

1.27
mm

7.14
mm

7.12
mm

N/A

MS-M4-3.5-12-U

M3.5 x 0.6

8.49
mm

Round

12.00
mm

9.52
mm

1.27
mm

7.14
mm

7.12
mm

N/A

Series MSS-U

Series MSS-U / American Standard Sizes

• Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series MSS-U American Standard Sizes (SAE)

Part
Number

Thread

"D"

Head
Shape

"L"
Length

"T" Full
Thread
Min. Depth

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

Mil-Spec

MSS-632-6-U

6-32

0.303"

Round

0.375"

0.312"

0.050"

0.250"

0.249"

N/A

MSS-632-7-U

6-32

0.303"

Round

0.437"

0.312"

0.050"

0.250"

0.249"

N/A

MSS-632-8-U

6-32

0.303"

Round

0.500"

0.312"

0.050"

0.250"

0.249"

N/A

MSS-8632-6-U

6-32

0.334"

Round

0.375"

0.050"

0.281"

0.280"

N/A

MSS-8632-7-U

6-32

0.334"

Round

0.437"

0.375"

0.050"

0.281"

0.280"

N/A

MSS-8632-8-U

6-32

0.334"

Round

0.500"

0.375"

0.050"

0.281"

0.280"

N/A

Series MSS-U / Metric Sizes

• Sheet Hardness- HRB 70 / HB 125 or Less • Material- 300 Series Stainless Steel • Finish- Passivated per ASTM A380
	Series MSS-U Metric Sizes

Part
Number

Thread

"D"

Head
Shape

"L"
Length

"T" Full
Thread
Min. Depth

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Max.

Mil-Spec

MSS-M3.5-8-U

M3.5 x 0.6

7.70
mm

Round

8.00
mm

7.92
mm

1.27
mm

6.35
mm

6.32
mm

N/A

MSS-M3.5-10-U

M3.5 x 0.6

7.70
mm

Round

10.00
mm

7.92
mm

1.27
mm

6.35
mm

6.32
mm

N/A

MSS-M3.5-12-U

M3.5 x 0.6

7.70
mm

Round

12.00
mm

7.92
mm

1.27
mm

6.35
mm

6.32
mm

N/A

MSS-M4-3.5-8-U

M3.5 x 0.6

8.49
mm

Round

8.00
mm

9.52
mm

1.27
mm

7.14
mm

7.12
mm

N/A

MSS-M4-3.5-10-U

M3.5 x 0.6

8.49
mm

Round

10.00
mm

9.52
mm

1.27
mm

7.14
mm

7.12
mm

N/A

MSS-M4-3.5-12-U

M3.5 x 0.6

8.49
mm

Round

12.00
mm

9.52
mm

1.27
mm

7.14
mm

7.12
mm

N/A
