Miniature Standoffs MSO4-U

Self Clinching Fasteners • Miniature Series
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Miniature Standoffs MSO4

• Self-clinching • Installed quickly and easily • Used as spacers for components
• Load-bearing threads • Minimum sheet thickness of 0.012" /0.3 mm

American Standard Sizes: • Series MSO4-U

Metric Sizes: • Series MSO4-U

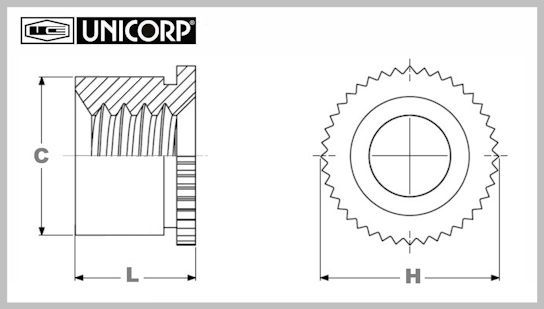

Series MSO4-U

Series MSO4-U / American Standard Sizes
• Sheet Hardness- HRB 88 / HB 176 or Less • Head Shape- Round • Material- 400 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A
	Series MSO4-U American Standard Sizes (SAE)

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Anvil
Chamfer
Diameter A

Anvil
Length

Min.
Distance
to Edge

MS04-080-3-U

0-80

0.125"

0.094"

0.012"

0.095"

0.094"

0.112" - 0.114"

0.219"

0.090"

MS04-080-4-U

0-80

0.125"

0.012"

0.095"

0.094"

0.112" - 0.114"

0.250"

0.090"

MS04-256-3-U

2-56

0.156"

0.094"

0.012"

0.125"

0.124"

0.142" - 0.144"

0.219"

0.120"

MS04-256-4-U

2-56

0.156"

0.125"

0.012"

0.125"

0.124"

0.142" - 0.144"

0.250"

0.120"

Series MSO4-U / Metric Sizes
• Sheet Hardness- HRB 88 / HB 176 or Less • Head Shape- Round • Material- 400 Series Stainless Steel • Finish- Passivated per ASTM A380 • Mil-Spec- N/A
	Series MSO4-U Metric Sizes

Part
Number

Thread

"H"
Nom.

"L"
Body
Length

Min.
Sheet
Thickness

Hole
Size in
Sheet

"C"
Barrel
O.D.

Anvil
Chamfer
Diameter A

Anvil
Length

Min.
Distance
to Edge

MS04-M1-2-U

M1.00 x 0.25

3.16
mm

2.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

5.18
mm

2.30
mm

MS04-M1-3-U

M1.00 x 0.25

3.16
mm

3.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

6.18
mm

2.30
mm

MS04-M1.2-2-U

M1.20 x 0.25

3.16
mm

2.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

5.18
mm

2.30
mm

MS04-M1.2-3-U

M1.20 x 0.25

3.16
mm

3.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

6.18
mm

2.30
mm

MS04-M1.4-2-U

M1.40 x 0.30

3.16
mm

2.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

5.18
mm

2.30
mm

MS04-M1.4-3-U

M1.40 x 0.30

3.16
mm

3.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

6.18
mm

2.30
mm

MS04-M1.6-2-U

M1.60 x 0.35

3.16
mm

2.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

5.18
mm

2.30
mm

MS04-M1.6-3-U

M1.60 x 0.35

3.16
mm

3.00
mm

0.30
mm

2.41
mm

2.38
mm

2.84 - 2.89
mm

6.18
mm

2.30
mm

MS04-M2-2-U

M2.00 x 0.40

3.16
mm

2.00
mm

0.30
mm

3.18
mm

3.15
mm

3.60 - 3.65
mm

5.18
mm

3.00
mm

MS04-M2-3-U

M2.00 x 0.40

3.16
mm

3.00
mm

0.30
mm

3.18
mm

3.15
mm

3.60 - 3.65
mm

6.18
mm

3.00
mm
