Miniature Inserts For Plastics  MSI-U

Self Clinching Fasteners  •  Miniature Series
Metric Sizes
• Self-clinching    • Thru-threaded    • Used in straight or tapered holes
• Installed with ultrasonic insertion equipment by pressing into mounting hole
• Permanently locked into placed and easily installed    • Minimum wall thickness of 0.70 mm
Series  MSI-U
Series  MSI-U  /  Metric Sizes
      • Material-  Free- Machining, Leaded Brass
      • Finish-  Plain
      • Mil-Spec-  N/A

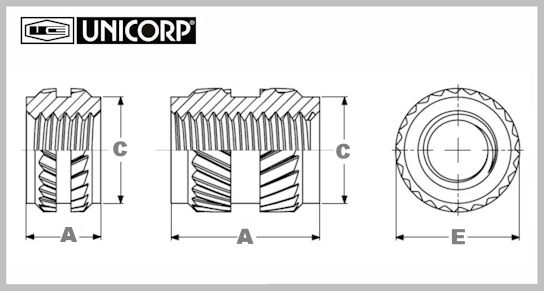

Series MSI-U
Metric Sizes
Part
Number		 Thread
Size		 "A"
Length		 "E" "C"
Max.		 Min.
Wall
Thickness		 Min.
Mounting
Hole Depth		 Mounting
Hole
Diameter		 Style
  MSI-M1-100-U M1 x 0.25 1.00
mm		 2.10
mm		 N/A 0.70
mm		 1.77
mm		 1.75
mm		 #1
  MSI-M1-250-U M1 x 0.25 2.50
mm		 2.10
mm		 1.75
mm		 0.70
mm		 3.27
mm		 1.75
mm		 #2

  MSI-M1.2-100-U M1.2 x 0.25 1.00
mm		 2.10
mm		 N/A 0.70
mm		 1.77
mm		 1.75
mm		 #1
  MSI-M1.2-250-U M1.2 x 0.25 2.50
mm		 2.10
mm		 1.75
mm		 0.70
mm		 3.27
mm		 1.75
mm		 #2

  MSI-M1.4-150-U M1.4 x 0.3 1.50
mm		 2.50
mm		 2.15
mm		 0.80
mm		 2.27
mm		 2.15
mm		 #2
  MSI-M1.4-300-U M1.4 x 0.3 3.00
mm		 2.50
mm		 2.15
mm		 0.80
mm		 3.77
mm		 2.15
mm		 #2

  MSI-M1.6-150-U M1.6 x 0.35 1.50
mm		 2.50
mm		 2.15
mm		 0.80
mm		 2.27
mm		 2.15
mm		 #2
  MSI-M1.6-300-U M1.6 x 0.35 3.00
mm		 2.50
mm		 2.15
mm		 0.80
mm		 3.77
mm		 2.15
mm		 #2
