Spring Top Standoffs for PC Boards KSSB-U

Self Clinching Fasteners • Fasteners for PC Boards
American Standard (Inches) & Metric Sizes: Series

UNICORP Electronic Hardware Self-Clinching Fasteners - Spring-Top Standoffs For P.C. Boards KSSB

• Self-clinching • Spring action • Permanently installed on P.C. Board by pressing into hole
• P.C. Board removed and installed quickly

American Standard Sizes: • Series KSSB-U

Metric Sizes: • Series KSSB-U

Series KSSB-U

Series KSSB-U / American Standard Sizes

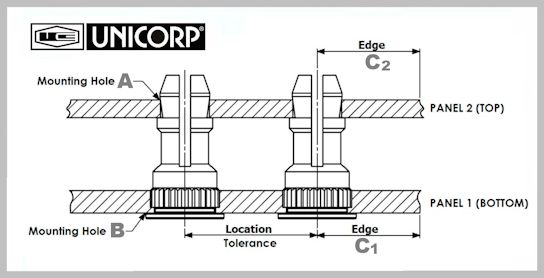

• Bottom Panel Material- PC Board • Top Panel Material- PC Board or Metal • Bottom Panel Min. Thickness- 0.050" • Top Panel Thickness Range- 0.040"-0.070" • Bottom Panel Min. Distance to Edge- 0.220" • Top Panel Min. Distance to Edge- 0.100" • Bottom Panel Max. Location Tolerance- 0.005" • Bottom Panel Max. Hardness- HRB 65 • Top Panel Max. Hardness- No Limit • Fastener Material- CDA-353 Brass

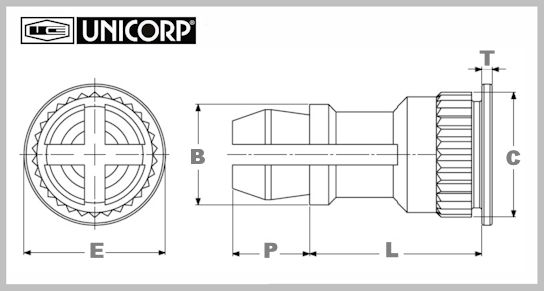

	Series KSSB-U American Standard Sizes (SAE)

Part
Number

"L"
Length

"A" Top
Mounting
Hole

"B" Bottom
Mounting
Hole

"B"

"C"

"E"

"P"

"T"

Mil-Spec

KSSB-156-8-U

0.250"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-10-U

0.312"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-12-U

0.375"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-14-U

0.437"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-16-U

0.500"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-18-U

0.562"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-20-U

0.625"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-24-U

0.750"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-28-U

0.875"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

KSSB-156-32-U

1.000"

0.156"

0.213"

0.188"

0.226"

0.250"

0.141"

0.020"

N/A

Series KSSB-U / Metric Sizes
• Bottom Panel Material- PC Board • Top Panel Material- PC Board or Metal • Bottom Panel Min. Thickness- 1.25 mm • Top Panel Thickness Range- 1.00 mm - 1.80 mm • Bottom Panel Min. Distance to Edge- 5.60 mm • Top Panel Min. Distance to Edge- 2.50 mm • Bottom Panel Max. Location Tolerance- 0.13 mm • Bottom Panel Max. Hardness- HRB 65 • Top Panel Max. Hardness- No Limit • Fastener Material- CDA-353 Brass
	Series KSSB-U Metric Sizes

Part
Number

"L"
Length

"A" Top
Mounting
Hole

"B" Bottom
Mounting
Hole

"B"

"C"

"E"

"P"

"T"

Mil-Spec

KSSB-4MM-8-U

8.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-10-U

10.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-12-U

12.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-14-U

14.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-16-U

16.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-18-U

18.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-20-U

20.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-22-U

22.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A

KSSB-4MM-25-U

25.00
mm

4.00
mm

5.40
mm

4.80
mm

5.74
mm

6.35
mm

3.58
mm

0.51
mm

N/A
