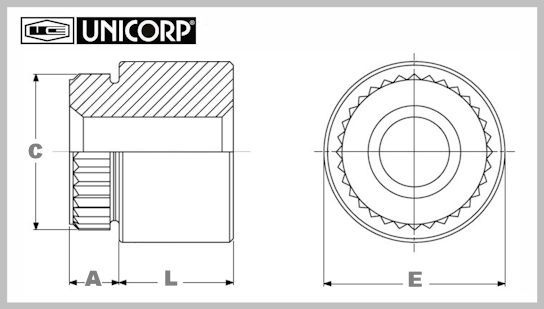

Unthreaded Broaching Standoffs KFE-U, KFSE-U

Self Clinching Fasteners • Fasteners for PC Boards
American Standard (Inches) & Metric Sizes

UNICORP Electronic Hardware Self-Clinching Fasteners - Unthreaded Broaching Standoffs KFE KFSE

• Self-clinching • Used for spacing or stacking components
• Unthreaded • Installed on PC boards

American Standard Sizes: • Series KFE-U • Series KFSE-U

Metric Sizes: • Series KFE-U • Series KFSE-U

Series KFE-U

Series KFE-U / American Standard Sizes
• "A" (Shank) Max.- 0.060" • Min. Sheet Thickness- 0.060" • Sheet Hardness- HRB 60 / HB 107 or Less • Fastener Material- Carbon Steel • Mil-Spec- N/A • "DT" Finish- Electro-Plated Matte-Tin per ASTM B 545, Class A with Clear Preservative Coating, Annealed • "ET" Finish- Electro-Plated Bright Tin per ASTM B545, Class B with Preservative Coating
	Series KFE-U American Standard Sizes (SAE)

Part
Number

Thru-Hole

"C"

"E"

"L"

Hole Size
in Sheet

Min.
Distance
to Edge

Part Numbers with "DT" Finish

KFE-116-4DT-U

0.116"

0.184"

0.219"

0.125"

0.166"

0.170"

KFE-116-8DT-U

0.116"

0.184"

0.219"

0.250"

0.166"

0.170"

KFE-116-12DT-U

0.116"

0.184"

0.219"

0.375"

0.166"

0.170"

KFE-116-16DT-U

0.116"

0.184"

0.219"

0.500"

0.166"

0.170"

KFE-116-20DT-U

0.116"

0.184"

0.219"

0.625"

0.166"

0.170"

KFE-116-24DT-U

0.116"

0.184"

0.219"

0.750"

0.166"

0.170"

KFE-143-4DT-U

0.143"

0.231"

0.281"

0.125"

0.213"

0.220"

KFE-143-8DT-U

0.143"

0.231"

0.281"

0.250"

0.213"

0.220"

KFE-143-12DT-U

0.143"

0.231"

0.281"

0.375"

0.213"

0.220"

KFE-143-16DT-U

0.143"

0.231"

0.281"

0.500"

0.213"

0.220"

KFE-143-20DT-U

0.143"

0.231"

0.281"

0.625"

0.213"

0.220"

KFE-143-24DT-U

0.143"

0.231"

0.281"

0.750"

0.213"

0.220"

KFE-143-28DT-U

0.143"

0.231"

0.281"

0.875"

0.213"

0.220"

KFE-143-32DT-U

0.143"

0.231"

0.281"

1.000"

0.213"

0.220"

Part Numbers with "ET" Finish

KFE-116-4ET-U

0.116"

0.184"

0.219"

0.125"

0.166"

0.170"

KFE-116-8ET-U

0.116"

0.184"

0.219"

0.250"

0.166"

0.170"

KFE-116-12ET-U

0.116"

0.184"

0.219"

0.375"

0.166"

0.170"

KFE-116-16ET-U

0.116"

0.184"

0.219"

0.500"

0.166"

0.170"

KFE-116-20ET-U

0.116"

0.184"

0.219"

0.625"

0.166"

0.170"

KFE-116-24ET-U

0.116"

0.184"

0.219"

0.750"

0.166"

0.170"

KFE-143-4ET-U

0.143"

0.231"

0.281"

0.125"

0.213"

0.220"

KFE-143-8ET-U

0.143"

0.231"

0.281"

0.250"

0.213"

0.220"

KFE-143-12ET-U

0.143"

0.231"

0.281"

0.375"

0.213"

0.220"

KFE-143-16ET-U

0.143"

0.231"

0.281"

0.500"

0.213"

0.220"

KFE-143-20ET-U

0.143"

0.231"

0.281"

0.625"

0.213"

0.220"

KFE-143-24ET-U

0.143"

0.231"

0.281"

0.750"

0.213"

0.220"

KFE-143-28ET-U

0.143"

0.231"

0.281"

0.875"

0.213"

0.220"

KFE-143-32ET-U

0.143"

0.231"

0.281"

1.000"

0.213"

0.220"

Series KFE-U / Metric Sizes
• "A" (Shank) Max.- 1.53 mm • Min. Sheet Thickness- 1.53 mm • Sheet Hardness- HRB 60 / HB 107 or Less • Fastener Material- Carbon Steel • Mil-Spec- N/A • "DT" Finish- Electro-Plated Matte-Tin per ASTM B 545, Class A with Clear Preservative Coating, Annealed • "ET" Finish- Electro-Plated Bright Tin per ASTM B545, Class B with Preservative Coating
	Series KFE-U Metric Sizes

Part
Number

Thru-Hole

"C"

"E"

"L"

Hole Size
in Sheet

Min.
Distance
to Edge

Part Numbers with "DT" Finish

KFE-3.6-3DT-U

3.60
mm

5.87
mm

7.14
mm

3.00
mm

5.41
mm

5.50
mm

KFE-3.6-4DT-U

3.60
mm

5.87
mm

7.14
mm

4.00
mm

5.41
mm

5.50
mm

KFE-3.6-6DT-U

3.60
mm

5.87
mm

7.14
mm

6.00
mm

5.41
mm

5.50
mm

KFE-3.6-8DT-U

3.60
mm

5.87
mm

7.14
mm

8.00
mm

5.41
mm

5.50
mm

KFE-3.6-10DT-U

3.60
mm

5.87
mm

7.14
mm

10.00
mm

5.41
mm

5.50
mm

KFE-3.6-12DT-U

3.60
mm

5.87
mm

7.14
mm

12.00
mm

5.41
mm

5.50
mm

KFE-3.6-14DT-U

3.60
mm

5.87
mm

7.14
mm

14.00
mm

5.41
mm

5.50
mm

KFE-3.6-16DT-U

3.60
mm

5.87
mm

7.14
mm

16.00
mm

5.41
mm

5.50
mm

KFE-4.2-3DT-U

4.20
mm

6.86
mm

8.74
mm

3.00
mm

6.40
mm

7.10
mm

KFE-4.2-4DT-U

4.20
mm

6.86
mm

8.74
mm

4.00
mm

6.40
mm

7.10
mm

KFE-4.2-6DT-U

4.20
mm

6.86
mm

8.74
mm

6.00
mm

6.40
mm

7.10
mm

KFE-4.2-8DT-U

4.20
mm

6.86
mm

8.74
mm

8.00
mm

6.40
mm

7.10
mm

KFE-4.2-10DT-U

4.20
mm

6.86
mm

8.74
mm

10.00
mm

6.40
mm

7.10
mm

KFE-4.2-12DT-U

4.20
mm

6.86
mm

8.74
mm

12.00
mm

6.40
mm

7.10
mm

KFE-4.2-14DT-U

4.20
mm

6.86
mm

8.74
mm

14.00
mm

6.40
mm

7.10
mm

KFE-4.2-16DT-U

4.20
mm

6.86
mm

8.74
mm

16.00
mm

6.40
mm

7.10
mm

Part Numbers with "ET" Finish

KFE-3.6-3ET-U

3.60
mm

5.87
mm

7.14
mm

3.00
mm

5.41
mm

5.50
mm

KFE-3.6-4ET-U

3.60
mm

5.87
mm

7.14
mm

4.00
mm

5.41
mm

5.50
mm

KFE-3.6-6ET-U

3.60
mm

5.87
mm

7.14
mm

6.00
mm

5.41
mm

5.50
mm

KFE-3.6-8ET-U

3.60
mm

5.87
mm

7.14
mm

8.00
mm

5.41
mm

5.50
mm

KFE-3.6-10ET-U

3.60
mm

5.87
mm

7.14
mm

10.00
mm

5.41
mm

5.50
mm

KFE-3.6-12ET-U

3.60
mm

5.87
mm

7.14
mm

12.00
mm

5.41
mm

5.50
mm

KFE-3.6-14ET-U

3.60
mm

5.87
mm

7.14
mm

14.00
mm

5.41
mm

5.50
mm

KFE-3.6-16ET-U

3.60
mm

5.87
mm

7.14
mm

16.00
mm

5.41
mm

5.50
mm

KFE-4.2-3ET-U

4.20
mm

6.86
mm

8.74
mm

3.00
mm

6.40
mm

7.10
mm

KFE-4.2-4ET-U

4.20
mm

6.86
mm

8.74
mm

4.00
mm

6.40
mm

7.10
mm

KFE-4.2-6ET-U

4.20
mm

6.86
mm

8.74
mm

6.00
mm

6.40
mm

7.10
mm

KFE-4.2-8ET-U

4.20
mm

6.86
mm

8.74
mm

8.00
mm

6.40
mm

7.10
mm

KFE-4.2-10ET-U

4.20
mm

6.86
mm

8.74
mm

10.00
mm

6.40
mm

7.10
mm

KFE-4.2-12ET-U

4.20
mm

6.86
mm

8.74
mm

12.00
mm

6.40
mm

7.10
mm

KFE-4.2-14ET-U

4.20
mm

6.86
mm

8.74
mm

14.00
mm

6.40
mm

7.10
mm

KFE-4.2-16ET-U

4.20
mm

6.86
mm

8.74
mm

16.00
mm

6.40
mm

7.10
mm

Series KFSE-U

Series KFSE-U / American Standard Sizes
• "A" (Shank) Max.- 0.060" • Min. Sheet Thickness- 0.060" • Sheet Hardness- HRB 70 / HB 125 or Less • Fastener Material- 300 Series Stainless Steel • Mil-Spec- N/A • Finish- Passivated per ASTM A380
	Series KFSE-U American Standard Sizes (SAE)

Part
Number

Thru-Hole

"C"

"E"

"L"

Hole Size
in Sheet

Min.
Distance
to Edge

KFSE-116-4-U

0.116"

0.184"

0.219"

0.125"

0.166"

0.170"

KFSE-116-8-U

0.116"

0.184"

0.219"

0.250"

0.166"

0.170"

KFSE-116-12-U

0.116"

0.184"

0.219"

0.375"

0.166"

0.170"

KFSE-116-16-U

0.116"

0.184"

0.219"

0.500"

0.166"

0.170"

KFSE-116-20-U

0.116"

0.184"

0.219"

0.625"

0.166"

0.170"

KFSE-116-24-U

0.116"

0.184"

0.219"

0.750"

0.166"

0.170"

KFSE-143-4-U

0.143"

0.231"

0.281"

0.125"

0.213"

0.220"

KFSE-143-8-U

0.143"

0.231"

0.281"

0.250"

0.213"

0.220"

KFSE-143-12-U

0.143"

0.231"

0.281"

0.375"

0.213"

0.220"

KFSE-143-16-U

0.143"

0.231"

0.281"

0.500"

0.213"

0.220"

KFSE-143-20-U

0.143"

0.231"

0.281"

0.625"

0.213"

0.220"

KFSE-143-24-U

0.143"

0.231"

0.281"

0.750"

0.213"

0.220"

KFSE-143-28-U

0.143"

0.231"

0.281"

0.875"

0.213"

0.220"

KFSE-143-32-U

0.143"

0.231"

0.281"

1.000"

0.213"

0.220"


Series KFSE-U / Metric Sizes
• "A" (Shank) Max.- 1.53 mm • Min. Sheet Thickness- 1.53 mm • Sheet Hardness- HRB 70 / HB 125 or Less • Fastener Material- 300 Series Stainless Steel • Mil-Spec- N/A • Finish- Passivated per ASTM A380
	Series KFSE-U Metric Sizes

Part
Number

Thru-Hole

"C"

"E"

"L"

Hole Size
in Sheet

Min.
Distance
to Edge

KFSE-3.6-3-U

3.60
mm

5.87
mm

7.14
mm

3.00
mm

5.41
mm

5.50
mm

KFSE-3.6-4-U

3.60
mm

5.87
mm

7.14
mm

4.00
mm

5.41
mm

5.50
mm

KFSE-3.6-6-U

3.60
mm

5.87
mm

7.14
mm

6.00
mm

5.41
mm

5.50
mm

KFSE-3.6-8-U

3.60
mm

5.87
mm

7.14
mm

8.00
mm

5.41
mm

5.50
mm

KFSE-3.6-10-U

3.60
mm

5.87
mm

7.14
mm

10.00
mm

5.41
mm

5.50
mm

KFSE-3.6-12-U

3.60
mm

5.87
mm

7.14
mm

12.00
mm

5.41
mm

5.50
mm

KFSE-3.6-14-U

3.60
mm

5.87
mm

7.14
mm

14.00
mm

5.41
mm

5.50
mm

KFSE-3.6-16-U

3.60
mm

5.87
mm

7.14
mm

16.00
mm

5.41
mm

5.50
mm

KFSE-4.2-3-U

4.20
mm

6.86
mm

8.74
mm

3.00
mm

6.40
mm

7.10
mm

KFSE-4.2-4-U

4.20
mm

6.86
mm

8.74
mm

4.00
mm

6.40
mm

7.10
mm

KFSE-4.2-6-U

4.20
mm

6.86
mm

8.74
mm

6.00
mm

6.40
mm

7.10
mm

KFSE-4.2-8-U

4.20
mm

6.86
mm

8.74
mm

8.00
mm

6.40
mm

7.10
mm

KFSE-4.2-10-U

4.20
mm

6.86
mm

8.74
mm

10.00
mm

6.40
mm

7.10
mm

KFSE-4.2-12-U

4.20
mm

6.86
mm

8.74
mm

12.00
mm

6.40
mm

7.10
mm

KFSE-4.2-14-U

4.20
mm

6.86
mm

8.74
mm

14.00
mm

6.40
mm

7.10
mm

KFSE-4.2-16-U

4.20
mm

6.86
mm

8.74
mm

16.00
mm

6.40
mm

7.10
mm
