Standard Nuts  H-U,  HN-U

Self Clinching Fasteners  •  Nuts For Sheet Metal
American Standard (Inches) & Metric Sizes
• Self-clinching    • Available in heat-treated and non-heat-treated steel    • Available in non-locking and self-locking
• Installed quickly and easily     • More cost effective than weld nuts
American Standard Sizes:   • Series H-U    • Series HN-U
Metric Sizes:   • Series H-U    • Series HN-U
Series  H-U
Series  H-U  /  American Standard Sizes
      • Shape-  Round
      • Sheet Hardness-  HRB 80 / HB 150 or Less
      • Material-  Heat-Treated Carbon Steel
      • Type-  Non-Locking H
      • Min. Sheet Thickness-  0.058"
      • *Zinc Clear Plated per ASTM B633
Series H-U
American Standard Sizes
(SAE)

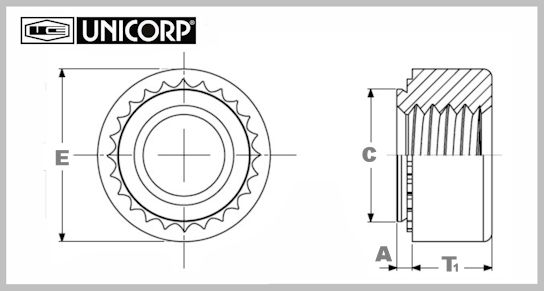

Part
Number		 Thread "A"
(Shank)
Max.		 "T1"
Head
Height		 "E"
Head
Diameter		 "C" Max.
Body
Diameter		 Hole
Size in
Sheet		 Min.
Distance
to Edge		 Finish Mil-Spec
H-0616-ZI-U 3/8-16 0.058" 0.300" 0.650" 0.499" 0.500" 0.480" *Zinc Clear N/A
H-0616-X-U 3/8-16 0.058" 0.300" 0.650" 0.499" 0.500" 0.480" None N/A
Series  H-U  /  Metric Sizes
      • Shape-  Round
      • Sheet Hardness-  HRB 80 / HB 150 or Less
      • Material-  Heat-Treated Carbon Steel
      • Type-  Non-Locking H
      • Min. Sheet Thickness-  1.48mm
      • *Zinc Clear Plated per ASTM B633
Series H-U
Metric Sizes
Part
Number		 Thread "A"
(Shank)
Max.		 "T1"
Head
Height		 "E"
Head
Diameter		 "C" Max.
Body
Diameter		 Hole
Size in
Sheet		 Min.
Distance
to Edge		 Finish Mil-Spec
H-M10-ZI-U M10 x 1.5 1.48
mm		 7.90
mm		 16.50
mm		 12.67
mm		 12.70
mm		 12.00
mm		 *Zinc Clear N/A
H-M10-X-U M10 x 1.5 1.48
mm		 7.90
mm		 16.50
mm		 12.67
mm		 12.70
mm		 12.00
mm		 None N/A
Series  HN-U
Series  HN-U  /  American Standard Sizes
      • Shape-  Round
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Material-  Carbon Steel
      • Type-  Non-Locking HN
      • Min. Sheet Thickness-  0.058"
      • *Zinc Clear Plated per ASTM B633
Series HN-U
American Standard Sizes
(SAE)
Part
Number		 Thread "A"
(Shank)
Max.		 "T1"
Head
Height		 "E"
Head
Diameter		 "C" Max.
Body
Diameter		 Hole
Size in
Sheet		 Min.
Distance
to Edge		 Finish Mil-Spec
HN-0616-ZI-U 3/8-16 0.058" 0.300" 0.650" 0.499" 0.500" 0.480" *Zinc Clear N/A
HN-0616-X-U 3/8-16 0.058" 0.300" 0.650" 0.499" 0.500" 0.480" None N/A
Series  HN-U  /  Metric Sizes
      • Shape-  Round
      • Sheet Hardness-  HRB 60 / HB 107 or Less
      • Material-  Carbon Steel
      • Type-  Non-Locking HN
      • Min. Sheet Thickness-  1.48mm
      • *Zinc Clear Plated per ASTM B633
Series HN-U
Metric Sizes
Part
Number		 Thread "A"
(Shank)
Max.		 "T1"
Head
Height		 "E"
Head
Diameter		 "C" Max.
Body
Diameter		 Hole
Size in
Sheet		 Min.
Distance
to Edge		 Finish Mil-Spec
HN-M10-ZI-U M10 x 1.5 1.48
mm		 7.90
mm		 16.50
mm		 12.67
mm		 12.70
mm		 12.00
mm		 *Zinc Clear N/A
HN-M10-X-U M10 x 1.5 1.48
mm		 7.90
mm		 16.50
mm		 12.67
mm		 12.70
mm		 12.00
mm		 None N/A
